[NLRS] Those wind profiler 222 beams that were available back when...

Bruce Richardson w9fz at w9fz.com
Mon Jul 6 22:43:10 EDT 2020


Looking through antennas (in the barn), I find two or 3 antennas that are
not easy for me to identify.

I was told by the previous owner that one of them was the "222 wind profiler
antennas" that were available back 15 years ago or so.

How many elements did those antennas have?  I've got a stout/beefy 6 element
that I think is the one but I want to be sure.
http://w9fz.com/tower/profiler_223_vertical_1.jpg

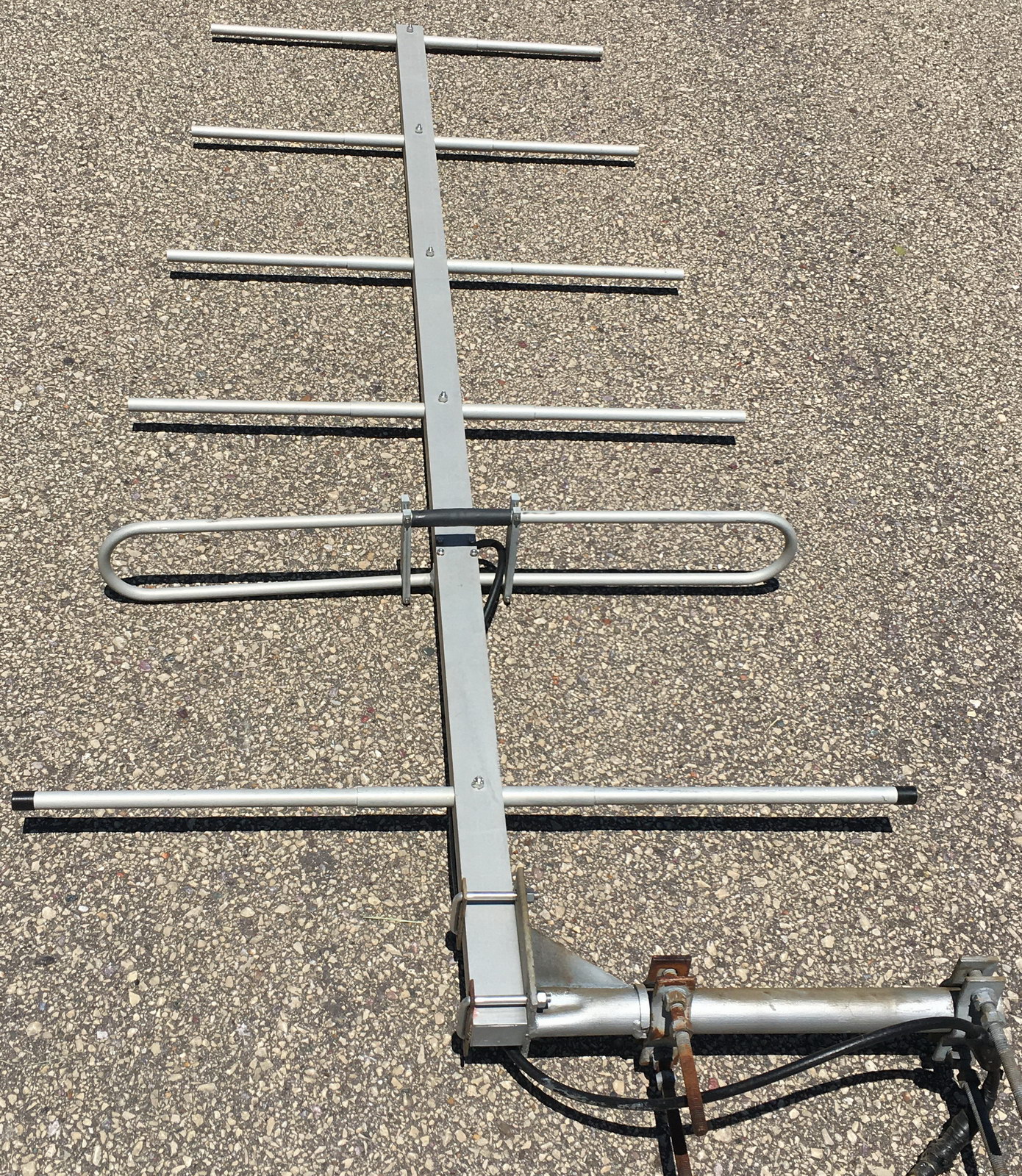

http://w9fz.com/tower/profiler_223_vertical_b_1.jpg

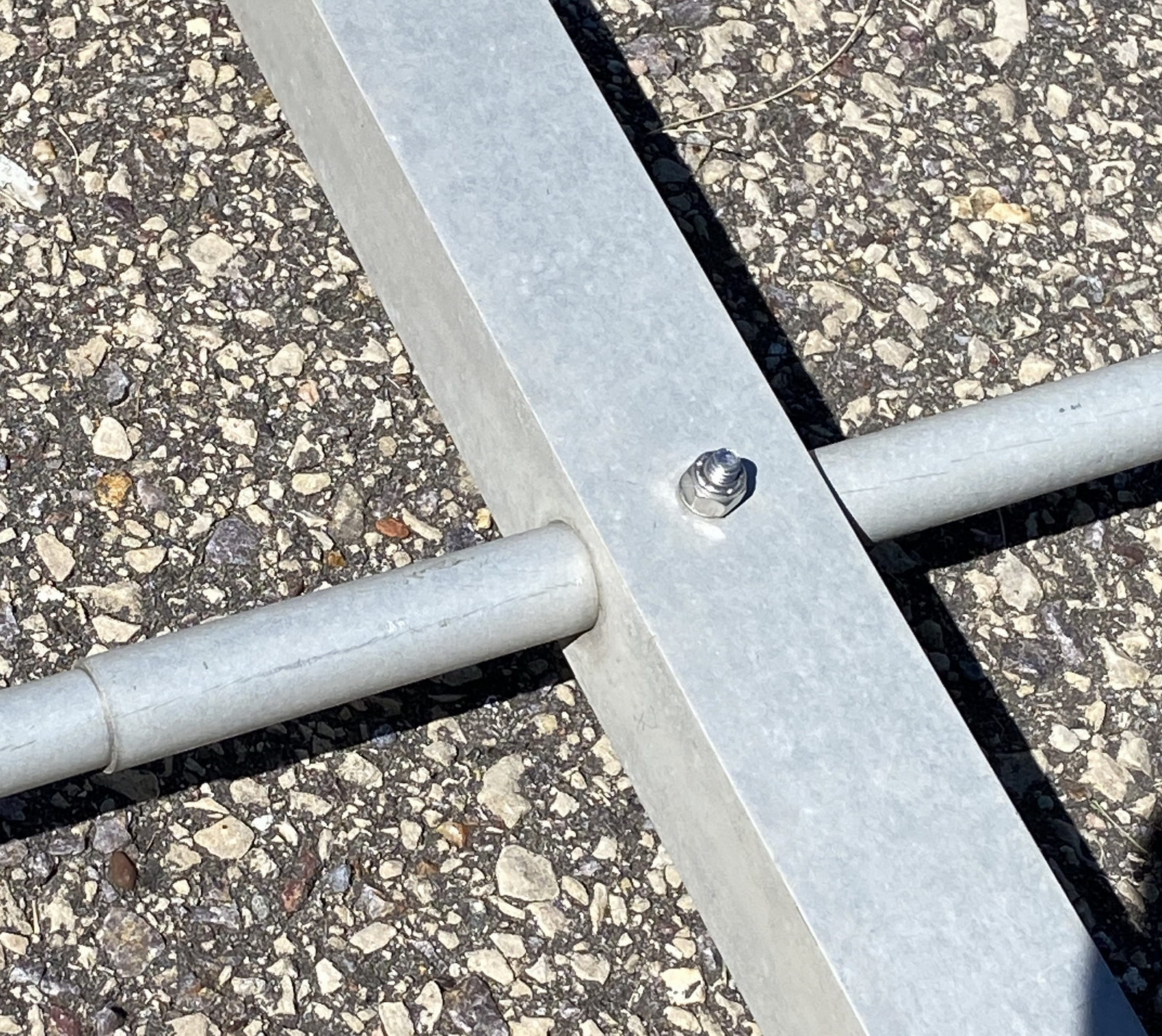

http://w9fz.com/tower/profiler_detail_1.jpg

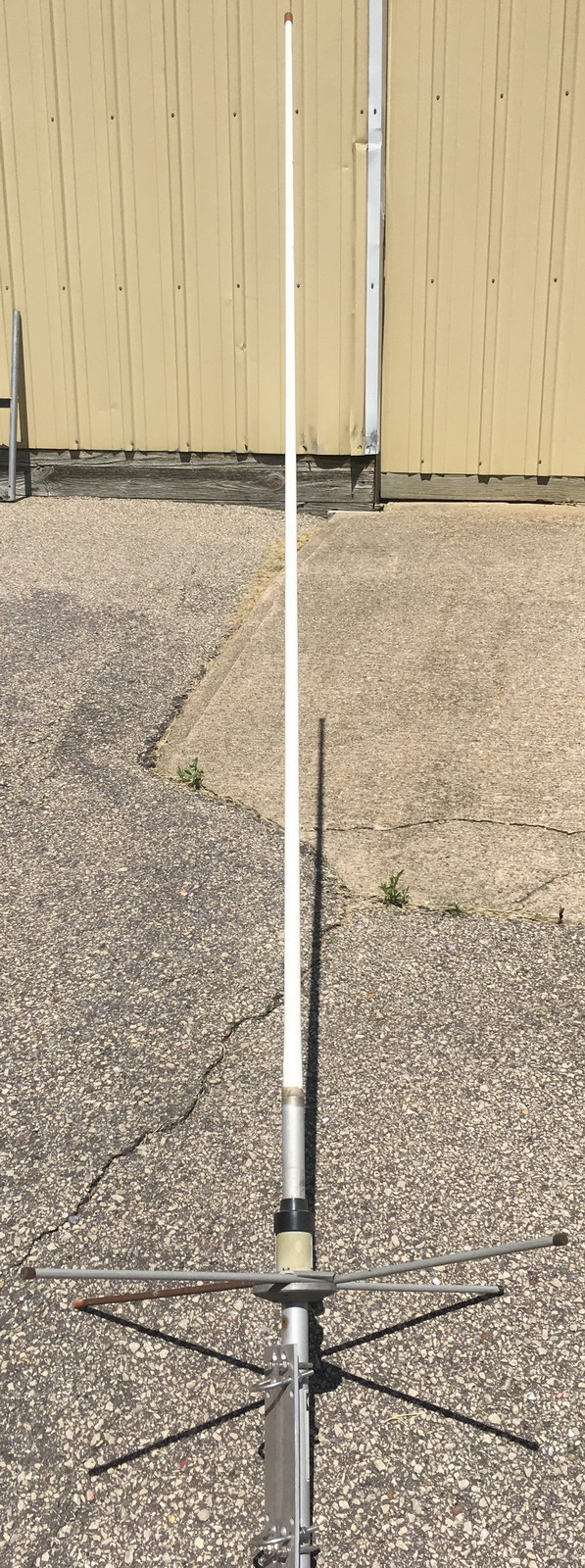

Two other antennas I can't identify. A UHF vertical that I have not measured
with an analyzer.
http://w9fz.com/tower/uhf_vertical_1.jpg

I think this is a 223 antenna, but not sure:

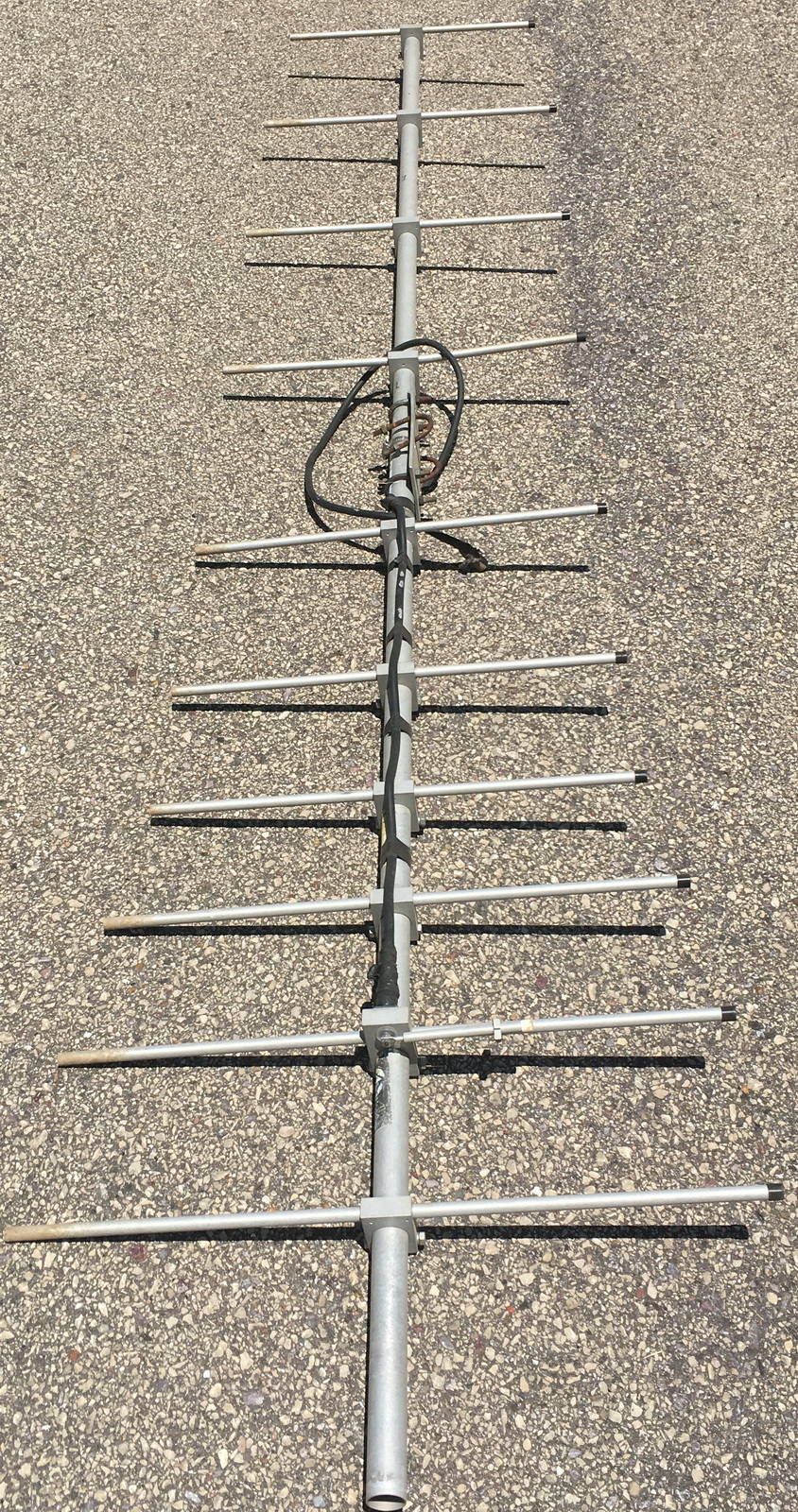

http://w9fz.com/tower/223_vert_beam_1.jpg
http://w9fz.com/tower/223_vert_beam_b_1.jpg

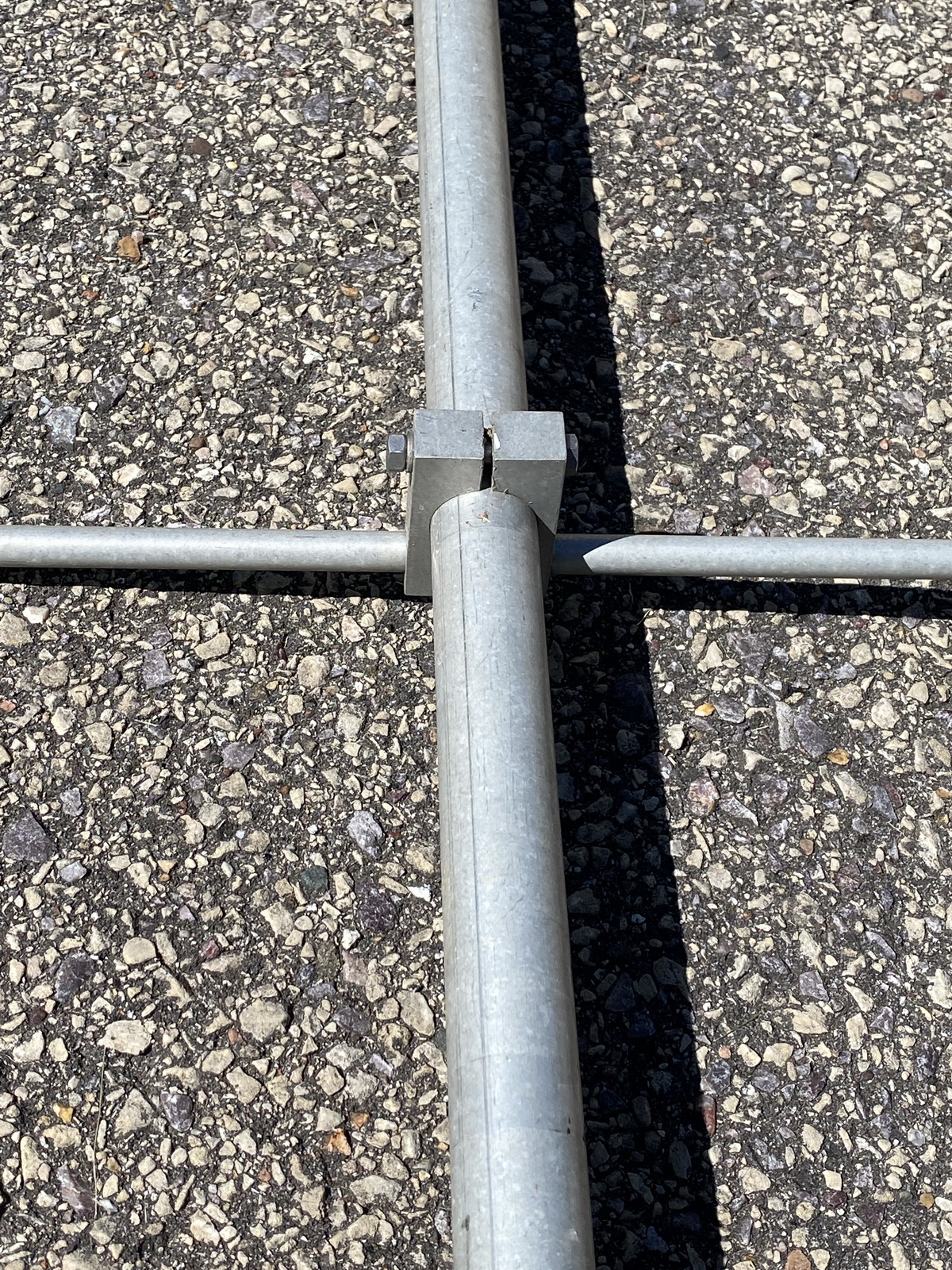

http://w9fz.com/tower/223_vert_beam_detail_1.jpg

Any thoughts on these three?  Thanks for looking.
73
Bruce W9FZ
