[MVMA] Signal .vs. channel on 5 GHz band

[William Curtice]

Wow!    I wonder if the Ubiquiti stuff does any better.

I'm under the impression that SDR's, at least my HackRF, are inherently
flat, at least over that frequency range; I wonder if there is a band pass
filter on the Mikrotik units that is intentionally causes that roll-off.

Bill

On Wed, Apr 28, 2021, 9:07 AM Chuck Gelm <nc8q-mesh at gelm.net> wrote:

>
> Equipment is a pair of Mikrotik RB-LHG-HP5-XL dishes.
>

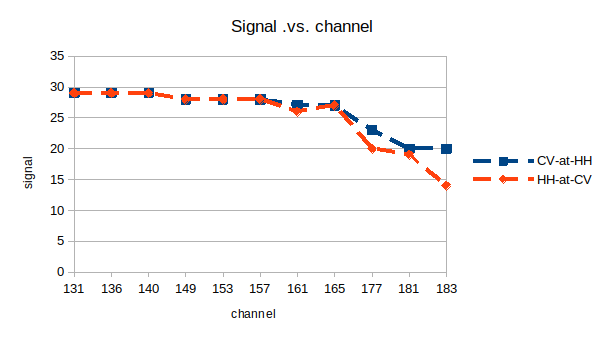

> Comparing the Centerville to Huber Heights link signal at
> maximum power across the AREDN channel range.
>
> There is a 9 to 15 dB drop as the channel approaches highest
> part 97 exclusive area.
>
