[MVMA] MVMA zoom meeting 2020/06/13 notes

[Chuck Gelm]

On 6/14/20 7:55 AM, Chuck Gelm wrote:
> Attendees: Chuck NC8Q, Fred W8LLY, Larry KB8EMD, Henry W8HJR, F. Brock
> Fowler KD8TNV (Cincinnati), JJ N8JJ, Glenn KD8TSR.
>
> MVHS workshop Wednesday 09:00; Chuck and Bill. Open: Come and join and
> learn/advise/help. Maybe 147.045 (?simplex). May need face covering.
> Contact us for logistics.
>
> KF8J/QZZ/NorthXenia workshop: week of 6/22-6/26. Bill is point of
> contact. I am unavailable through 6/24.
> One of the LGH-5HP-XLs is needed at this workshop.
>
> I am working on profiles at sites: KAS, W8LRJ, N8ADO, W8HJR, KD8TEK,
> KD8UQI, KD8VIG.
>
> Early assumptions:
>
> Knollwood FS <> N8ADO/W8LRJ is a no brainer. Also N8ADO/W8LRJ lay
> in-between KAS<>KnollwoodFS.
>
> KD8UQI is very close to WA8APB (~1 mile) and in-between WA8APB and
> Blue Tank.
>
> W8HJR is 'down by the river' and best choice may be with KAS.
>
> Later I will review KD8VIG and KD8TEK profiles.
>
> Here is a re-post of a suggestion for Blue Tank (3x SXTs and a power
> switch):
> If you are on the mesh:
> http://nc8q-mesh-server.local.mesh/mesh/images/2020/04/
> I may later post on miamivalleymesh.com
>
> Chuck
>
>
>

So, I likely have posted statements and profiles concerning 'Knollwood
Fire Station' that are in error.
I got 'Knollwood FS' and 'Indian Ripple FS' confused/intermingled.
John W8LRJ helped me get this understood. Thanks John.

  I have recently created profiles among MVHS, and Beavercreek Fire
Stations 61, 62, 63, and 64.
It seems that RF links are easily possible from
  MVHS<>FS64 (Indian Ripple),
  FS64 (Indian Ripple)<>FS63 (Knollwood), and
  FS63 (Knollwood)<>FS62 (Kemp).

  If a point-to-point link was established from MVHS to FS64 (Indian
Ripple):

  John W8LRJ and Bob N8ADO are a "stone's throw" from FS64.
Even better than John and Bob each linking on the same frequency to FS64,
one of them could set up 2 nodes with the 2nd node establishing a link
between John and Bob.

  I suggest using Mikrotik RBSXTsq5nD devices to link.
Let us compare an existing RBSXTsq5nD link at 6.2 miles to the proposed
MVHS-FS64 profile:

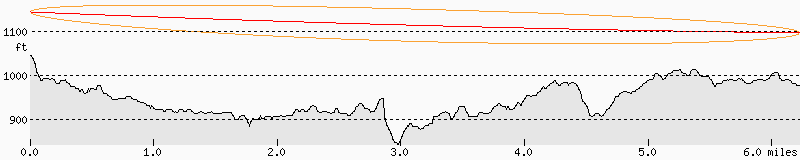

PP<>MVHS exiting link:
PP<>MVHS
-----

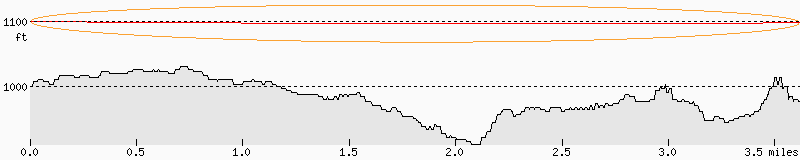

and below is the (much shorter) proposed link from FS64-to-MVHS:
FS64<>MVHS




--
