[MVMA] Received from Mark Atwell: Fibre optic media converter system

[Moe]

On 9/12/19 6:33 AM, Chuck Gelm wrote:
> Next; install this equipment at the DARA radio room.
> Between what and what should this system be inserted?
>
> Chuck

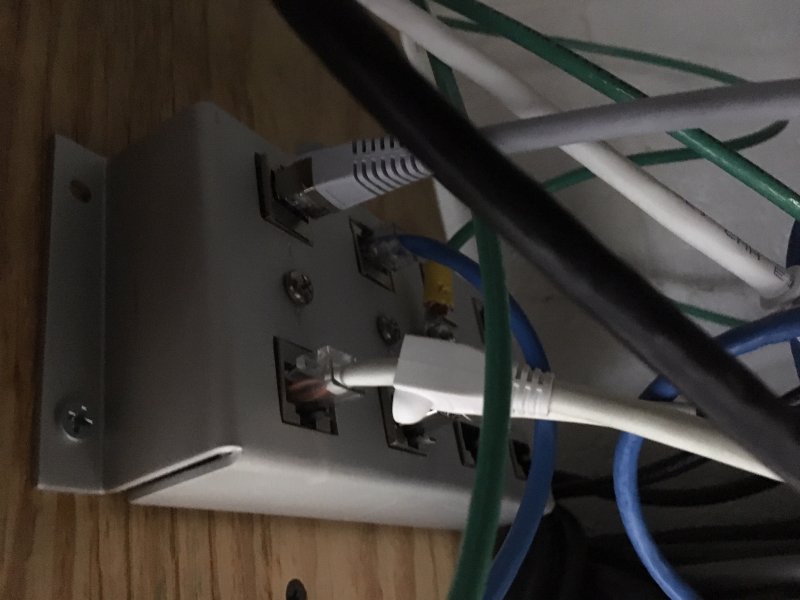

The internet cable from DARA plugs into an L-Com surge suppressor.
It's plug cover is slid back on the wire.
Unplug that and plug it into one of the transceivers.
Use a jumper to plug the other transceiver into the L-Com.

There are a couple of open outlets on the power strip but if these
transceivers use wall warts, you will need a?? couple of 6-inch or so
extension cords to get the wall warts away from the power strip.
