[MVMA] Is there only one non-shared channel on 2.4 GHz?

[Chuck Gelm]

Reference:

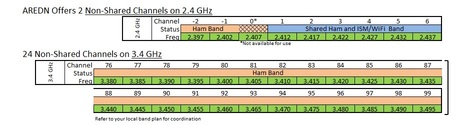

https://www.arednmesh.org/sites/all/themes/danland/images/slideshows/IMG_2.3_Channels.v5.jpg

channels
"AREDN offers 2 non-shared channels on 2.4 GHz"

  I have seen this mentioned in several places, that AREDN offers 2
non-shared channels on 2.4 GHz.
I see one non-shared channel and one half shared channel:
(View below in fixed-width font)

Legend: Channel at bandwidth

|________________Amateur_Radio_Allocation___________________|
++..|...-2...-1....0....1....2....3....4....5....6....7....8...++
  2392 2397 2402 2407 2412 2417 2422 2427 2432 2437 2442 2447 2452 MHz
     | -2 @ 10 |______ 1 @ 20 _____|    |_____  6 @ 20 MHz _|

       |-2 at 5*|-1 at 5| *
*|______ 1 @ 20 _____|**
*

It seems to me that the top half of channel '-1' is shared with the
lower half of channel '1'.

I see 1 non-shared channel on 2.4 GHz @ either 5 or 10 MHz bandwidth.

Chuck
