[MVMA] Omni Scans

[Maurice Riggins]

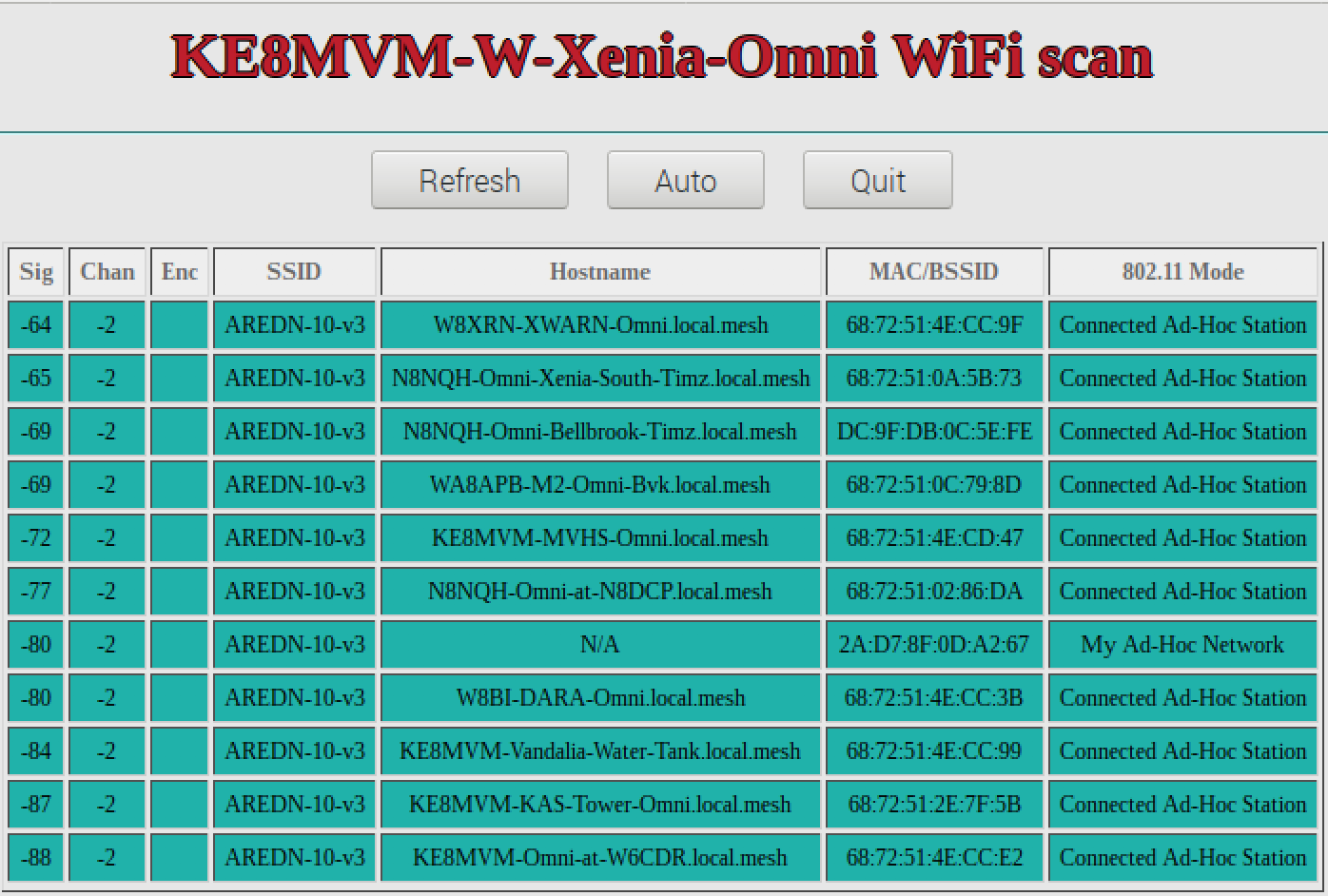

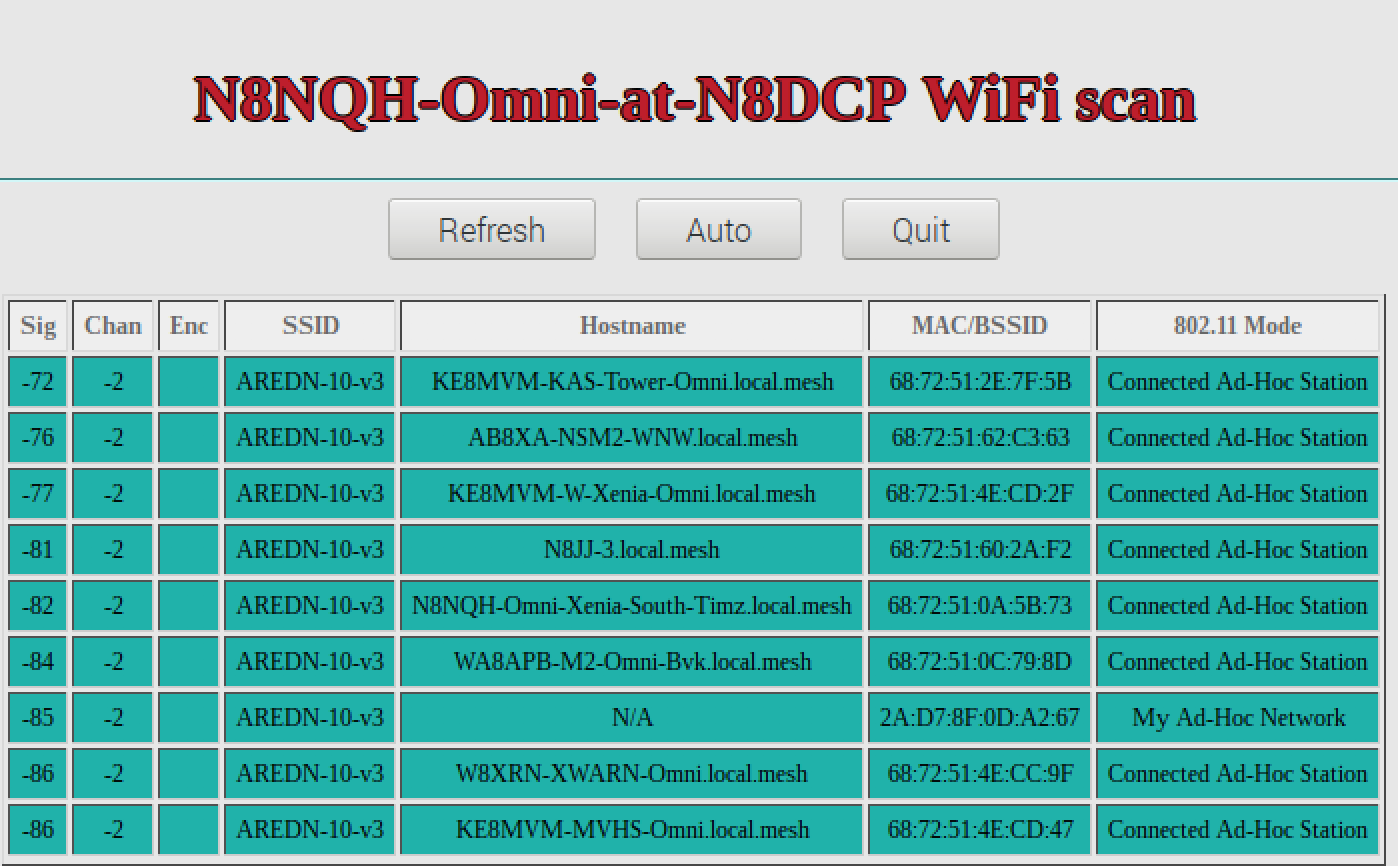

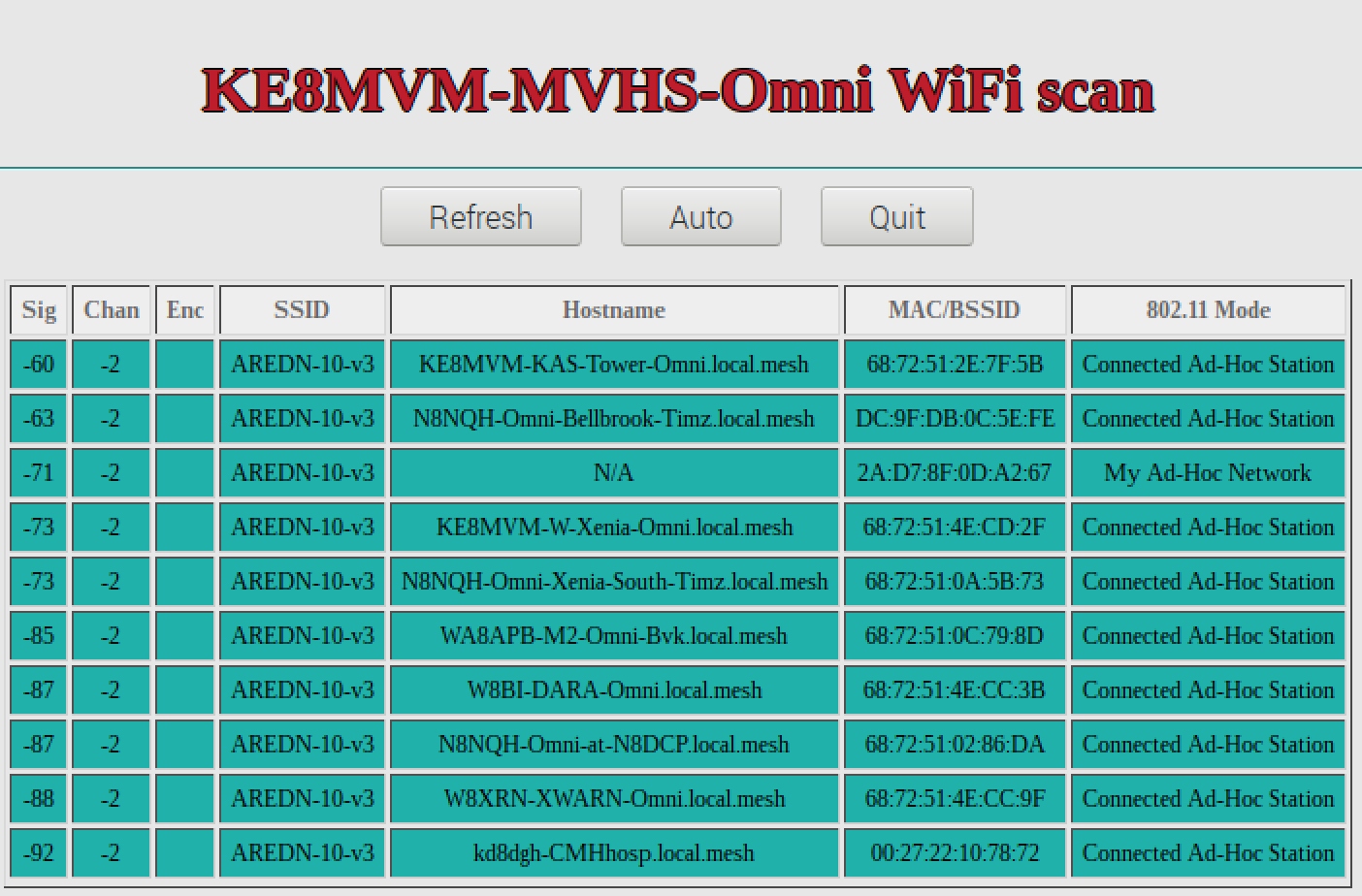

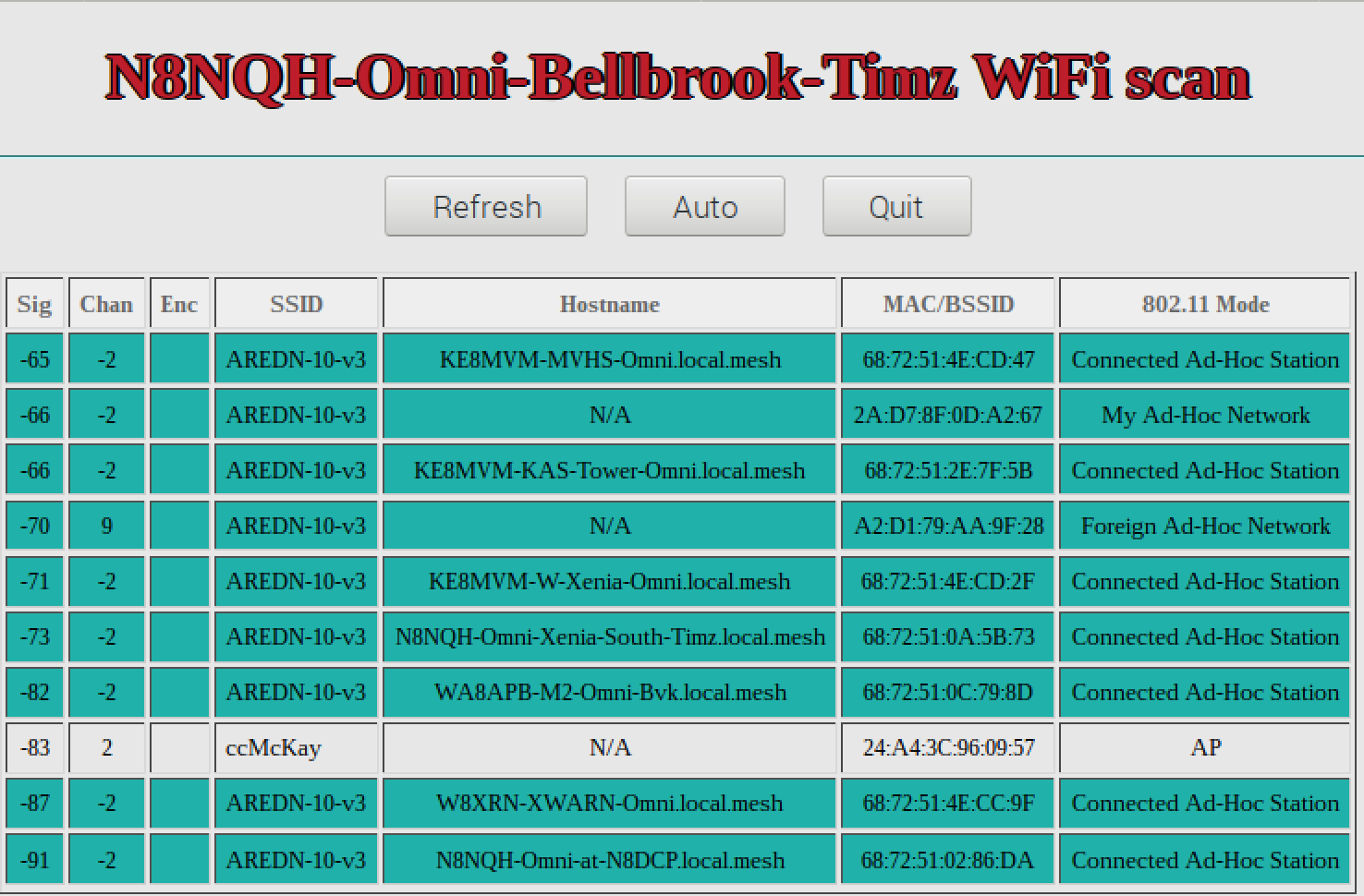

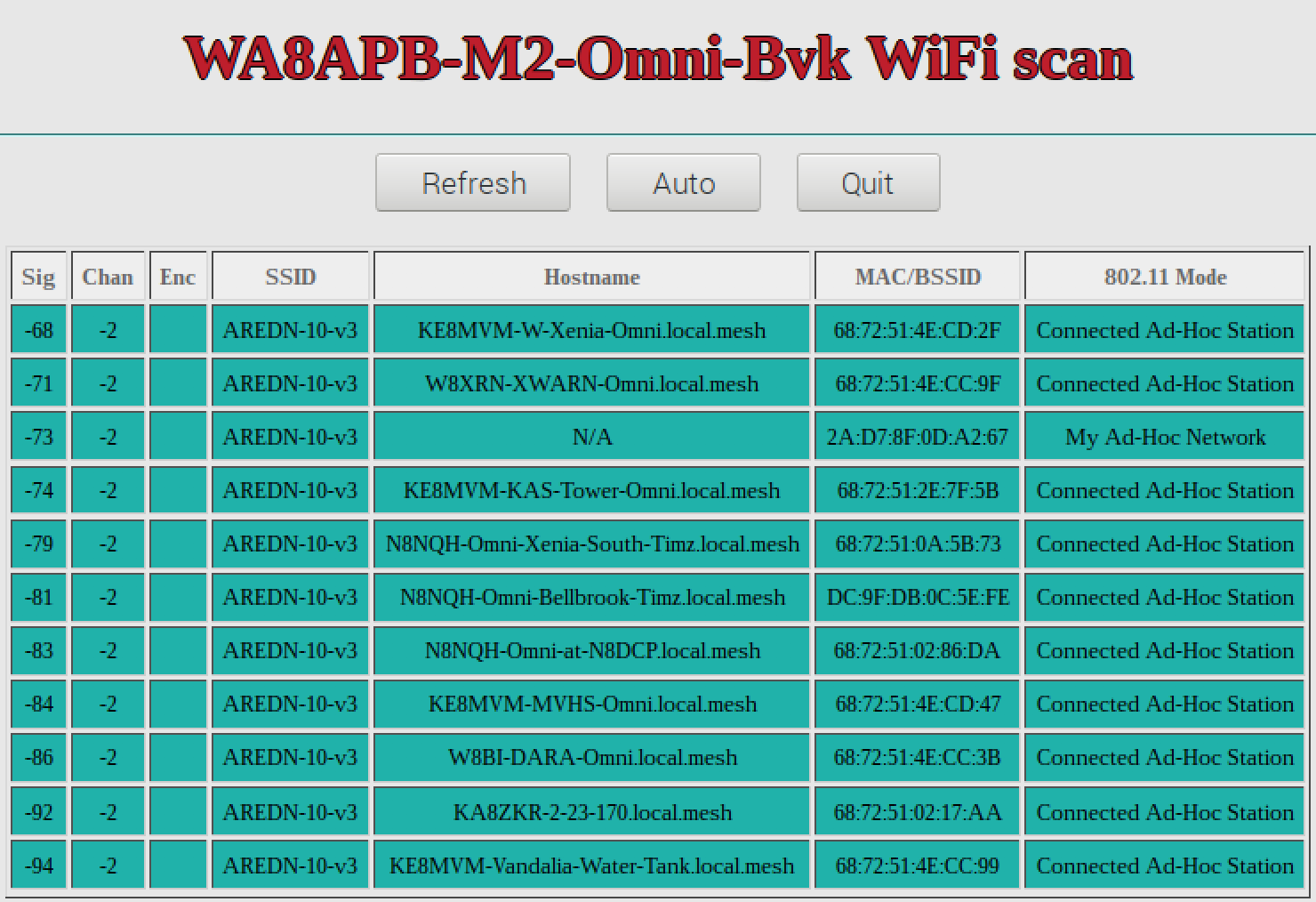

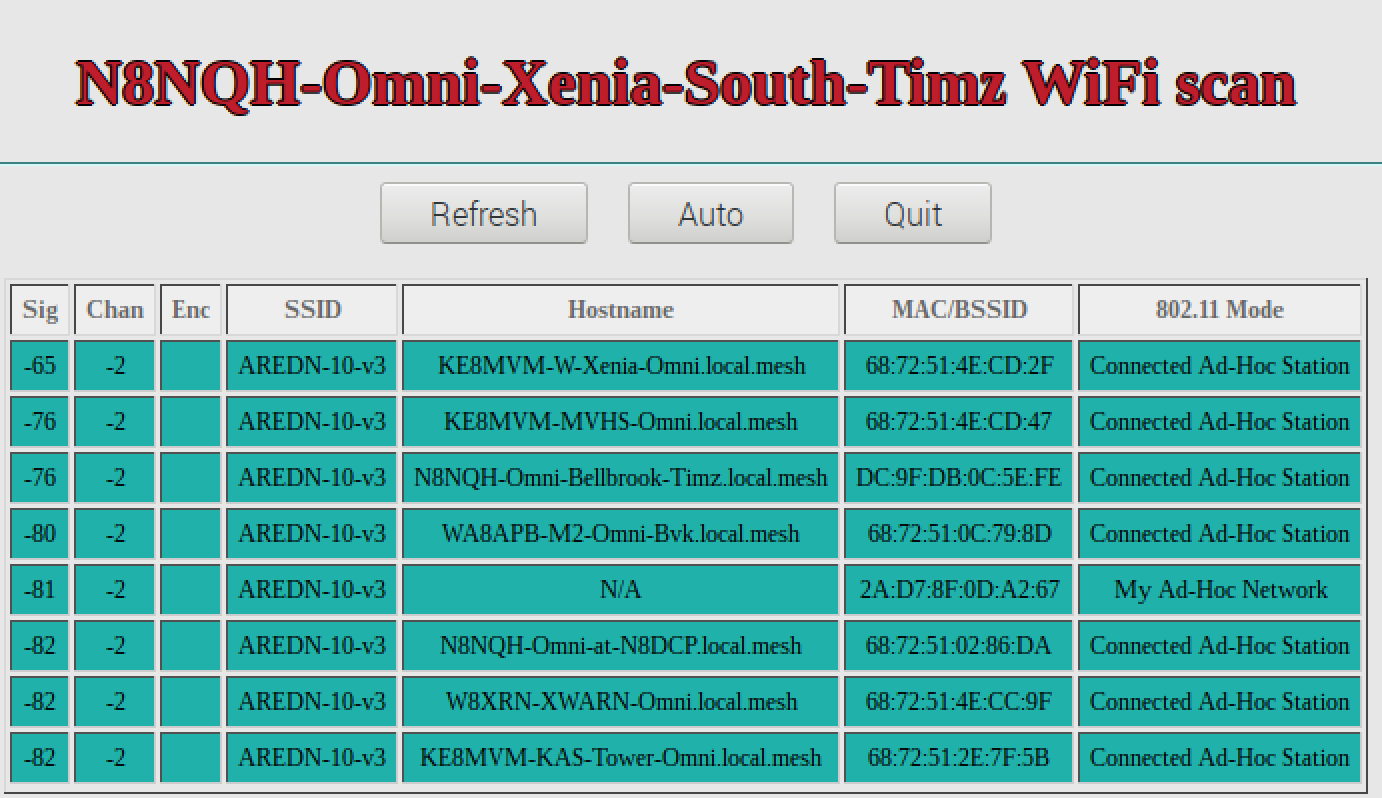

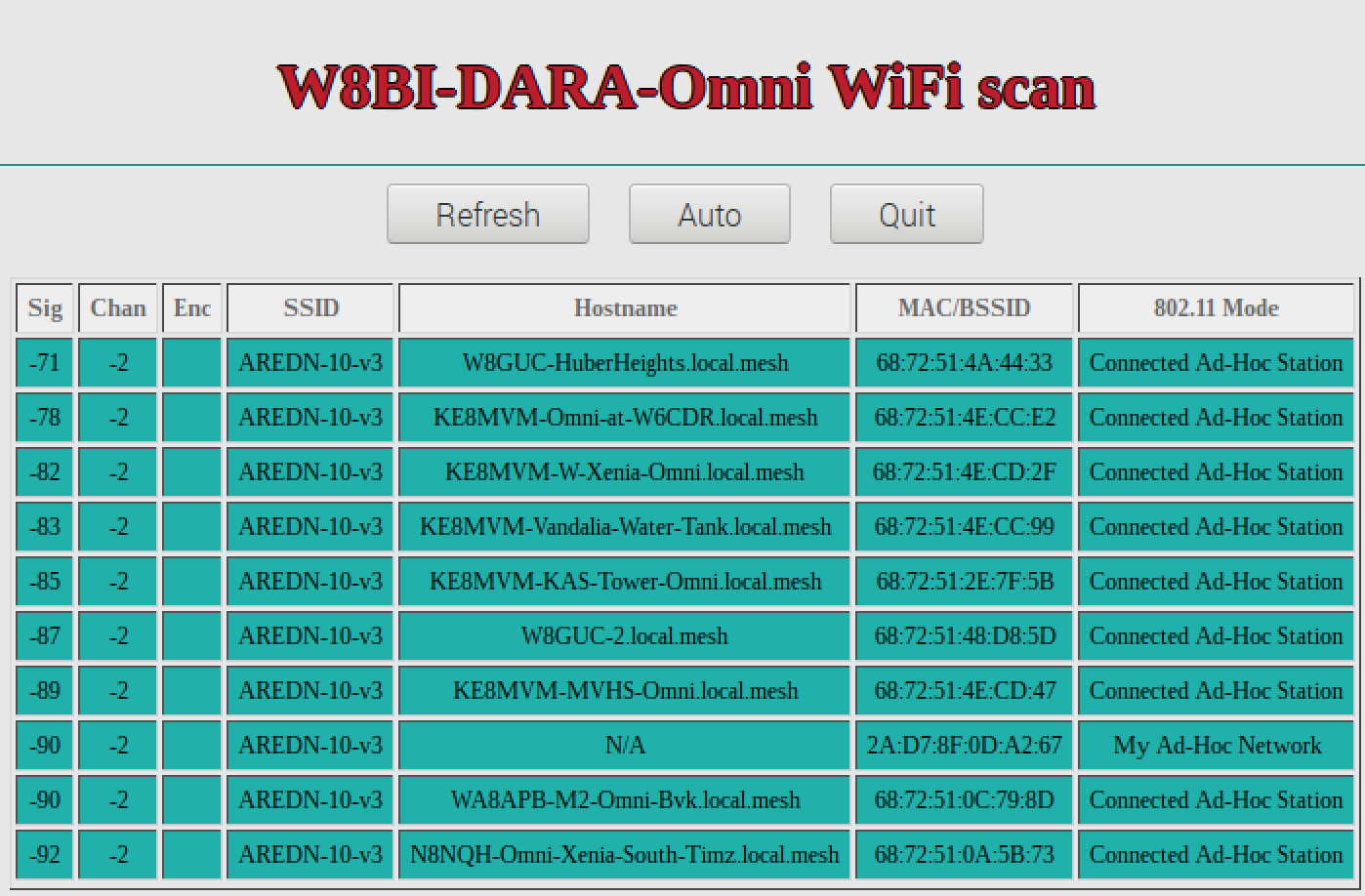

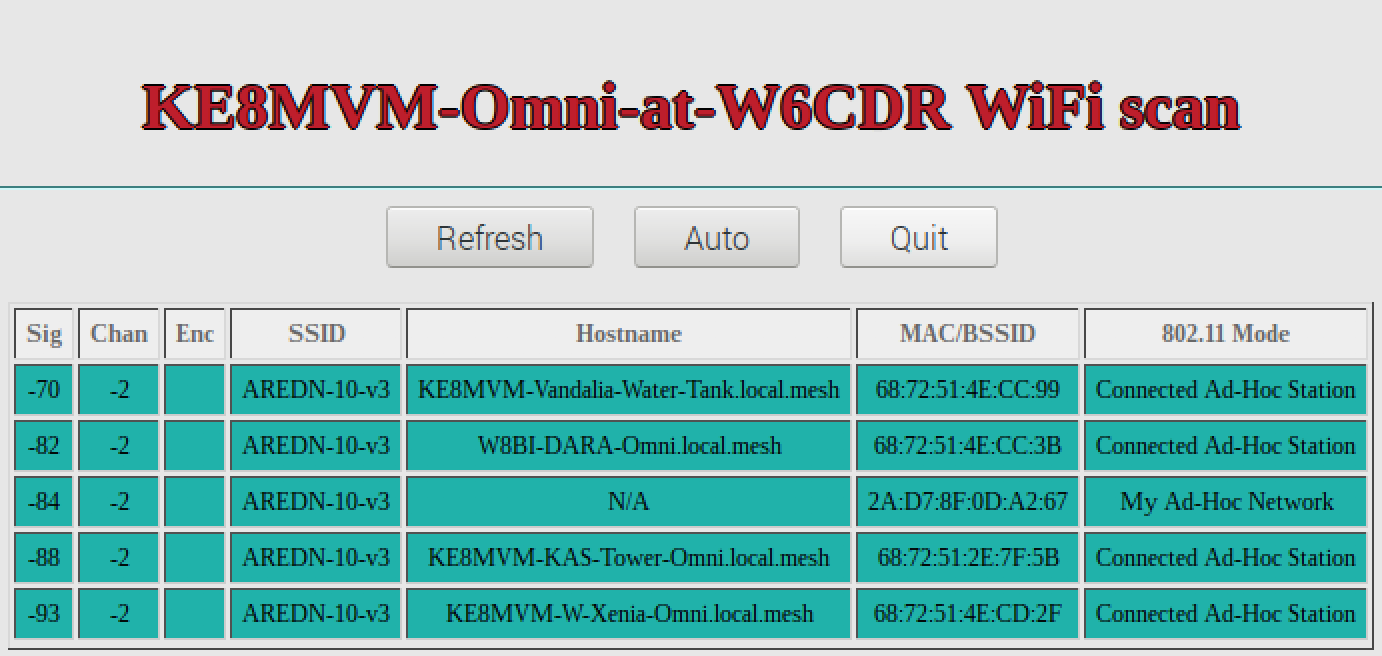

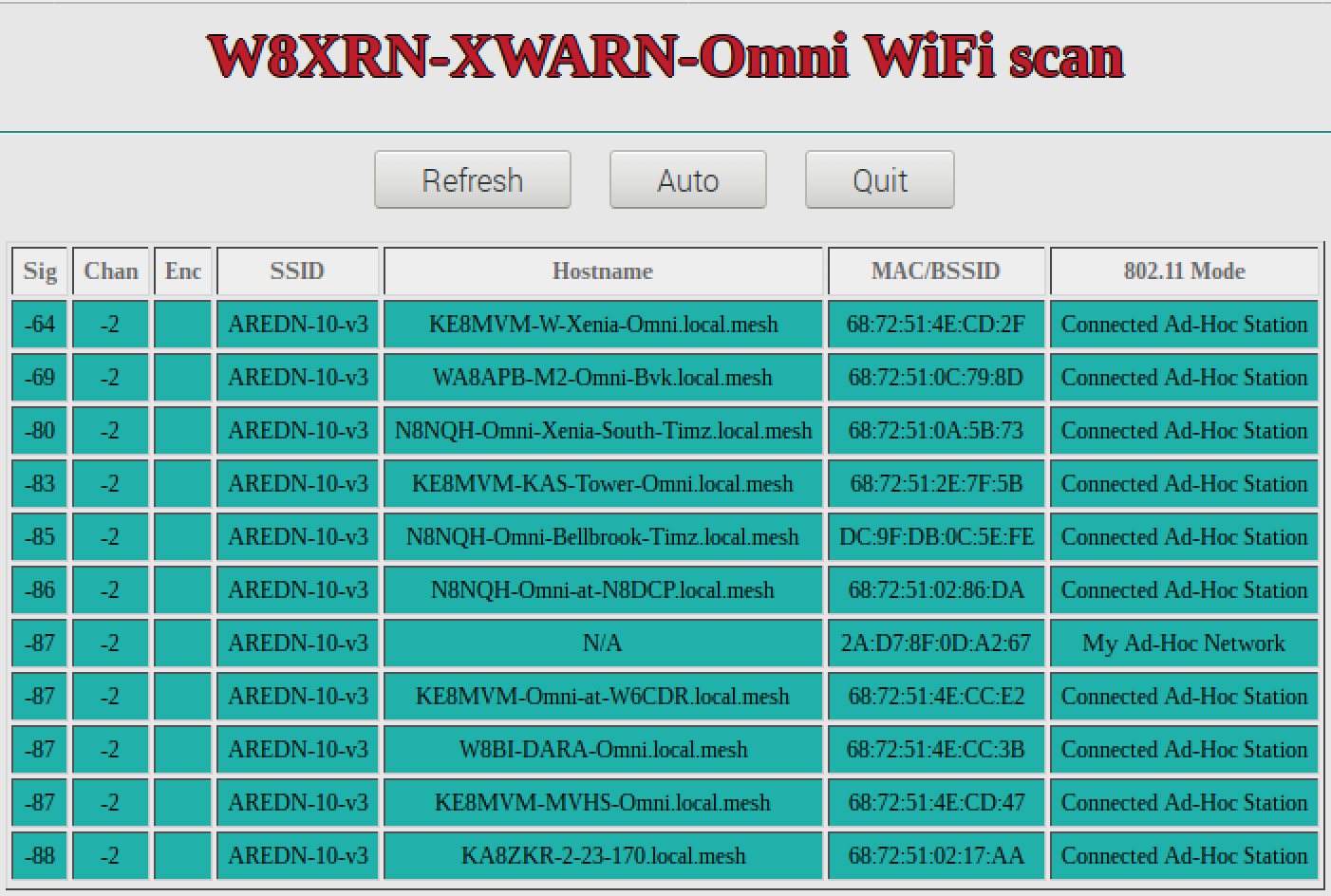

Thursday morning, May 31st 2018, I did a wifi scan at each of our dozen on-air 2.4 GHz
Omnis, except for KA8ZKR Phil’s, to which I couldn’t link. It was only heard at -88 db at
XWARN omni and -92 db at WA8APB omni. Except for the latter, these are our major host nodes
for linking client nodes to the mesh. Here are the results, ordered more or less east to west.










As noted above, I couldn’t connect to the Omni at KA8ZKR

















Including client nodes served, the largest number of other nodes heard above noise at any of

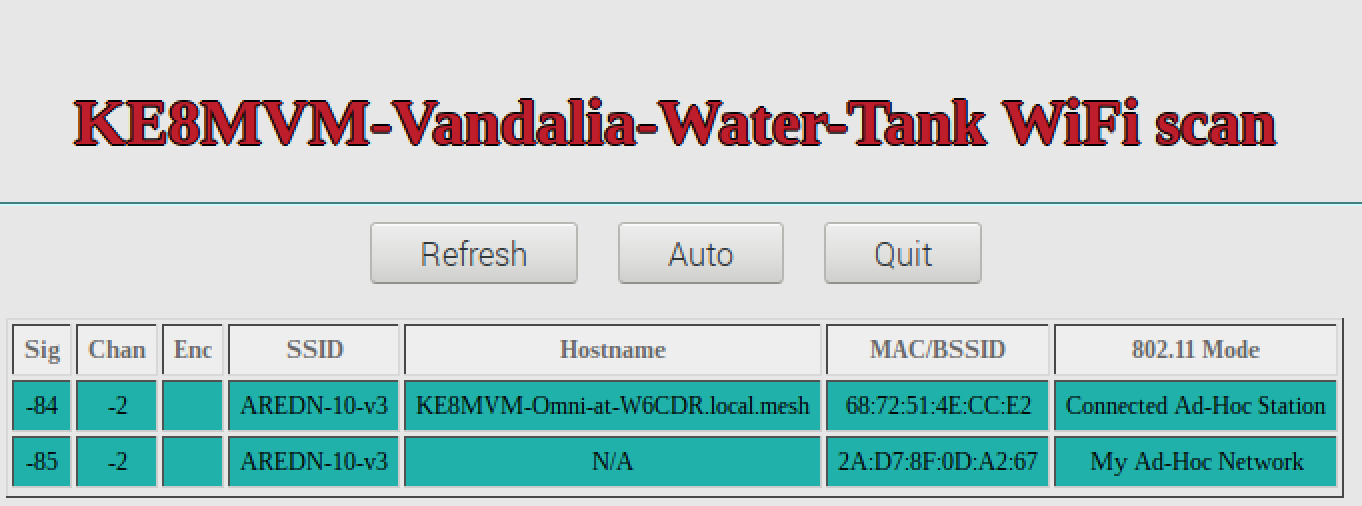

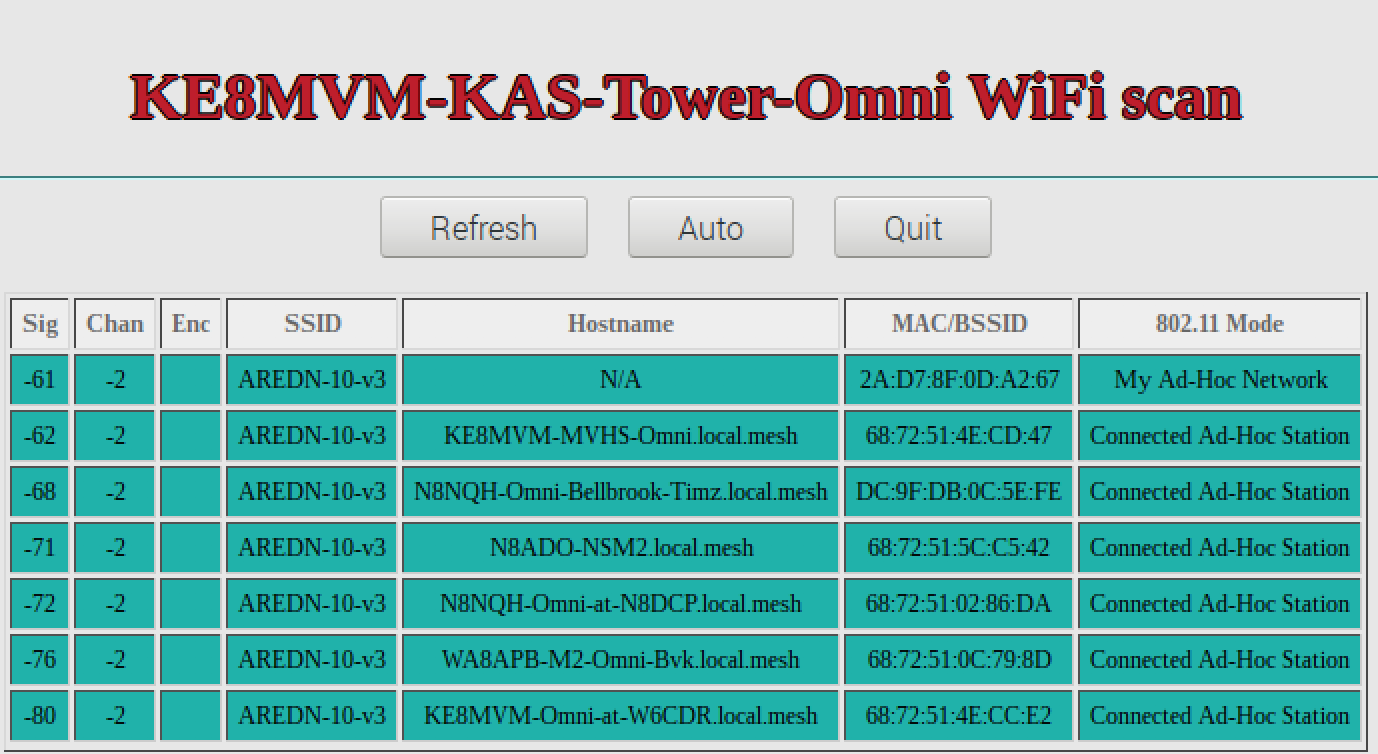

omnis this morning is ten (10). We still need to replace the node at KAS and put a filter
on the node at Vandalia.

Note the client nodes at N8ADO, W8GUC, N8JJ, and AB8XA aren't heard by any omnis except the
one that links them to the mesh. Also note the AirRouter HP at N8ADO isn't heard by any omnis,
including nearby KAS. It's only received above noise by the N8ADO NSM2.

If you reply to this email, please don’t include all the images in a quote. Thanks.
