[MVMA] NC8Y-1 Node - Tipp City

[Chuck Gelm]

"N8ZM and NC8Y are able to communicate, although signal parameters are
certainly nothing to brag about."

Here is why:

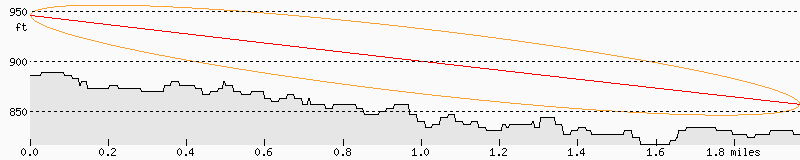

n8zm<>nc8y

Two miles through the trees on 2397 MHz. Hmmm. Have you considered 900 MHz?

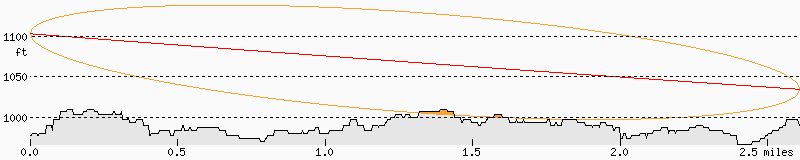

Here is my profile to MVHS on 917 MHz:
nc8q <> mvhs 917 MHz
I got 15 dB above noise floor, however there was a 250 watt 930 MHz
paging transmitter about 20 feet away at MVHS.

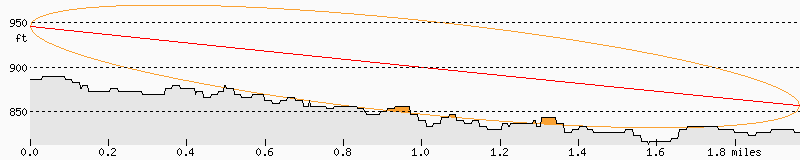

Here is N8ZM-60ft<>NC8Y-30ft profile at 917 MHz:

N8ZM<>NC8Y 917 MHz
Similar profiles and 1/3 closer. If 900 MHz would be considered, a site
survey 880 -> 940 MHz is highly recommended.

Chuck


On 05/03/2018 06:42 PM, Ken Noffsinger wrote:
> N8ZM and NC8Y are able to communicate, although signal parameters are
> certainly nothing to brag about.
