[MRCG] MRCG CW Directed Net #1 tonite 3985 KC

[Tim]

Hi Jim - I have been using EZNEC Demo Version 6.0 by W7EL.  It only runs 20
segments but it's free and easy to use.  https://www.eznec.com/

20 segments are enough to model my simple wire setups...I like it a lot,
maybe I'll buy the upgraded version with more Bells&Whistles...

Fun to play with, I learned a lot, it helped me design matching circuits
(along with a Smith Chart) and the models seem to indicate how the antennas
actually work.  If you model "long wires" it will tell you where those deep
nulls are!

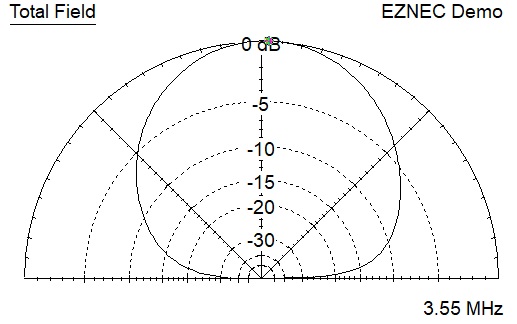

My Dogleg Inverted L elevation plot with the little "bulge"aimed at Andy.
Confirms how it works well in NVIS as desired..
Tim
N6CC


On Sat, Sep 26, 2020 at 7:35 PM JAMES FALLS <radio-tuber at att.net> wrote:

> Sort of of OT, but is there a reasonably accurate and user-friendly EZ-NEC
> equivalent out there? I often wonder if some stations are in a null the way
> they’re always weak and would like to model my NVIS antennas.
>
> Jim Falls
>
> > On Sep 26, 2020, at 15:21, daleromagnoli--- via MRCG <
> mrcg at mailman.qth.net> wrote:
> >
> >  Hi Everyone, What frequency should I be on?.. The ST-6 and #15
> standing by....73DaleVE7YTB Aboard YTB377,  GANGES.
> >    On Saturday, September 26, 2020, 11:30:43 a.m. PDT, Tim <
> timsamm at gmail.com> wrote:
> >
> > Hi Brian - Thanks for the report!  I envy your Noise Floor !!  I was
> > copying your 70 watts of Marconi and "Bathtub" key fairly well with some
> > QSB thru my S-7 hash.....What a great setup you have....
> > Thanks,,Tim
> > N6CC
> >
> >> On Fri, Sep 25, 2020 at 11:40 PM Ni6q <ni6q at aol.com> wrote:
> >>
> >> Tim, you were Q5 in Arizona.  My noise floor is very low as I am in the
> >> prairie..
> >> Cheers
> >> Brian. NI6Q
> >>
> >> Sent from my ART 13
> >>
> >>>> On Sep 25, 2020, at 9:42 PM, Tim <timsamm at gmail.com> wrote:
> >>>
> >>>
> >>> Good job Dave as NCS!  The band was very long, signals were weak at
> >> 0400Z but I copied your ART-13 about 95% and NI6Q about 50% as my local
> >> noise level was about S-7, lots of atmospherics...The Marconi sounded
> great
> >> Brian - absent noise, was very solid here..Did not copy Andy or anyone
> else
> >> however.
> >>> I was running my TCS into an Inverted L tuned for 3550 so the SWR was
> >> about 10:1 on 3985.  I also think one of the 1625's was not operating
> as I
> >> could only load to about 70 ma.  Maybe radiating  5 watts?  Did not see
> any
> >> RF antenna current...Gotta pull maintenance on the TX.
> >>> Good job with the planning and execution!  Let's do it again last
> >> Fridays of the month at 9PM local times..
> >>> 73, Tim
> >>> N6CC
> >>
