[MRCA] [ARC5] SCR-522 Connectors

[Michael Hanz]

Wuz just about to answer your earlier query about that!  You use a
mating socket in the Tx or junction box to provide the locking power.

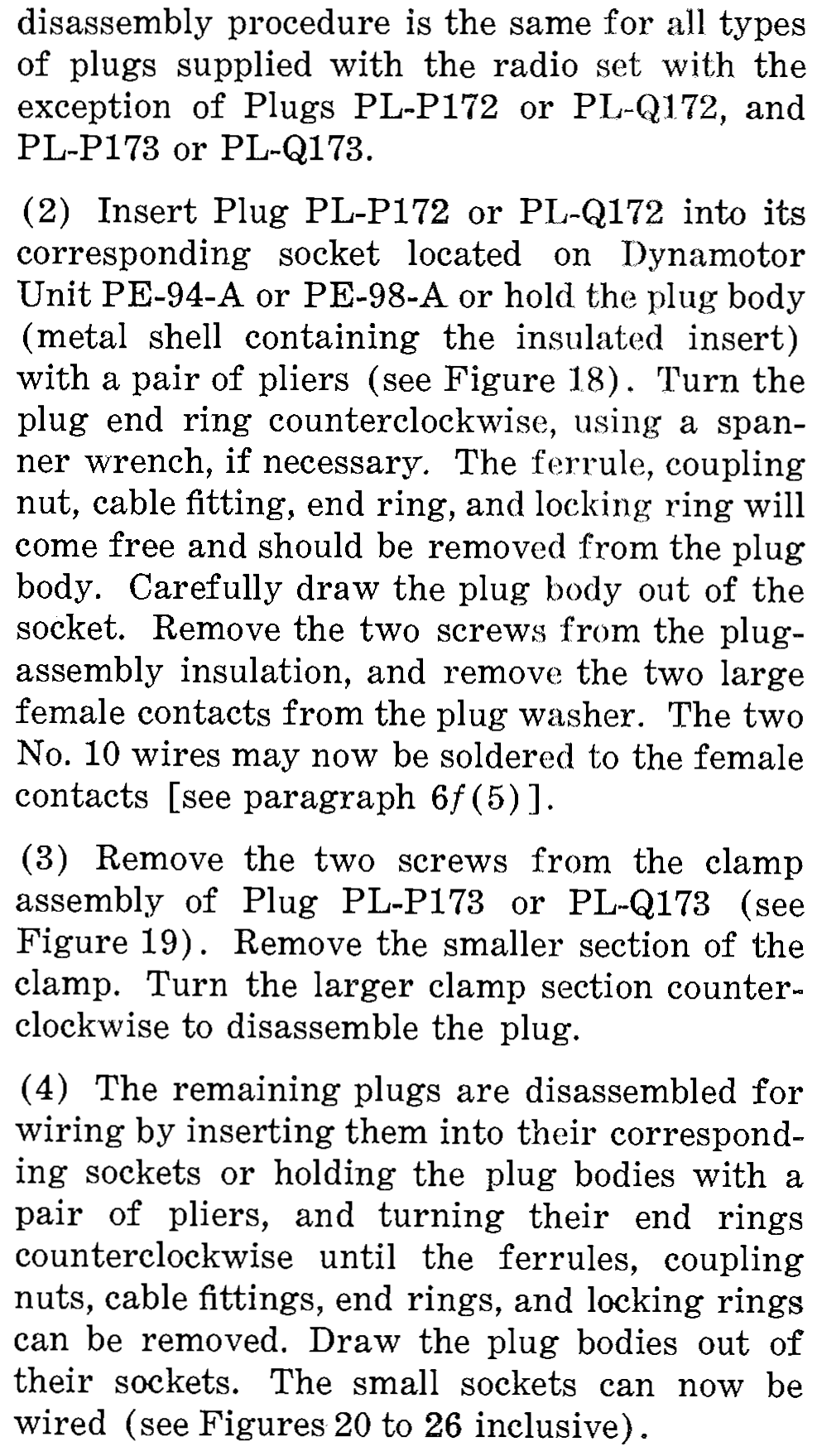

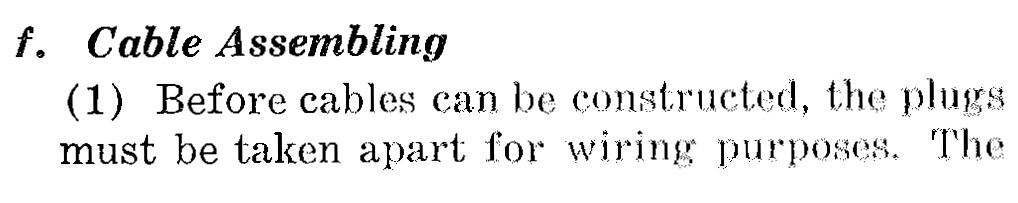

The manual has the directions.

73,

Mike

On 5/15/2026 11:30 AM, Mark K3MSB via ARC5 wrote:
> How in blazes do you get there critters apart?
>
> I figure there’s a screw under the rotating collar,  but I’ve not been
> successful in getting the collar off.   I didn’t find anything in the

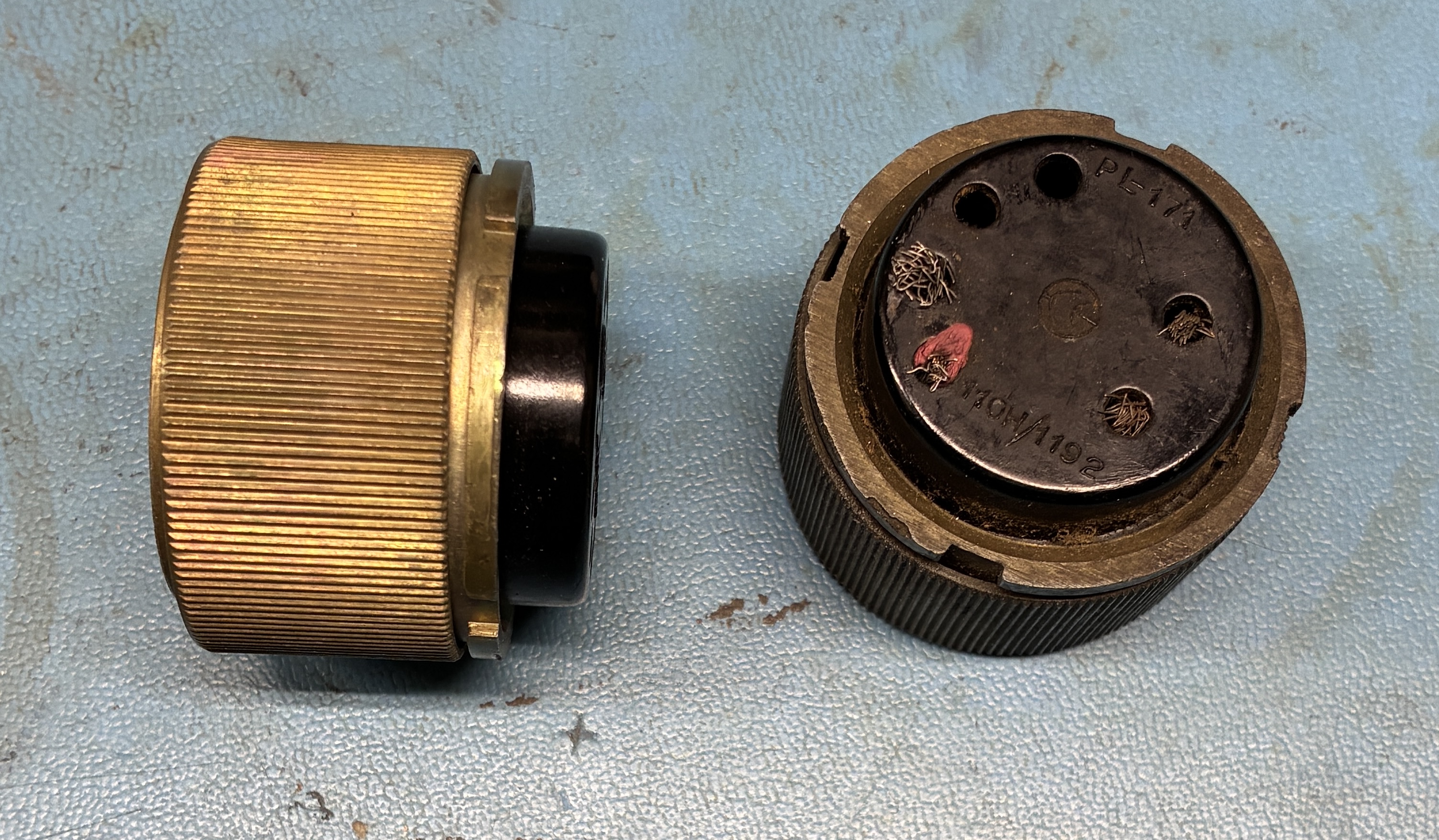

> manual…. Here’s a photo of two of the connectors….
>
>
>
> Thanks.
>
> Mark K3MSB
>
