[MRCA] Field Day Generator

[B. Smith]

The little Chink generator is easy to crank but voltage dropped very low
during transmit with RF power output dropping down to less than 75 mW.

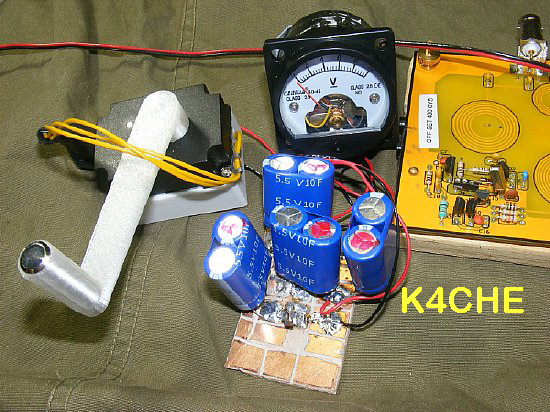

I made an emergency capacitor pack using Super Caps. Cranked until the
caps reached  9-10 volts. The receiver could now easily run for an hour
and I could now make several short FD exchanges  running 1/2 watt while
the Super Caps discharged and when they got down to 6 volts I would do
several cranks.
The little 3 phase hand crank generator was a lot easier to crank than
the "Clansman" that I used  during a previous FD.
http://k4che.com/FD%202022%20K4CHE/clansman%20K4CHE.mp4
Also easier than pedaling my G-76.
http://k4che.com/Tempvideo/G76%20Generator%20Mod/K4cheG76Mod.mp4
Amazing what you can do with low RF power. Supers Capacitors.  PFM
Happy 4th to all - its good to be here and not overseas to celebrate.
Z
