[MRCA] CU-284/UR UHF Coupler Manual

[Daniel Jones]

I have a CU-284/UR antenna coupler that I am working on (I plan to use it to split my AN/URC-9 and my AN/URR-35C.


Literature is pretty thin on this item so I figured I would reach out and see if anyone had the publication laying around and would be willing to send it in to get scanned or perhaps sell it.

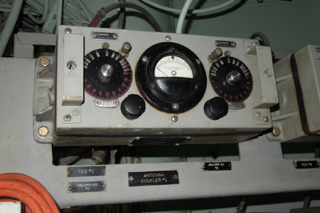

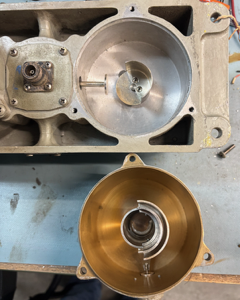

Here is what it looks like (Courtesy of Nick at Navy-Radio.com <http://navy-radio.com/>).  It’s a pretty simple device using two cavities but I always like to have the manual so I have the specific adjustment specifications.






Thanks,
Daniel





Daniel Jones (K6YIC)
DJones at k6yic.com
http://K6YIC.com
HH Phone #11973
SKCC#28598
CCA# AC20-13565
