[MRCA] LF Loop

[Jeep Platt]

Seen them on Ebay pretty cheap.  Going to connect up my Bendix aircraft ADF  with the loop and sense antennas. Maybe I will hear something usable.
Jeep K3HVG

Sent from my Verizon, Samsung Galaxy smartphone
Get Outlook for Android<https://aka.ms/AAb9ysg>
________________________________
From: mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net> on behalf of B. Smith via MRCA <mrca at mailman.qth.net>
Sent: Thursday, December 11, 2025 6:27:42 PM
To: Military Radio Collectors Association <mrca at mailman.qth.net>
Subject: [MRCA] LF Loop

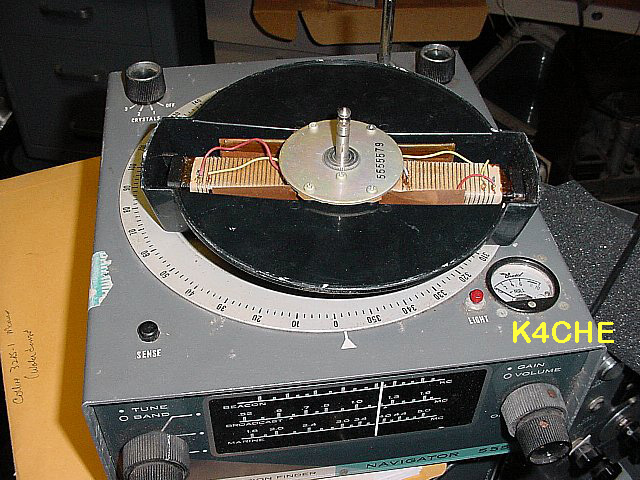

Several have asked for details on the rotatable loop on my Bendix 555 receiver.
Attached is a photo. You can estimate the turns etc. Note the use of a standard phone jack for the mount. The loop is shielded. I've posted in the past construction details for a loop for 80 meters. I've enjoyed the Bendix, it has a S meter, BFO, and a "Sense" antenna.
http://k4che.com/DFloopstick/DFstickpg1.htm
Z
[cid:part1.Z6Y2bGqH.85VdwBMe at comcast.net]

[cid:part2.KYueSma5.fRgJMmPJ at comcast.net]
