[MRCA] Progrock2 Connections

[B. Smith]

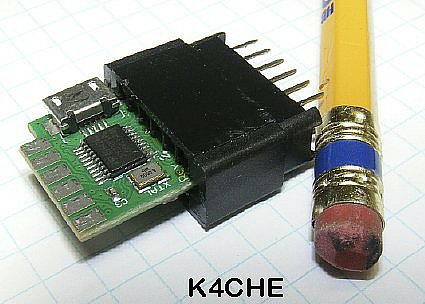

The side connection pads on the Progrock2 board may require some precise
soldering skills. An alternate way to connect to the board is to use a
"Edge" connector. The board requires a  12 pin connector which should
have a pitch of 2.54 mm or .1 inch. The Edge connector facilitates  easy
connections and also allows you to  remove the Prog board from your
current project and reuse it on another project. A larger/longer Edge
connector such as a 36 pin can also be trimmed down. Observe caution
when inserting the board make sure that the Positive supply voltage goes
to the correct pin.
Z
