[MRCA] [ARC5] Aircraft antenna questions

[Michael Hanz]

Here are a few data points.
- Mike  KC4TOS











On 1/9/2024 6:41 PM, Doran Platt wrote:
> OK. at my peril I offer the following. If the antenna in question is a
> 1/4 wave vertical tapered blade with a "box" base. As I recall it has
> an N connector.. maybe.  I believe, the painted, copper or brass glove
> over the wood blade fully covered the blade down to the "box" but
> insulated.  Again, as I recall there were two strips that provided
> connection. There is a mounting bolt pattern for attachment through
> the airframe.  My direct experience, as a neophyte, was in about 1958.
> I recall paying a few dollars for mine. I also, actually, saw one
> installed in a sedan outside the same ham store.  The gentleman had
> cut a hole in the car roof. I saw it...  W3NJT. George Pasquale, owned
> the store and was a reserve TWA radio op and navigator.
> Jeep K3HVG
>> On 01/09/2024 5:50 PM EST MARK DORNEY via ARC5 <arc5 at mailman.qth.net>
>> wrote:
>> Anybody have experience with the AN/104 aircraft radio antenna used
>> by the USN, USAAF and USAF ? I have one that I’d like to use on the
>> TBM Avenger. The question I have concerns the way the antenna is
>> built. On the example I have, the antenna is mostly made out of wood
>> ( looks like oak ) with some sort of thin metal sheathing (
>> aluminum?) covering some of the wood. The sheathing appears to be
>> very worn. The questions I hardware these: has anybody seen these
>> antennas when they were new? How much of the antenna mast is covered
>> with metal? If this metal is sheathing, how was it fixed to the mast?
>> Does anybody have clear pictures of an unused AN/104 ?
>> 73
>> Mark D
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0001.html>
-------------- next part --------------

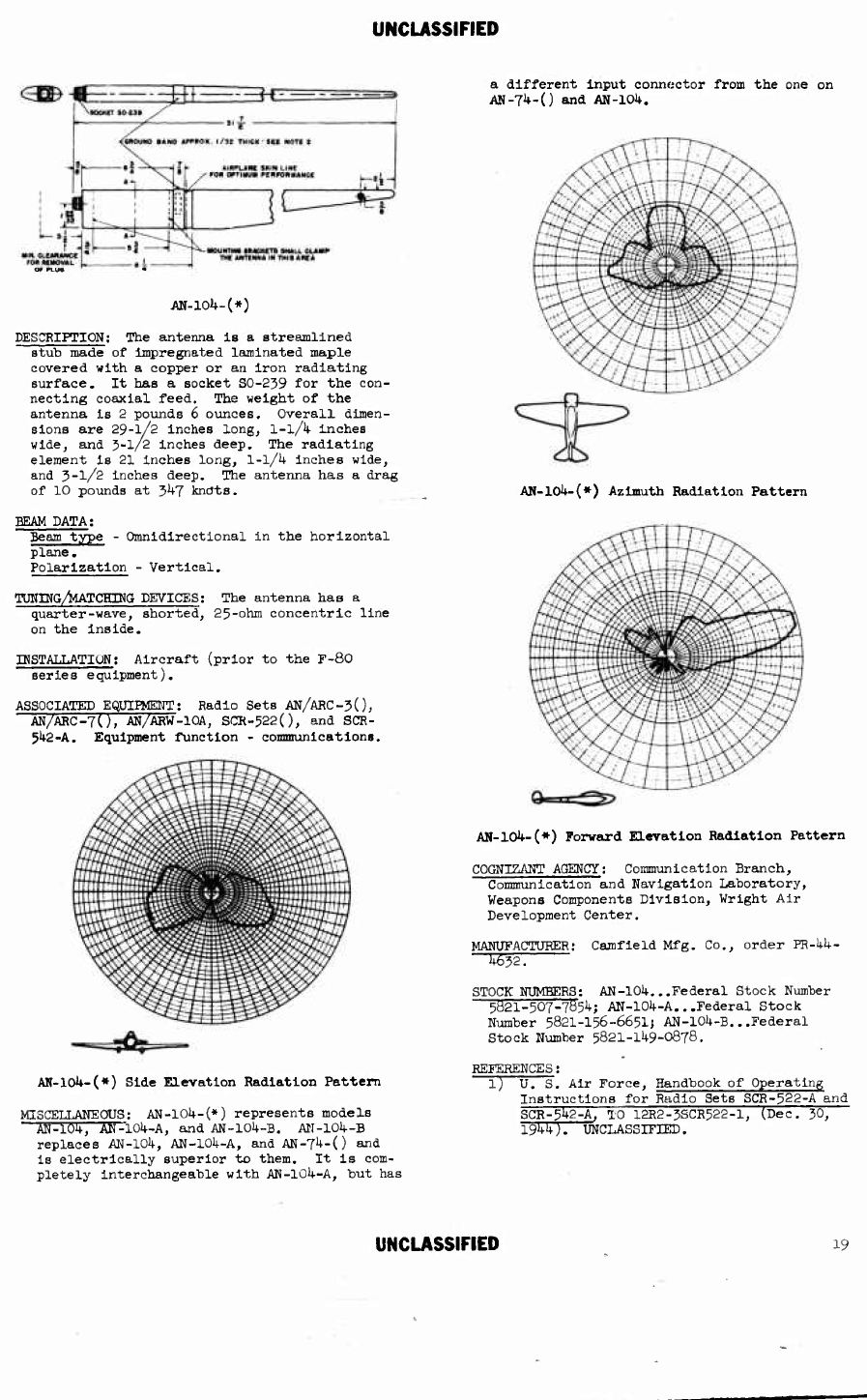

A non-text attachment was scrubbed...
Name: AN-104.png
Type: image/png
Size: 590902 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0002.png>
-------------- next part --------------

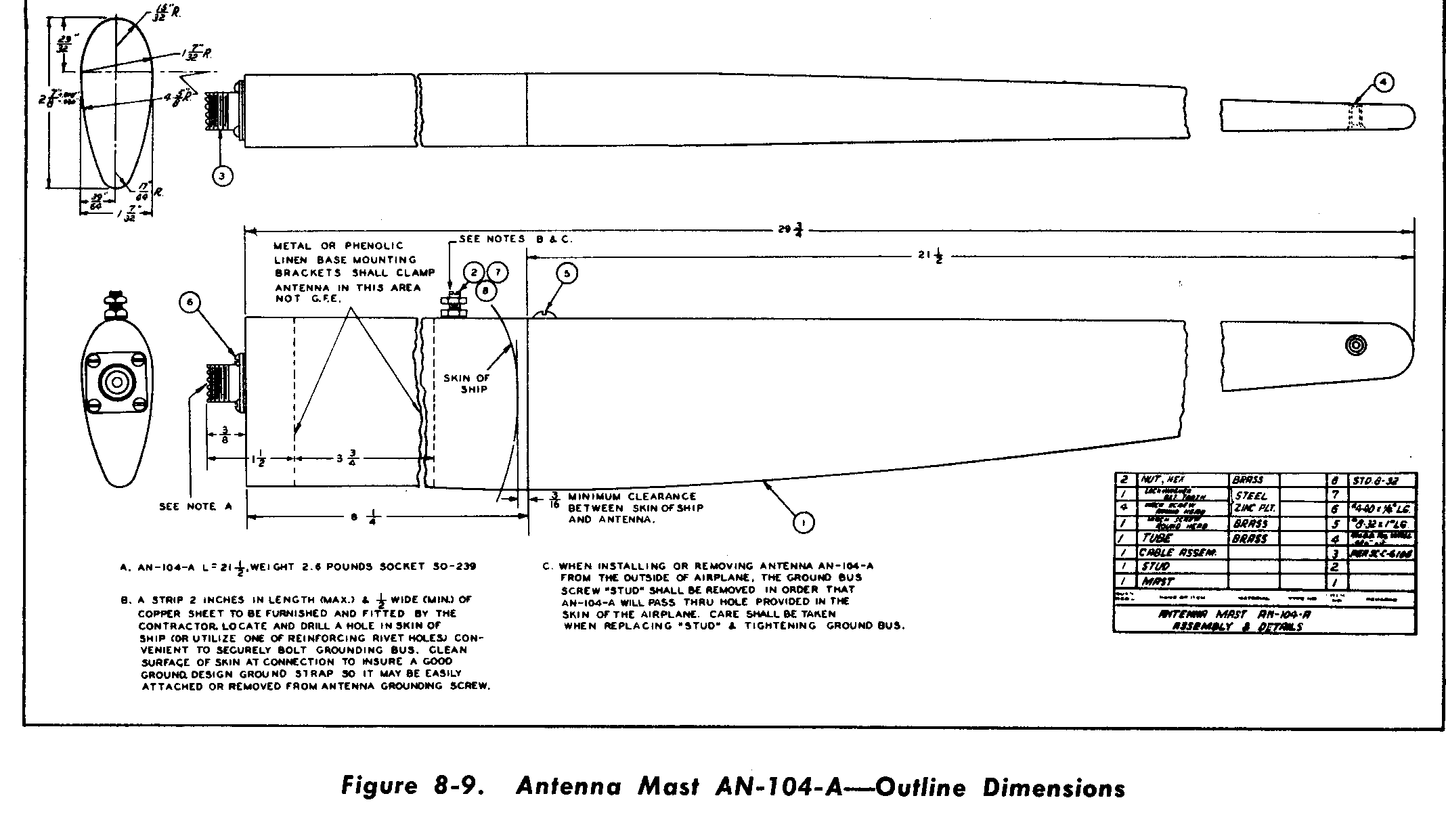

A non-text attachment was scrubbed...
Name: AN-104A outline.png
Type: image/png
Size: 56743 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0003.png>
-------------- next part --------------

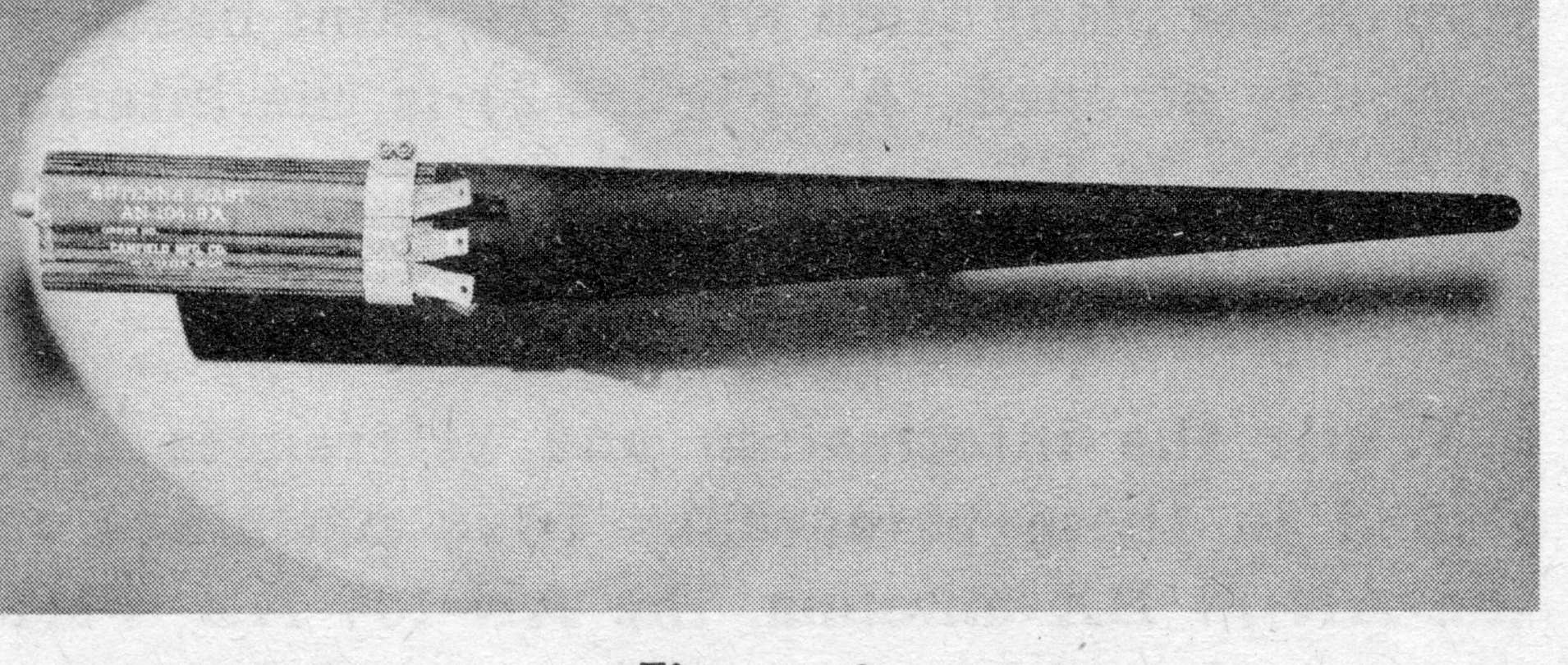

A non-text attachment was scrubbed...
Name: AN-104B1.jpg
Type: image/jpeg
Size: 284509 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0002.jpg>
-------------- next part --------------

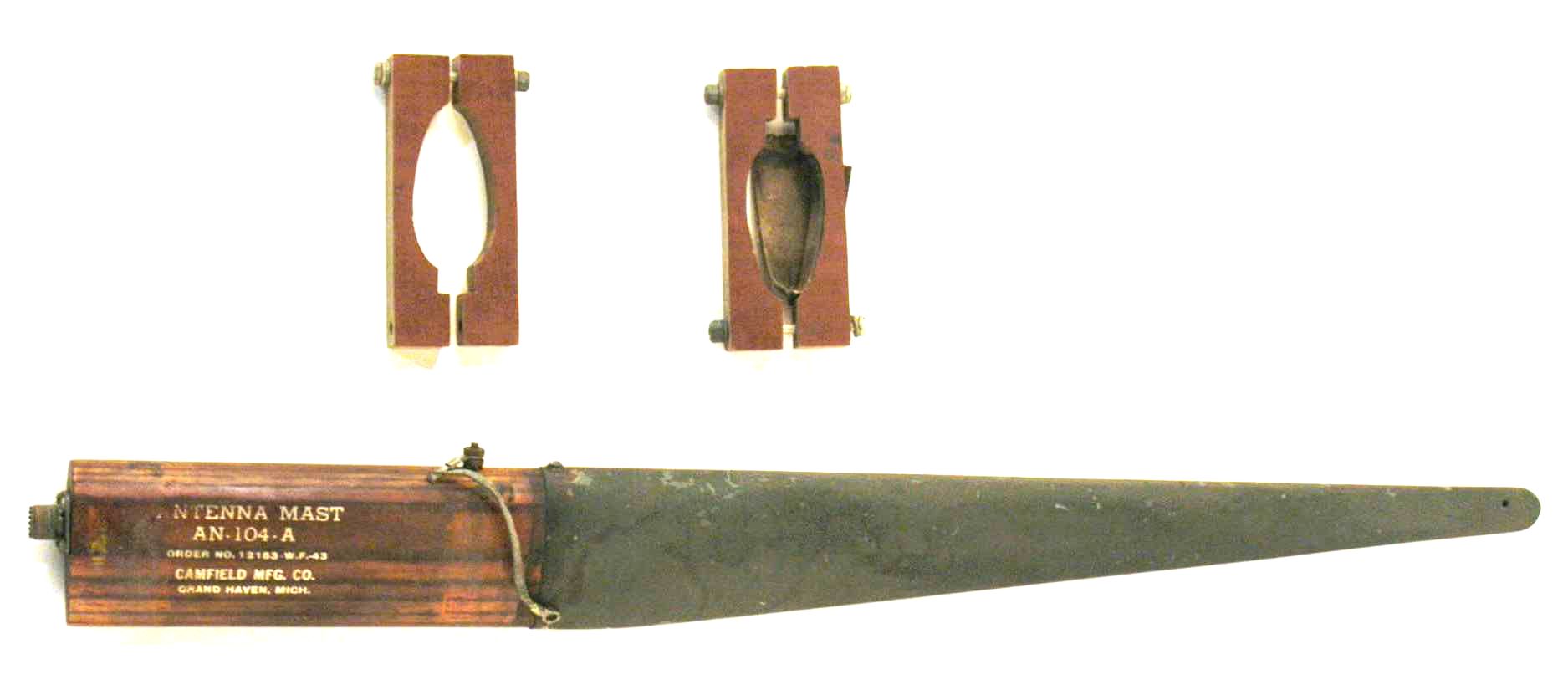

A non-text attachment was scrubbed...
Name: AN-104-A NASM.jpg
Type: image/jpeg
Size: 72748 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0003.jpg>
-------------- next part --------------

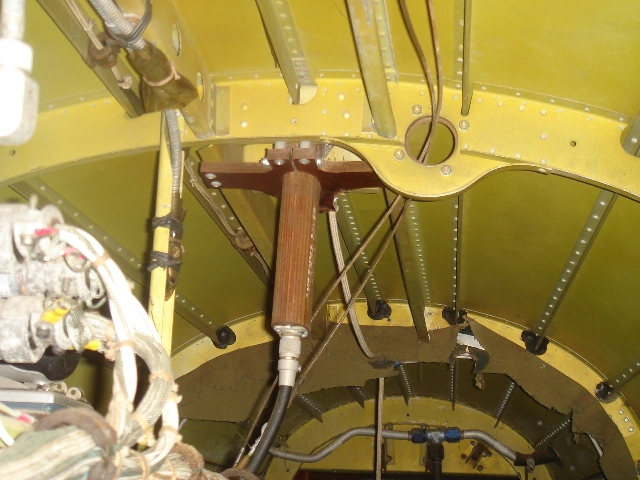

A non-text attachment was scrubbed...
Name: 3NM J brown.JPG
Type: image/jpeg
Size: 169348 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20240109/f51345df/attachment-0001.jpe>
