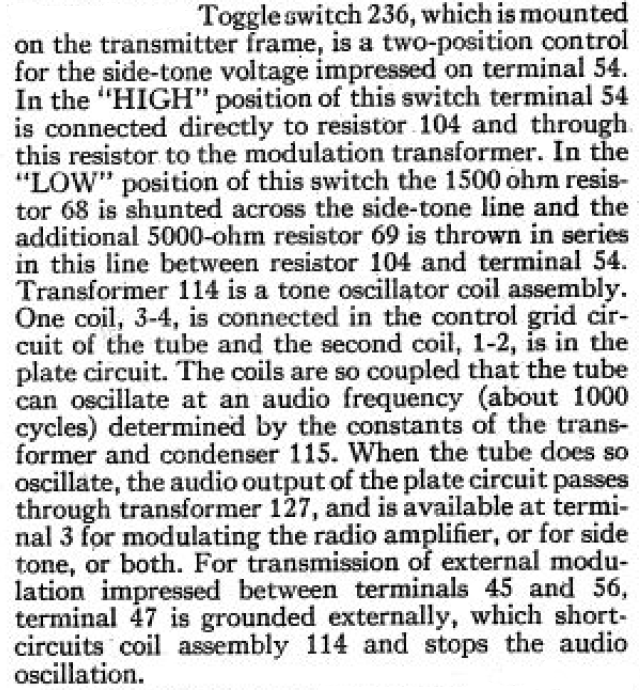

Yup.  Nothing to do with upper or lower sidebands. Here is the
explanation in the manual:



On 7/18/2023 7:39 PM, B. Smith wrote:
> That looks like a "SideTone" switch to me.
> Z
>
> On 7/18/2023 6:46 PM, MARK DORNEY via MRCA wrote:

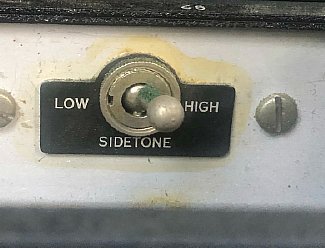

>>  Pictures of the sideband switch on the GF-11 transmitter:
>>
>>
>> Mark D.
>> WW2RDO
>>
>> “In matters of style, float with the current. In matters of
>> Principle, stand like a rock. “.   - Thomas Jefferson
>>
>> Sent from my iPhone
>>
>>> On Jul 18, 2023, at 5:01 PM, Christopher Bowne <aj1g at sbcglobal.net>
>>> wrote:
>>>
>>>  To paraphrase a famous line from the movie Casablanca, I’m shocked
>>> Mark, I
>>> tell you shocked!  The GF-11 is an early 1930s low power command set
>>> with a two tube MOPA RF arrangement , and a pair or type small type
>>> 10 triodes.  Perhaps yours has been modified use as  a phasing type
>>> single sideband exciter in the early days of amateur SSB in the late
>>> 1940s-early 1950s.  In that case I would expect there would be
>>> evidence of considerable modification, including a phased shift
>>> network and a  balanced modulator and a pair of carrier null
>>> potentiometers. Or perhaps it’s just a dummy switch added as a joke
>>> or prank back in the day.
>>>
>>> That said, MOPA sets like the GF-11 can in fact transmit a signal
>>> that has one sideband that contains significantly more energy than
>>> the other.  These sets usually generate significant incidental FM
>>> along with AM on voice, and there is a lot a phase cancellation
>>> going on.  The BC-375 and 191s are notorious for this behavior.  If
>>> you look at the spectral and waterfall display of one of these
>>> transmitters in voice mode you will likely see that the majority of
>>> the modulation is on one sideband. We once had 4 such sets on in a
>>> net and some were generating mostly upper sideband modulation
>>> energy, and some were mostly lower sideband, all with full carriers
>>> of course.  You  need a balanced modulator to null out the carrier
>>> and select the desired sideband you want your SSB to be on.  With
>>> careful neutralization and finessing of the PA plate current dip you
>>> can get reasonable sideband energy balance in AM operation.
>>>
>>> Here’s a good link that describes the GF-11 in detail:
>>>
>>> https://www.radioblvd.com/RU16-GF11_Restoration.htm
>>>
>>>   Send us a pix of yours if you can!
>>>
>>> 73 de Chris AJ1G
>>> Stonington CT
>>>
>>> Sent from my iPhone
>>>
