[Michael Hanz]

Of course I meant 5/8"-24 on the Type N - I obviously need more coffee...

On 8/26/2023 7:35 AM, Michael Hanz wrote:
> Ah ha!  I thought it looked vaguely familiar.  Okay, after a lot of
> going down various rabbit holes, I pulled out a Type N male connector
> that you had asked about earlier, and the thread is a 5/16-24 - very
> possibly the same as on your ZB-1.  You can check it by laying a
> pocket scale alongside the thread and counting the number of threads
> in 1/4", then multiply by 4.  (I did it that way for years, but I just
> use a thread gauge these days.)  The only problem with the Type N is
> that pesky 5/16"OD shield around the 1/16" center pin.  If you could
> machine that 5/16" diameter shield off back to the bottom, I'll bet it
> the modified N connector would fit just fine.  If you or a friend have
> a lathe, this is dirt simple.
>
> Sorry to take so long, but that transition period at the beginning of
> WWII is nasty from a parts detail standpoint.  The original ZB and
> ZB-1 RF connectors were the Navy CW-49137 or CSX-49137 (Western
> Electric and Selector Manufacturing Corporation - good luck finding
> any of those).  There was a period when the transition connectors on
> yours and the one I donated to the Smithsonian below were used before
> that final SO-239 type was chosen for the ZB-2 and ZB-3.
>
>    73,
> - Mike
>
>
>
> On 8/24/2023 10:08 PM, MARK DORNEY wrote:
>> The thread on the shell is different. Thread on the ZB-1 is finer. The ID of the shell is correct, but the threads aren’t.
>>
>> Mark D.
>> WW2RDO
>>> On Aug 24, 2023, at 7:22 PM, Michael Hanz<aaf-radio-1 at aafradio.org>  wrote:
>>>
>>> I would try the shell of the 259 first.  Looks to be a finer thread, though the NASM photo is indistinct.  The PL-259 was the replacement for the one in the ZB-1, but I think the pin may be too large.  It may be one of the connectors that were meant for shielded microphone wire.  I don't have time to research it until tomorrow.
>>>> On 8/24/2023 7:10 PM, MARK DORNEY via MRCA wrote:
>>>> “N” connectors?
>>>>
>>>> On Aug 24, 2023, at 5:28 PM, MARK DORNEY<mkdorney at aol.com>  wrote:
>>>>

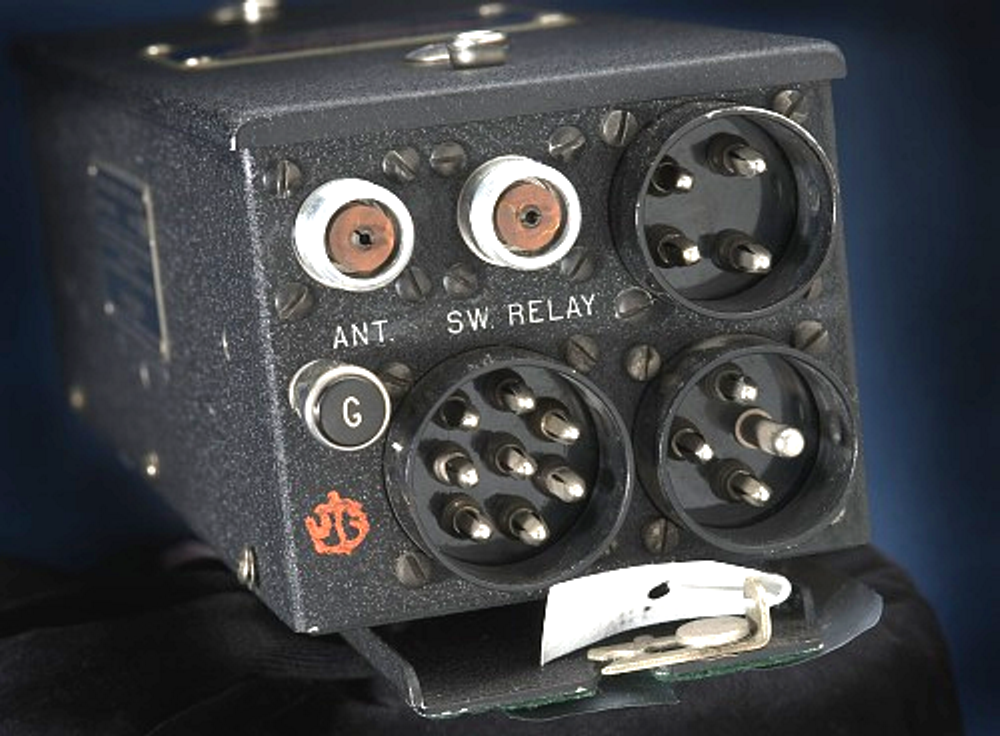

>>>> This is a ZB-1 Homing device.
>>>>
>>>> https://collections.si.edu/search/detail/edanmdm:nasm_A20060110000
>>>>
>>>> It has the same two coax connectors on the back as the ZB-1 that I have, so I’m thinking they are original. What do you even call this type of coax connector, and where can I find two?  I would like to use the ZB-1 with an ARB Receiver.
>>>>
>>>> Mark D.
>>>> WW2RDO
>
>
> ______________________________________________________________
> MRCA mailing list
> Home:http://mailman.qth.net/mailman/listinfo/mrca
> Help:http://mailman.qth.net/mmfaq.htm
> Post:mailto:MRCA at mailman.qth.net
>
> This list hosted by:http://www.qsl.net
> Please help support this email list:http://www.qsl.net/donate.html

--
Michael Hanz - KC4TOS
