[MRCA] R-24/ARC-5, C-26/ARC-5 Single control.

Fri Jun 17 22:22:34 EDT 2022

Hi I have the single ARC-5 controls C-26/ARC-5 and mechanical cables, and anything else you want for the ARC-5.  Don’t know if I have a .55-1.5 mc dial for it. Its all for sale. WildBillK0IKP at aol.com <mailto:WildBillK0IKP at aol.com>,303-229-4611.

> On Jun 17, 2022, at 4:52 PM, mrca-request at mailman.qth.net wrote:
>
> Send MRCA mailing list submissions to
> 	mrca at mailman.qth.net
>
> To subscribe or unsubscribe via the World Wide Web, visit
> 	http://mailman.qth.net/mailman/listinfo/mrca
> or, via email, send a message with subject or body 'help' to
> 	mrca-request at mailman.qth.net
>
> You can reach the person managing the list at
> 	mrca-owner at mailman.qth.net
>
> When replying, please edit your Subject line so it is more specific
> than "Re: Contents of MRCA digest..."
>
>
> Today's Topics:
>
>   1. Re: Remote tuning dial for R24/ARC-5 (Mike Morrow)
>   2. Re: Remote tuning dial for R24/ARC-5 (Michael Hanz)
>
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Fri, 17 Jun 2022 19:05:03 +0000
> From: Mike Morrow <kk5f at earthlink.net>
> To: MARK DORNEY <mkdorney at aol.com>, mrca at mailman.qth.net
> Subject: Re: [MRCA] Remote tuning dial for R24/ARC-5
> Message-ID: <3e3b8af2-2398-c2c5-ecb5-93d457c58726 at earthlink.net>
> Content-Type: text/plain; charset=utf-8
>
> Yes, there were several different styles of the .52 to 1.5 MHz remote tuning dials between the ARA, SCR-274-N, and AN/ARC-5 sets.? The one that was always supplied and stored on the R-24/ARC-5 tube cover is officially the ID-26/ARC-5, but it will only be marked with a four-digit A.R.C. part number.? I think Mike Hanz has these shown on aafradio.org.
> ?
> The main reason for existence of the R-24 was for use with the AN/ARR-1 "ZB" homing adapted and the AN/ARN-9 "Air Trak" ILS, but the AN/ARR-1 was replaced by the AN/ARR-2 and the AN/ARN-9 was replaced by the AN/ARN-5 glide slope with RC-103-A localizer ILS receivers by 1944.
> ?
> The R-24 was a white elephant, but it was ALWAYS supplied with its remote tuning dial.
> ?
> I don't know of a source.? I got mine on ebay.
> ?
> Mike / KK5F
> ?
> -----Original Message-----
> From: MARK DORNEY
> Sent: Jun 17, 2022 6:09 AM
> To:
> Subject: [MRCA] Remote tuning dial for R24/ARC-5
> ?
> Anybody know if there was a remote tuning dial made for the ?coffee grinder? remote tuner for the R-24/ARC-5 receiver? Also, would anybody have an idea where I might buy one if there were made?
> ?
> Mark D.
> WW2RDO
>
>
>
> ------------------------------
>
> Message: 2
> Date: Fri, 17 Jun 2022 18:52:24 -0400
> From: Michael Hanz <aaf-radio-1 at aafradio.org>
> To: mrca at mailman.qth.net
> Subject: Re: [MRCA] Remote tuning dial for R24/ARC-5
> Message-ID: <df789781-3047-1e64-a140-82ff19420a31 at aafradio.org>
> Content-Type: text/plain; charset="utf-8"; Format="flowed"
>

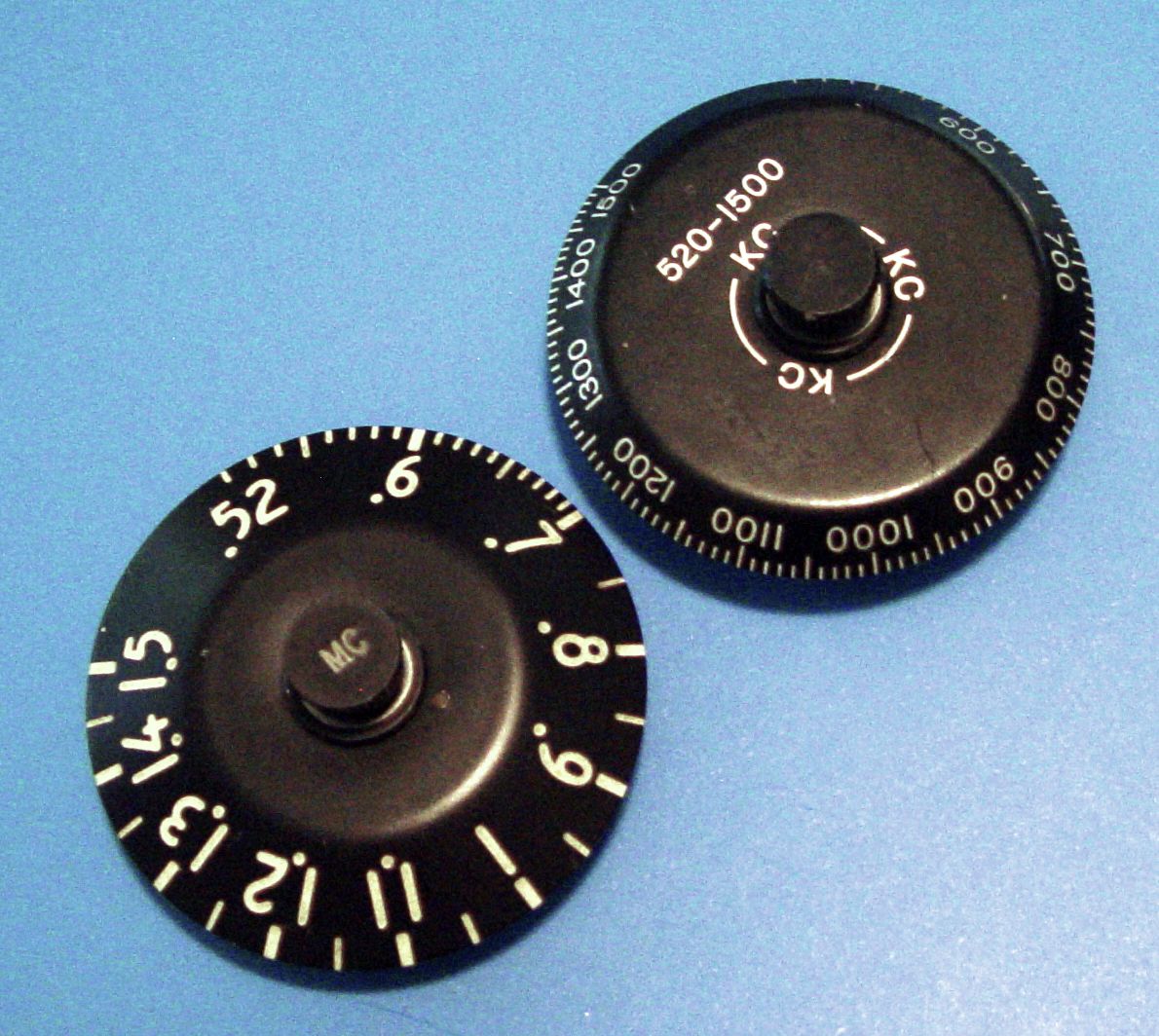

> I just have the MC-415 issued for the BC-946 and the ARC 5611 for the
> R-24/ARC-5, Mike.? Photo below.? There is no part number marking on the
> MC-415, but there is mention of it in the description of the BC-946-B in
> an addendum to T.O. 08-10-50 dated 15 Feb 1943 for the SCR-274-N set.?
> Like all the earlier remote control receiver tuning dials, it is simply
> engraved with white paint filler.? The 5611 has wider electroluminescent
> paint numerals that glow brightly under a UV light.
>
> A UV light doesn't do much for the SCR-274-N set.
>
> - Mike? KC4TOS
>
>
>
> On 6/17/2022 3:05 PM, Mike Morrow wrote:
>> Yes, there were several different styles of the .52 to 1.5 MHz remote tuning dials between the ARA, SCR-274-N, and AN/ARC-5 sets.? The one that was always supplied and stored on the R-24/ARC-5 tube cover is officially the ID-26/ARC-5, but it will only be marked with a four-digit A.R.C. part number.? I think Mike Hanz has these shown on aafradio.org.
>>
>> The main reason for existence of the R-24 was for use with the AN/ARR-1 "ZB" homing adapted and the AN/ARN-9 "Air Trak" ILS, but the AN/ARR-1 was replaced by the AN/ARR-2 and the AN/ARN-9 was replaced by the AN/ARN-5 glide slope with RC-103-A localizer ILS receivers by 1944.
>>
>> The R-24 was a white elephant, but it was ALWAYS supplied with its remote tuning dial.
>>
>> I don't know of a source.? I got mine on ebay.
>>
>> Mike / KK5F
>>
>> -----Original Message-----
>> From: MARK DORNEY
>> Sent: Jun 17, 2022 6:09 AM
>> To:
>> Subject: [MRCA] Remote tuning dial for R24/ARC-5
>>
>> Anybody know if there was a remote tuning dial made for the ?coffee grinder? remote tuner for the R-24/ARC-5 receiver? Also, would anybody have an idea where I might buy one if there were made?
>>
>> Mark D.
>> WW2RDO
> -------------- next part --------------
> An HTML attachment was scrubbed...
> URL: <http://mailman.qth.net/pipermail/mrca/attachments/20220617/73643bc4/attachment.html>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: 05.png
> Type: image/png
> Size: 400 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/mrca/attachments/20220617/73643bc4/attachment.png>
> -------------- next part --------------
> A non-text attachment was scrubbed...
> Name: DSC06613.JPG
> Type: image/jpeg
> Size: 225062 bytes
> Desc: not available
> URL: <http://mailman.qth.net/pipermail/mrca/attachments/20220617/73643bc4/attachment.jpe>
>
> ------------------------------
>
