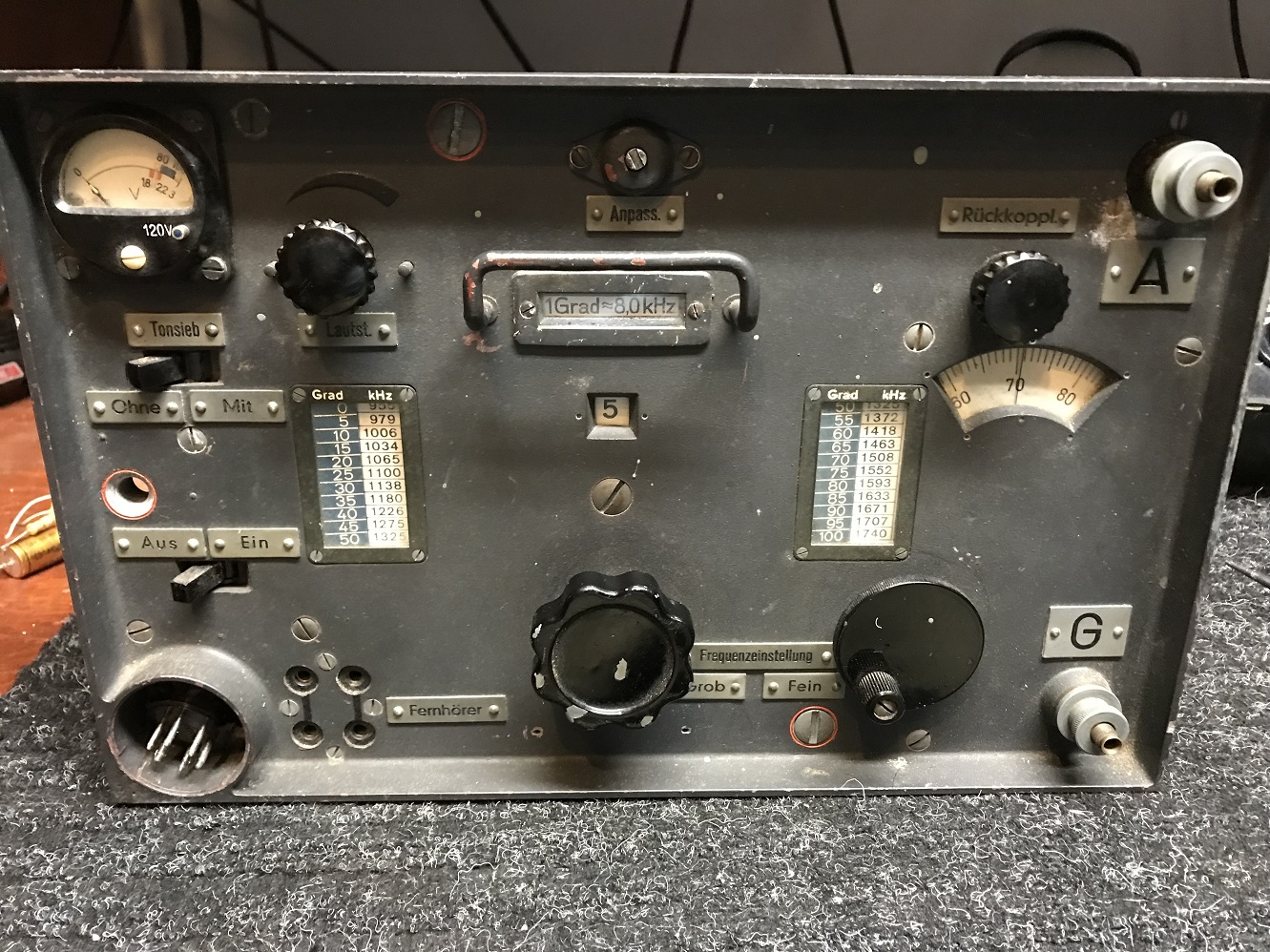

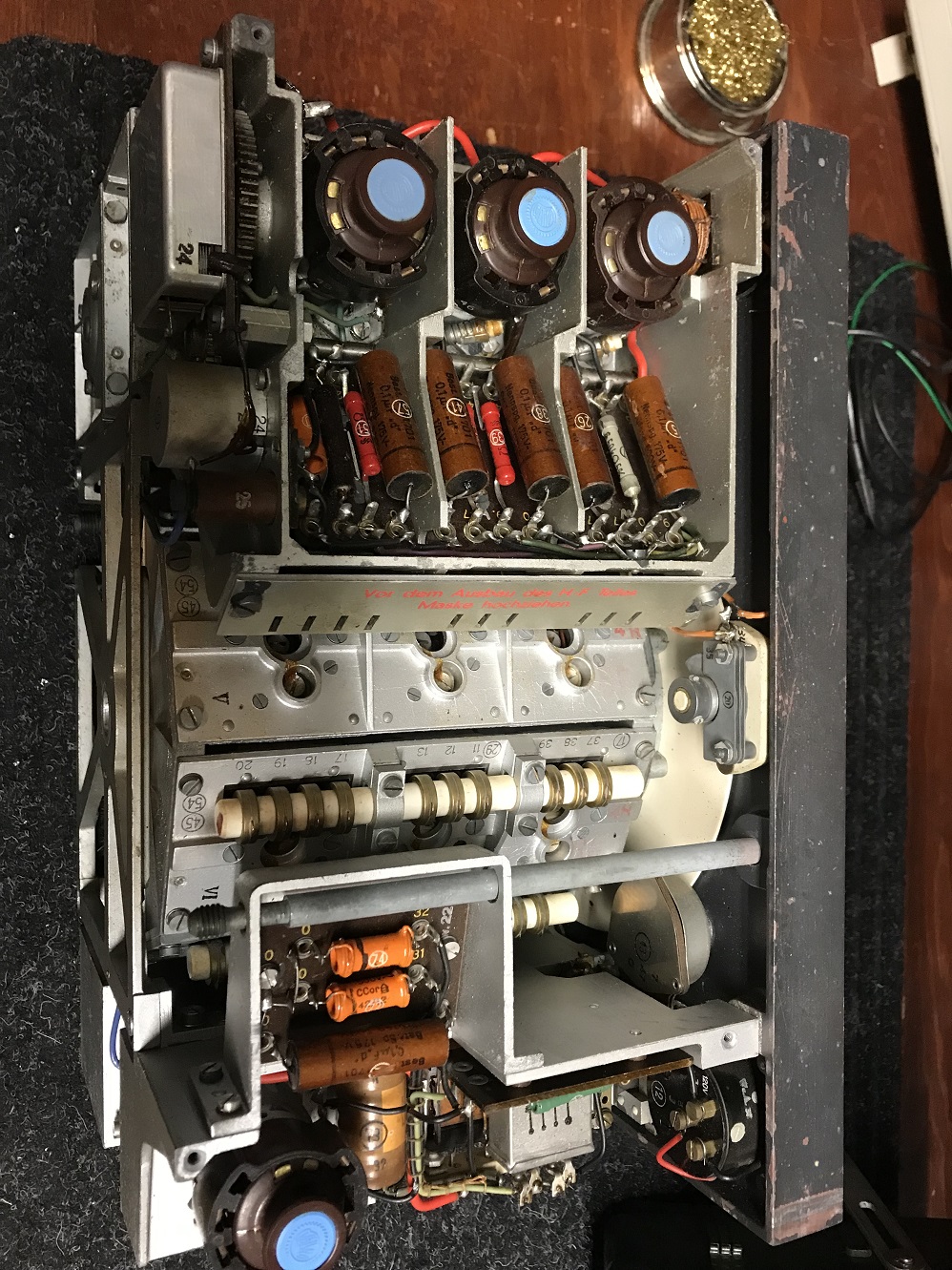

Another Torn E.b. receiver that I am working on. This one was converted and had some of the internal changed along with a different plug installed on the front and am in the process of returning everything to as close to original as possible. This radio has a lot nicer face then the last one that I did, although its missing the data plate. Figure being it has the meter and the internal shield plate it must be a 42/43 production run being most produced in late 43/44 did not have the meter along with the last production models having cast stenciling and not the plates.

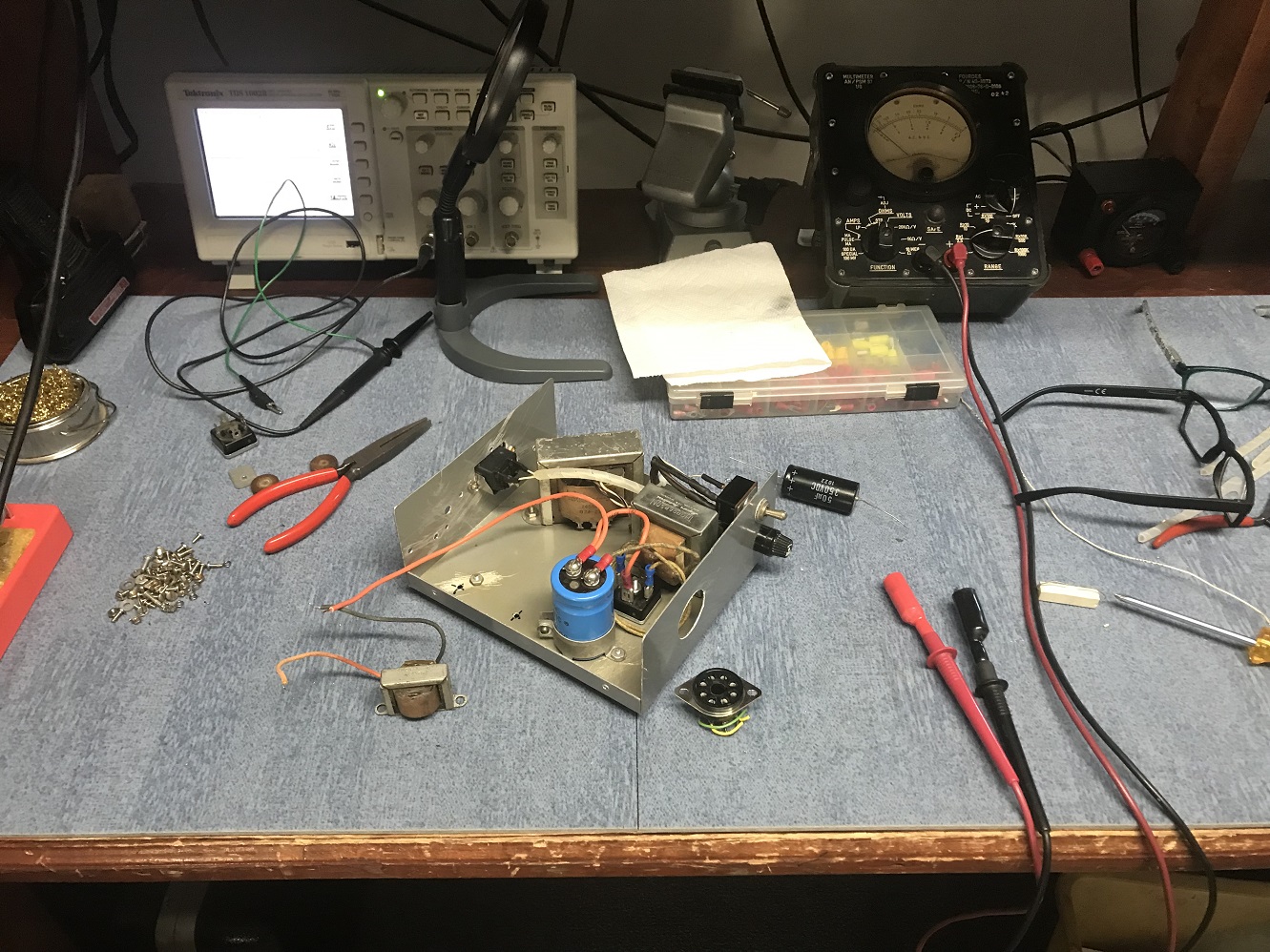

Just started building the AC power supply and will be doing a video of the radio when it's all finished. Too bad these things sell for so much because I would like to have one for myself, but at least this way get to play around with them while they are here in the shop.

Ray F/KA3EKH
