[MRCA] RT-601 re visit help

[MilComm Guy]

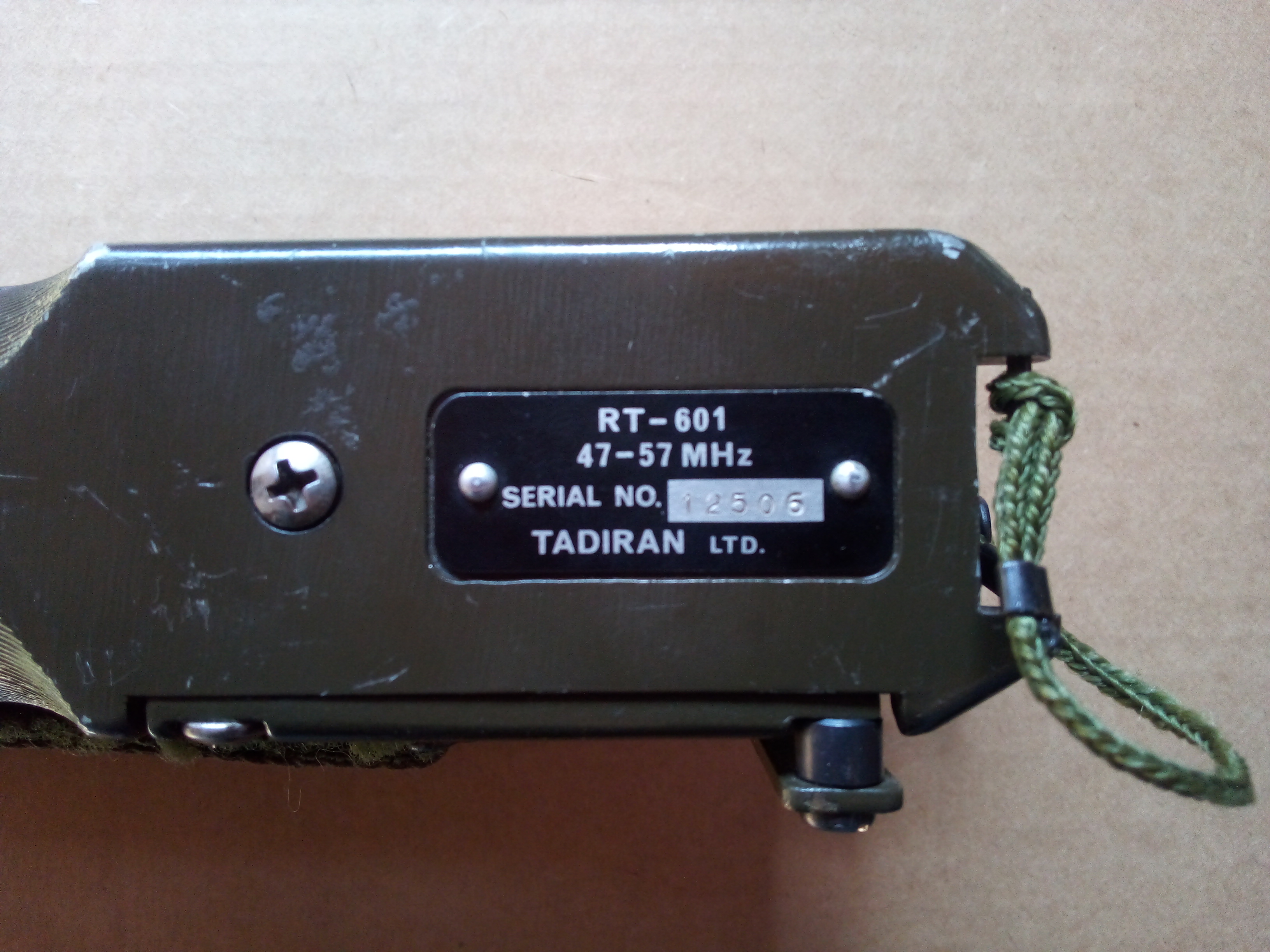

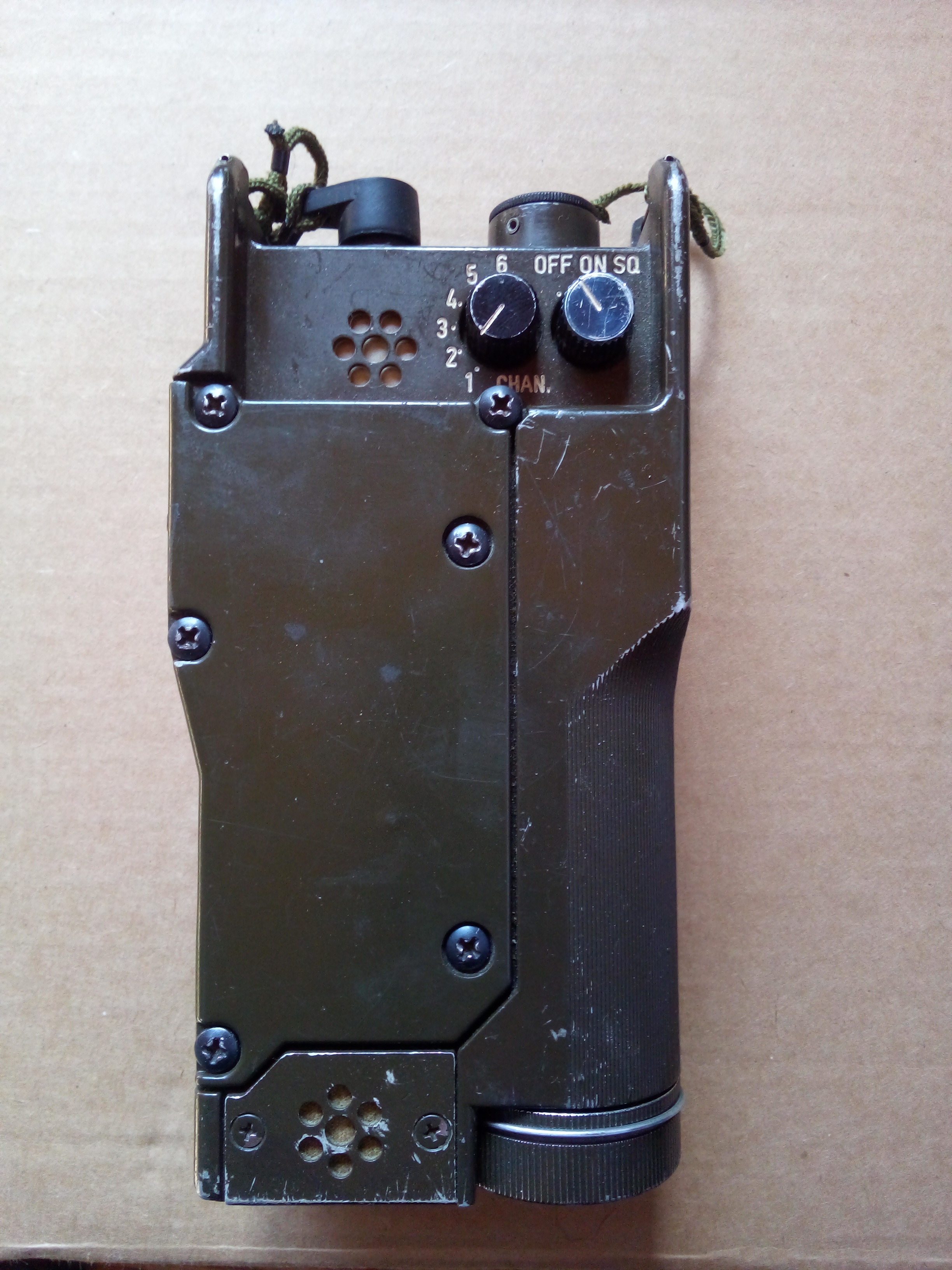

This is a Tadiran RT-601 47-57 mhz squad radio, 6 channels, one crystal for
tx/rx.  It had no crystals when I purchased it, only one article I found
listed the crystal number, I purchased one for 51 mhz and the radio works
on rx but will not lock on tx, it drifts just either side, this according

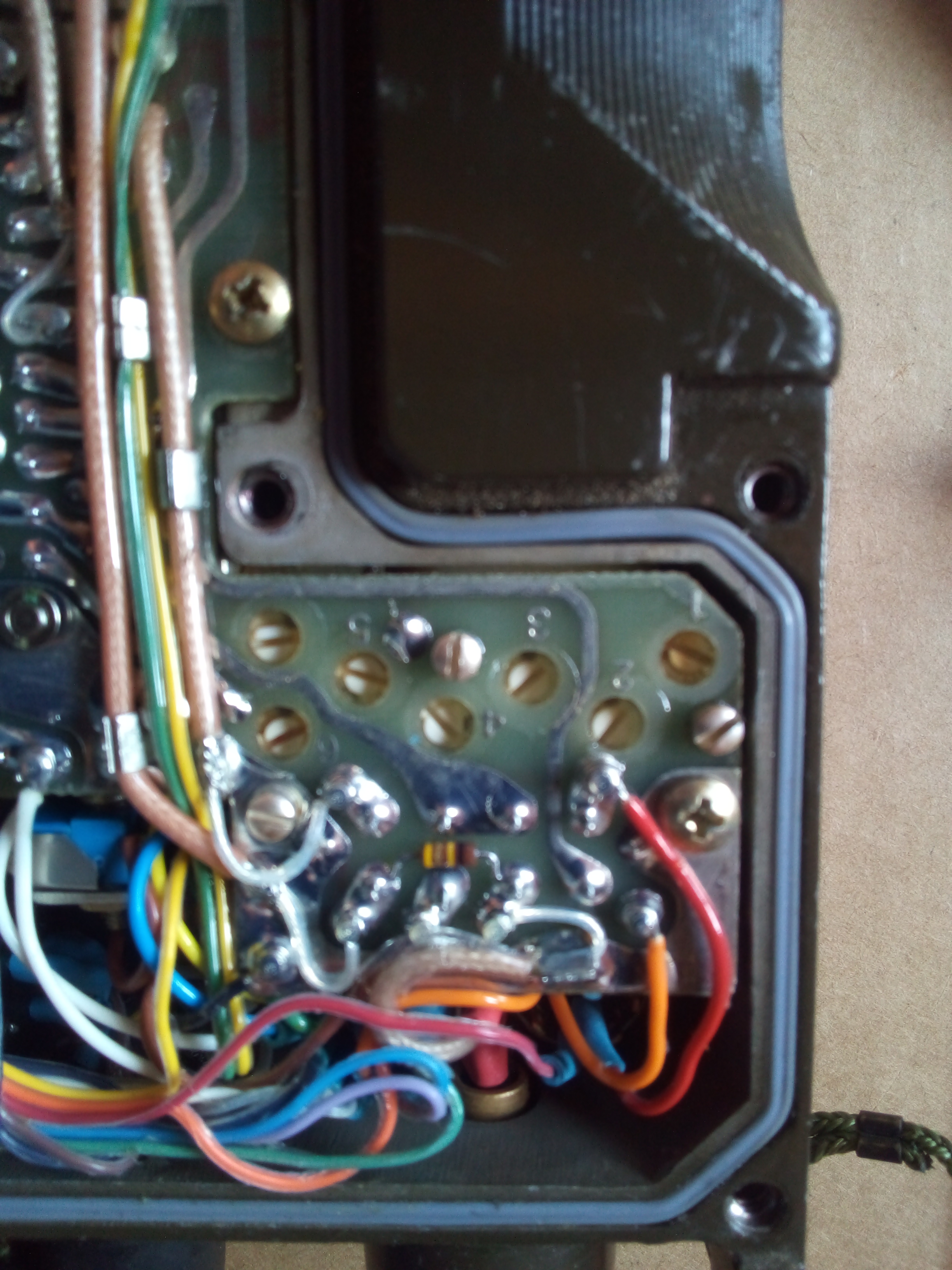

to my prm34 test set.  If you remove the strap side cover you can see
numbered adjustment screws which I believe are for tuning.  I am looking
for someone who would be willing to try and align this, I know it is a
challenge with no documents but with the rx working it may be a start.  I
will of course pay any expenses.

Thanks
Mark

K1HF
