[MRCA] Latest Project ART-13 Power Supply

[W2HX]

Very nice! How about some pictures of the guts?

From: mrca-bounces at mailman.qth.net <mrca-bounces at mailman.qth.net> On Behalf Of B. Smith
Sent: Tuesday, May 25, 2021 7:14 PM
To: Military Radio Collectors Association <mrca at mailman.qth.net>
Subject: [MRCA] Latest Project ART-13 Power Supply

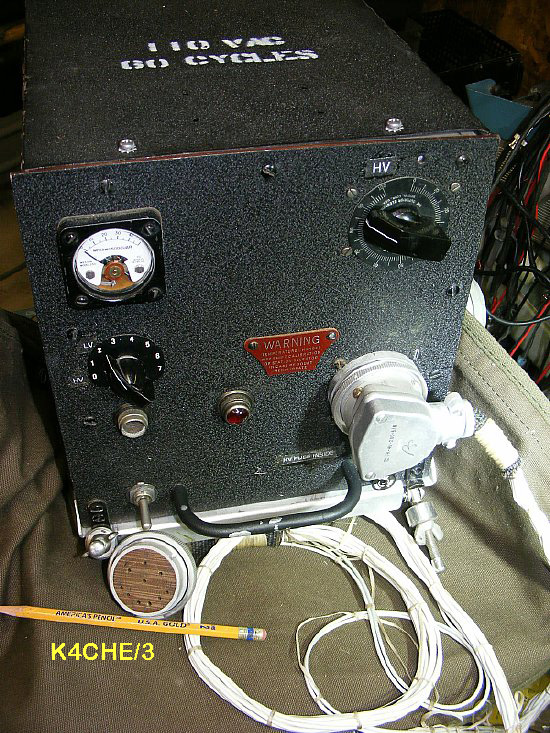

Latest project - - - a revised ART-13 power supply complete with its own shock mount.
     The knob located on the upper right controls  a variac to adjust the  High Voltage for high and low power. High voltage and low voltages are metered. K2AW diode packs.   Internal fuses for HV and LV protection. Connectors are standard. Black wrinkle paint from the local auto parts store.
[cid:image001.gif at 01D7519C.5B1A5780]
Z
[cid:image002.jpg at 01D7519C.5B1A5780]
