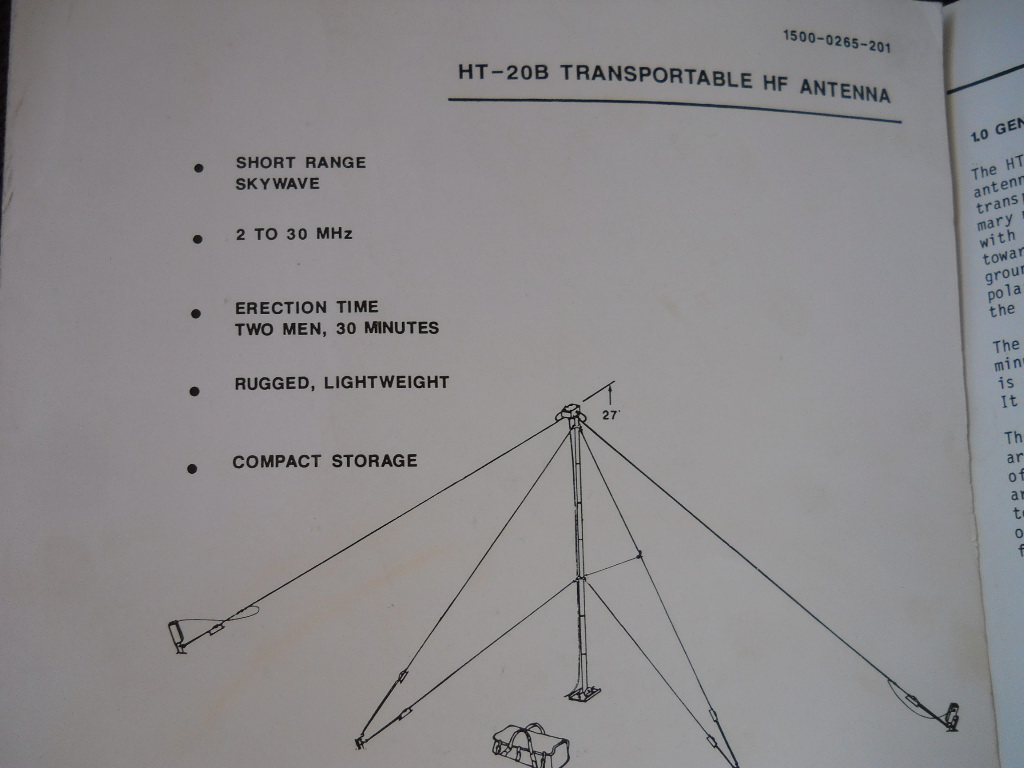

[MRCA] AS-4096/G or HT-20B HF Antenna ??? Additional Document

[Alex J Rokowetz]

Not the blueprints, but found something else for that particular site with that same antenna.  Perhaps there is something in there that might helpful to you or interesting reading for other concerned parties.
AlexK2AJR
Alexander J Rokowetz(516) 551-2498belarok at yahoo.comhttps://www.linkedin.com/in/alexanderrokowetz/


    On Monday, November 9, 2020, 01:35:16 PM EST, MilComm Guy <m38inmaine at gmail.com> wrote:

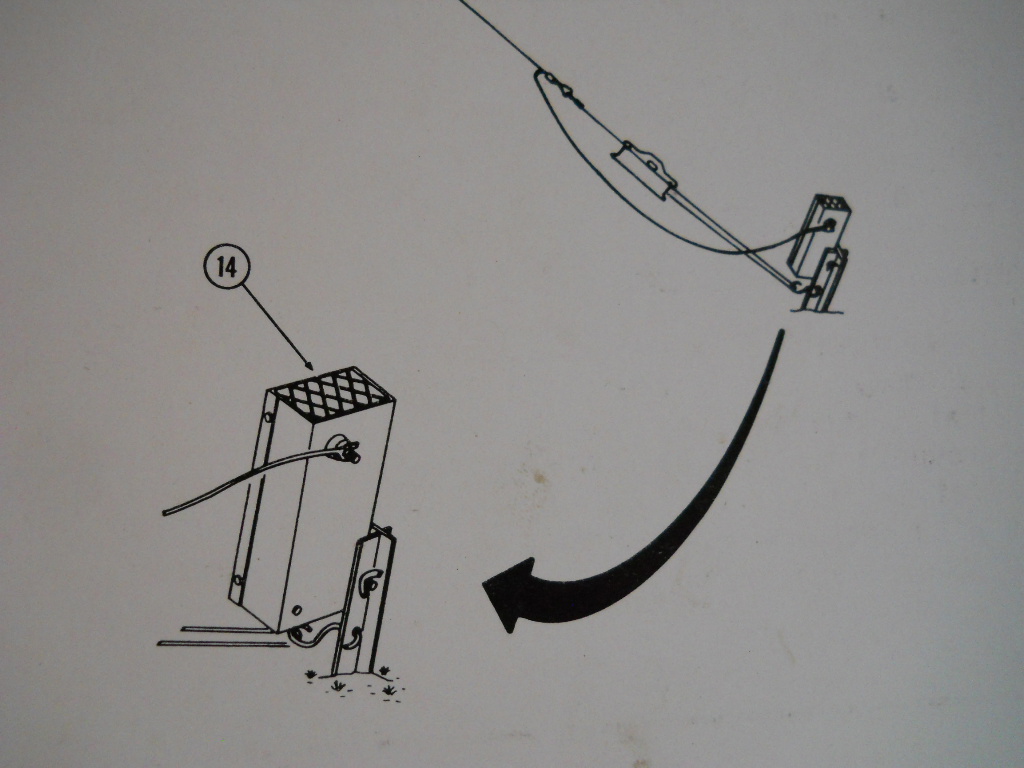

 I am looking to find information on the stakes that go with this antenna, if I could see a picture of an actual one and get some dimensions that would be great.  The manual picture shows two holes in the stake, however the termination box that attaches to the stake has wing nuts that are retained on the stud so as not to be lost so the hole in the stake would have to be slotted some how.

ThanksMarkK1HF
