[MRCA] AS-4096/G or HT-20B HF Antenna ???

[Alex J Rokowetz]

Mark,

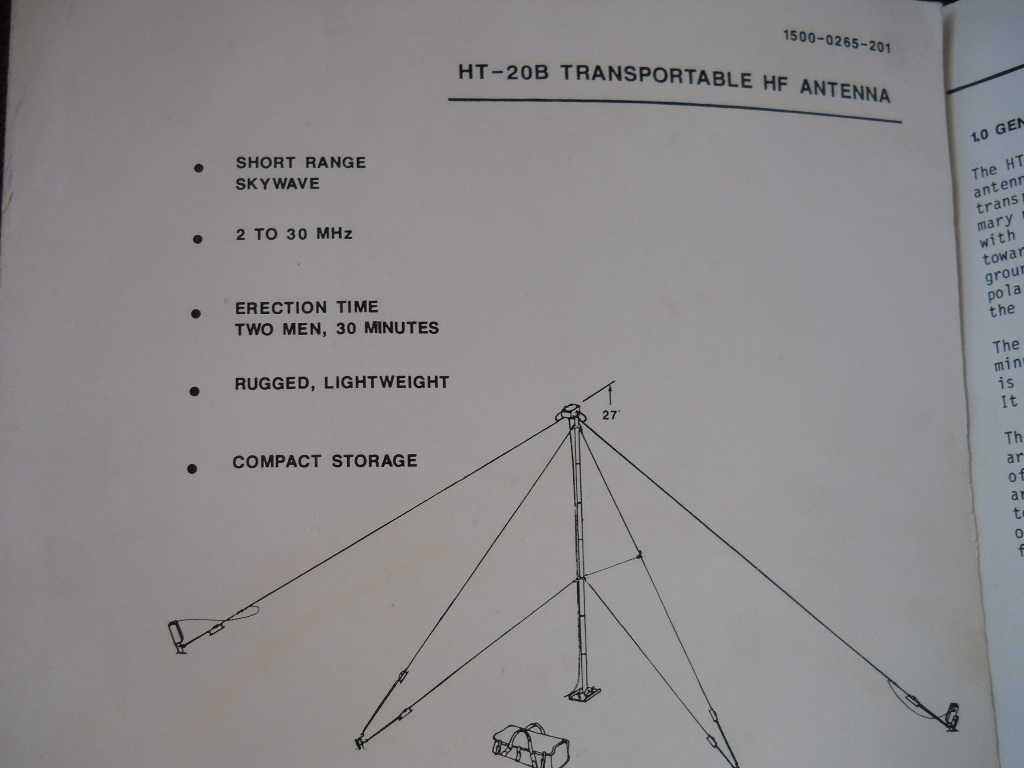

This looks very familiar to something I used in my career before becoming involved in amateur radio.  So I did a little digging in my archives. Please see attached manual and pics.  I wish I had taken better pics. I used to have blueprints prepared by some obscure part of the Air Force but I have no idea what happened to them after all these years.    I hope something here is useful to you.
Best 73 sir.
AlexK2AJR
Alexander J Rokowetz(516) 551-2498belarok at yahoo.comhttps://www.linkedin.com/in/alexanderrokowetz/


    On Monday, November 9, 2020, 01:35:16 PM EST, MilComm Guy <m38inmaine at gmail.com> wrote:

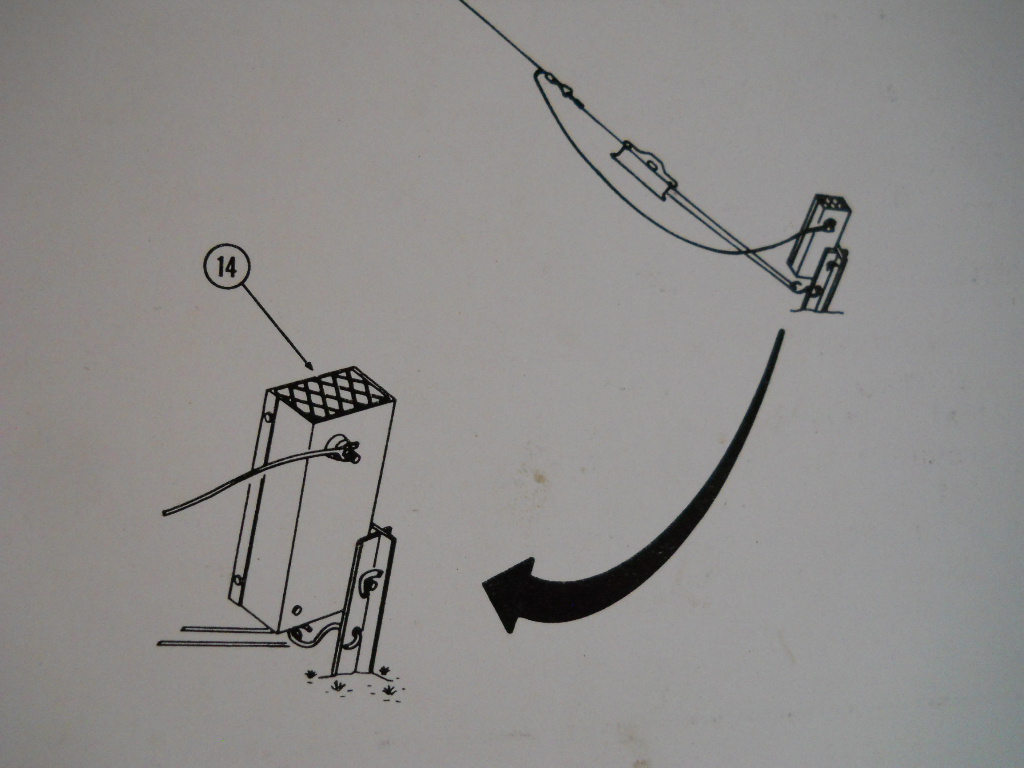

 I am looking to find information on the stakes that go with this antenna, if I could see a picture of an actual one and get some dimensions that would be great.  The manual picture shows two holes in the stake, however the termination box that attaches to the stake has wing nuts that are retained on the stud so as not to be lost so the hole in the stake would have to be slotted some how.

ThanksMarkK1HF
______________________________________________________________
MRCA mailing list
Home: http://mailman.qth.net/mailman/listinfo/mrca
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:MRCA at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20201109/73645686/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 800-T-T-1-J-HD Antenna System.PDF
Type: application/pdf
Size: 681688 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20201109/73645686/attachment-0001.pdf>
-------------- next part --------------
A non-text attachment was scrubbed...

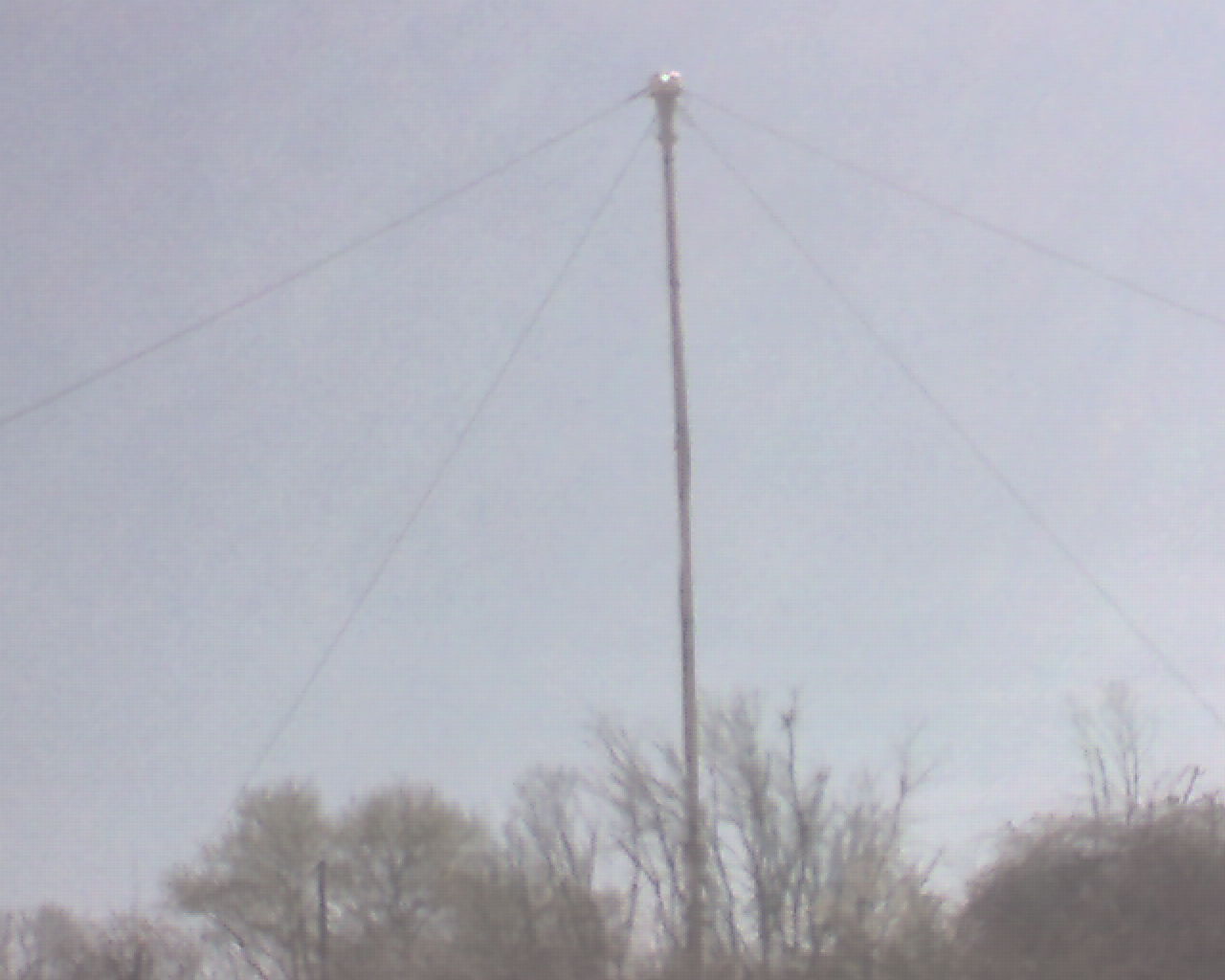

Name: Before Pic Dipole KNY56 .jpg
Type: image/jpeg
Size: 91227 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20201109/73645686/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

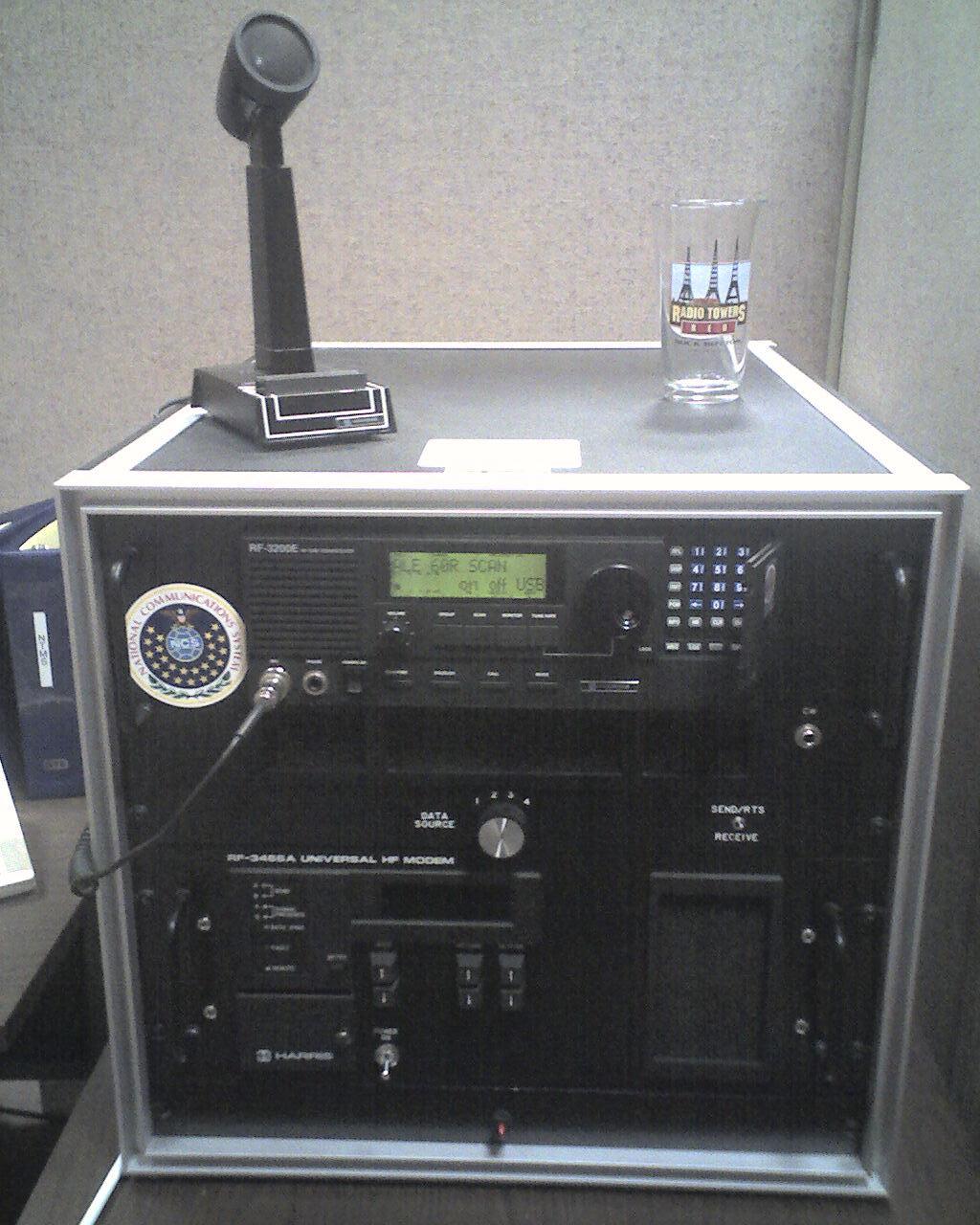

Name: HF Radio Pics 020.jpg
Type: image/jpeg
Size: 180619 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20201109/73645686/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

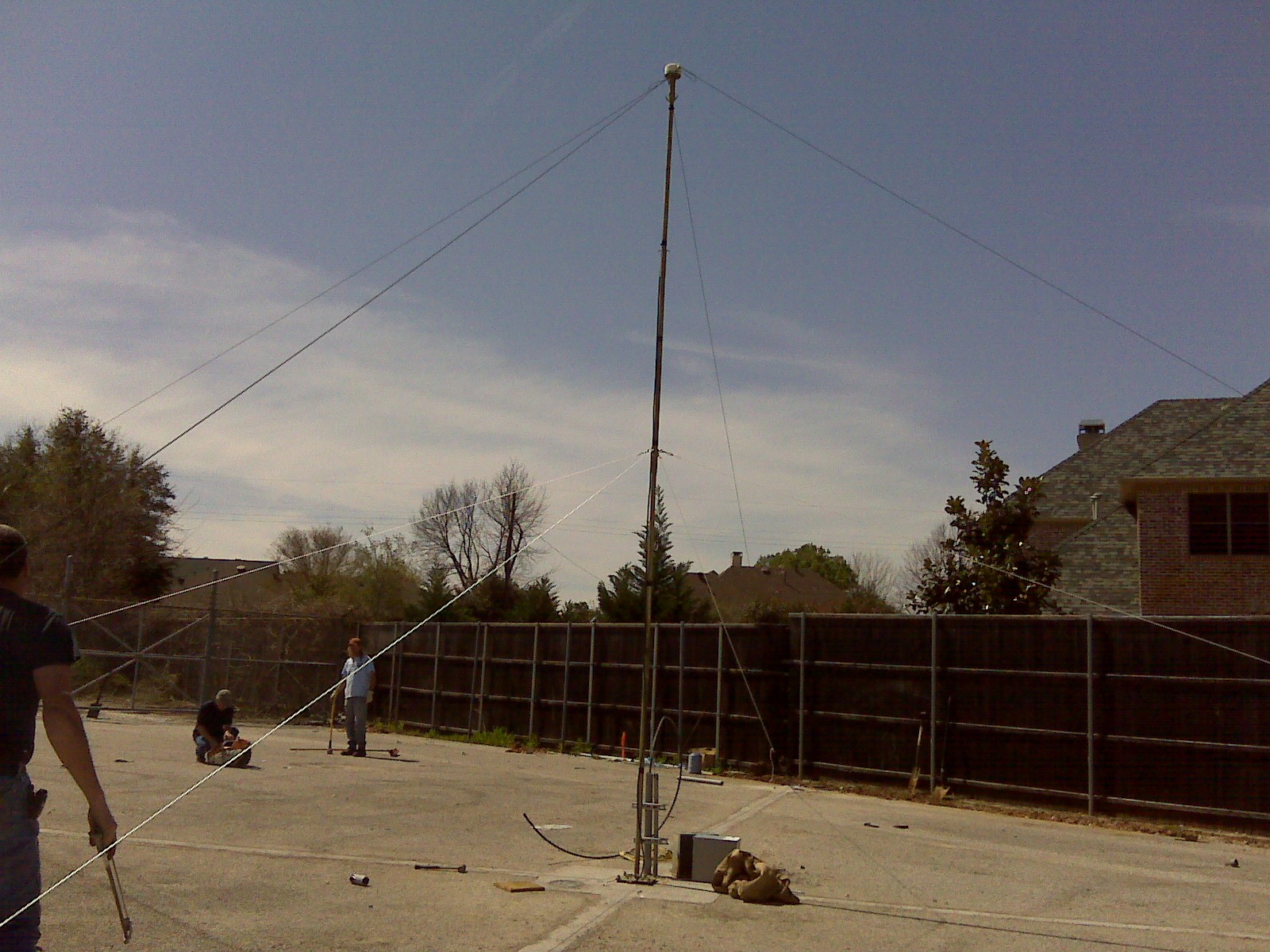

Name: View of Antenna for KNY56 at New Location (1).jpg
