Breck,

This design was laid down before the war started.  A lot of crystals
used 1/8" pins on 3/4" centers.  They fit perfectly across a 5-pin tube
socket.  They used big chunks of quartz, and US production was only
about 100K per year.

You're right about saving quartz.  That was looking like a real
problem.  It all came by ship from Brazil.  The FT-241's were developed
by/for AT&T once they figured out they'd meed literally millions of
rocks for the FM-mobile sets.  The Armstrong FM design started with a
crystal oscillator down in the 100's of KHz range, and multiplied up to
VHF.  The crystal itself is about 1/4" square.

Could be the FT-241 technology would not go down to 100KHz, but when you
look at the dial on a BC-1306 receiver, 200KC is close enough.  I have
wondered how often the assigned operating freq. was an even 200 KC to
keep things simple.

RE: Your Adaptor - Those FT-171 banana plugs are going to be pretty fat
for the tube socked.


Al

On 2/23/2019 1:04 PM, B. Smith wrote:
> Thanks for the info Robert.   If in doubt RTFM. As usual I am guilty
> of not reading the manual. :-[
> Looking at the crystal socket I have to ask the question as to why the
> designers used the 5 pin socket when they could have used a standard 8
> pin octal socket. I assume the original design used a special crystal

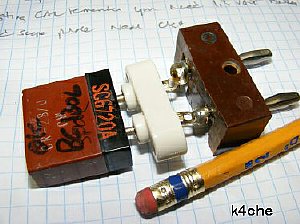

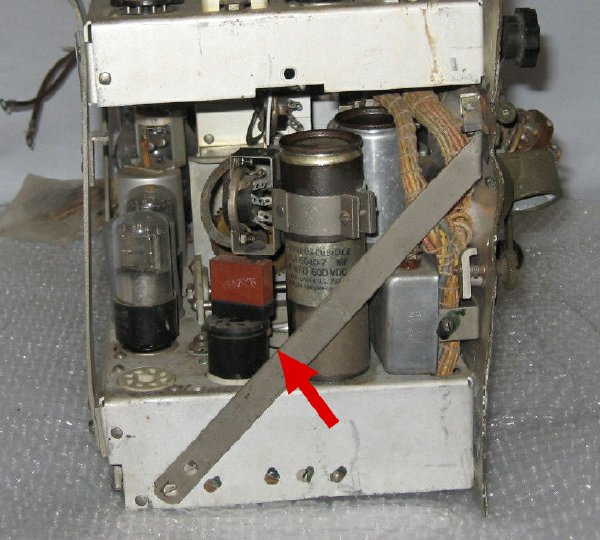

> holder the "DC-12"   that fitted the 5 pin socket. Photo of the socket
> is below.   I will have to work on my "five minute" adapter perhaps I
> can find a 807 that has gone South and salvage the 5 pin base. Then
> the question of using 200 kcs as a calibration point for so many
> different radios, BC-1306, GRC-9, ART-13 etc.  Was this 200 kcs
> frequency chosen to make it easier for the operator to calibrate  as
> he would not get confused with so many calibration points and perhaps
> use the wrong one on his dial?   Or was 200 kcs utilized to save
> quartz due to the smaller size of the actual quartz on the 200 kcs
> rock vs. the 100 kc?
> Z
>
>
>
> On 2/22/2019 1:03 PM, Robert Downs via MRCA wrote:
>>

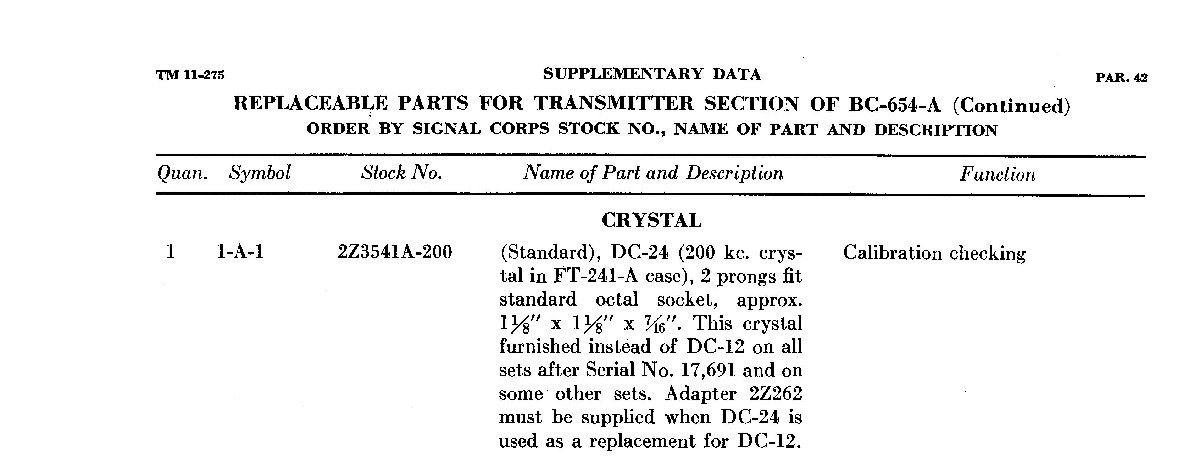

>> Yes. See attached photo.  And if you follow the list of superseded
>> Stock Numbers far enough, they both end up with the same number,
>> 2X97-200.
>>
>> I don’t know why the photo ended up attached instead of embedded.
>>
>> And it is the same crystal as ultimately used several other places,
>> such as T-47/ART-13, BC-652, etc.
>>
>> Robert Downs
>>
