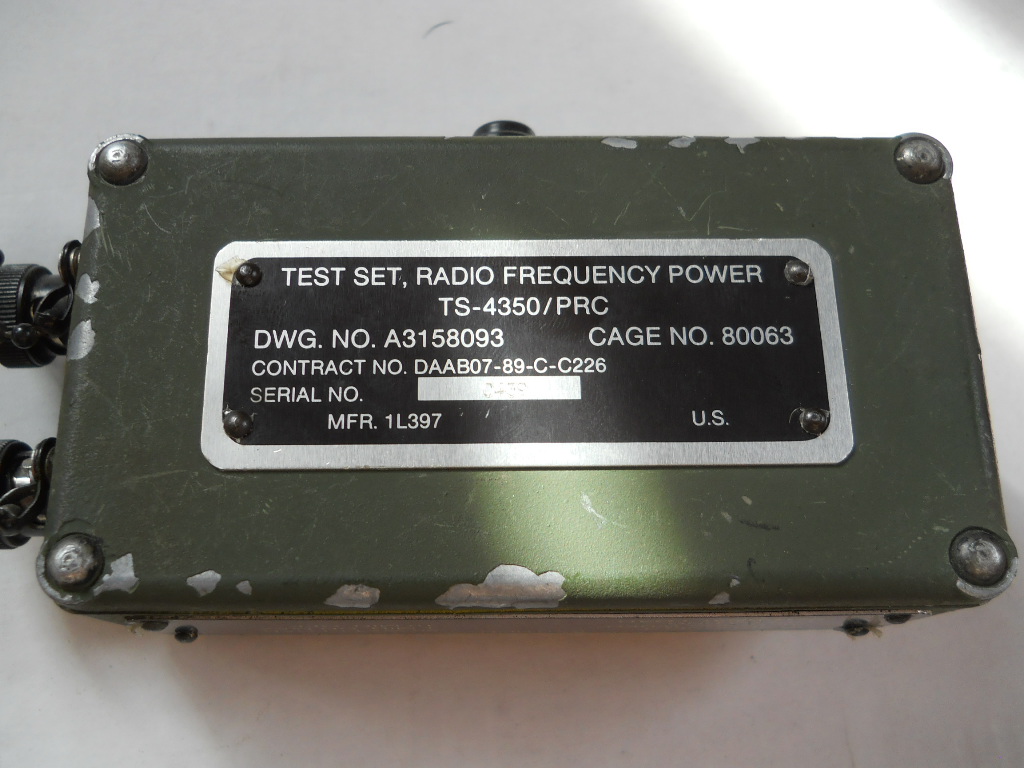

[MRCA] TS-4350/PRC SORAC SWR/Power Meter

[MilComm Guy]

W1AEA asked me about this meter he saw on my PRC-74 field set up, thought I
would share a few pictures of it.  They were issued with the SORAK antenna
kit, not aware of any other issued application.  All the pictures I have
seen of them the meter was broken, it is plastic and will not take much
abuse.  This little guy nests in a pocket in the kit which gives no

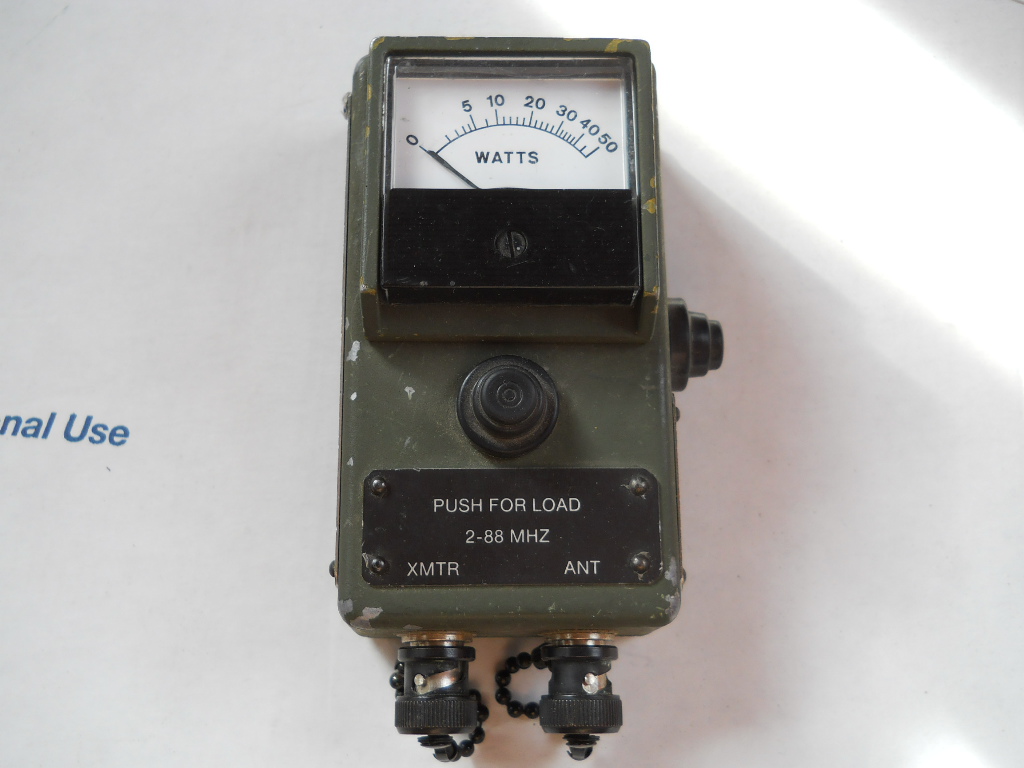

protection, I doubt many of them would survive.  It covers 2-88MHZ, has two

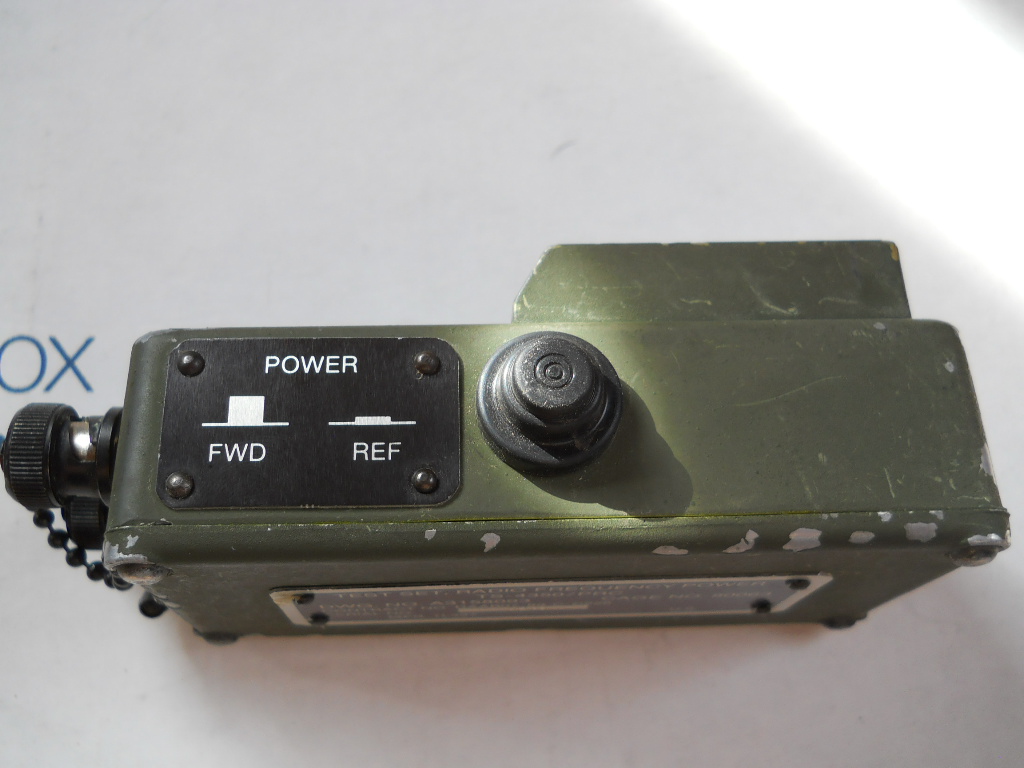

BNC connections, shows forward/reflected power and has a "load" feature,
maximum power is 50 watts.  Makes a handy "green" meter for field ops.  I
found this in a grab box at the Weare rally a few years ago.

73
Mark
K1HF
[image: DSCN4983.JPG]
[image: DSCN4984.JPG]
[image: DSCN4985.JPG]
[image: DSCN4986.JPG]

73
Mark
K1HF
