[MRCA] BC-654 Push Button Switch

[mkdorney at aol.com]

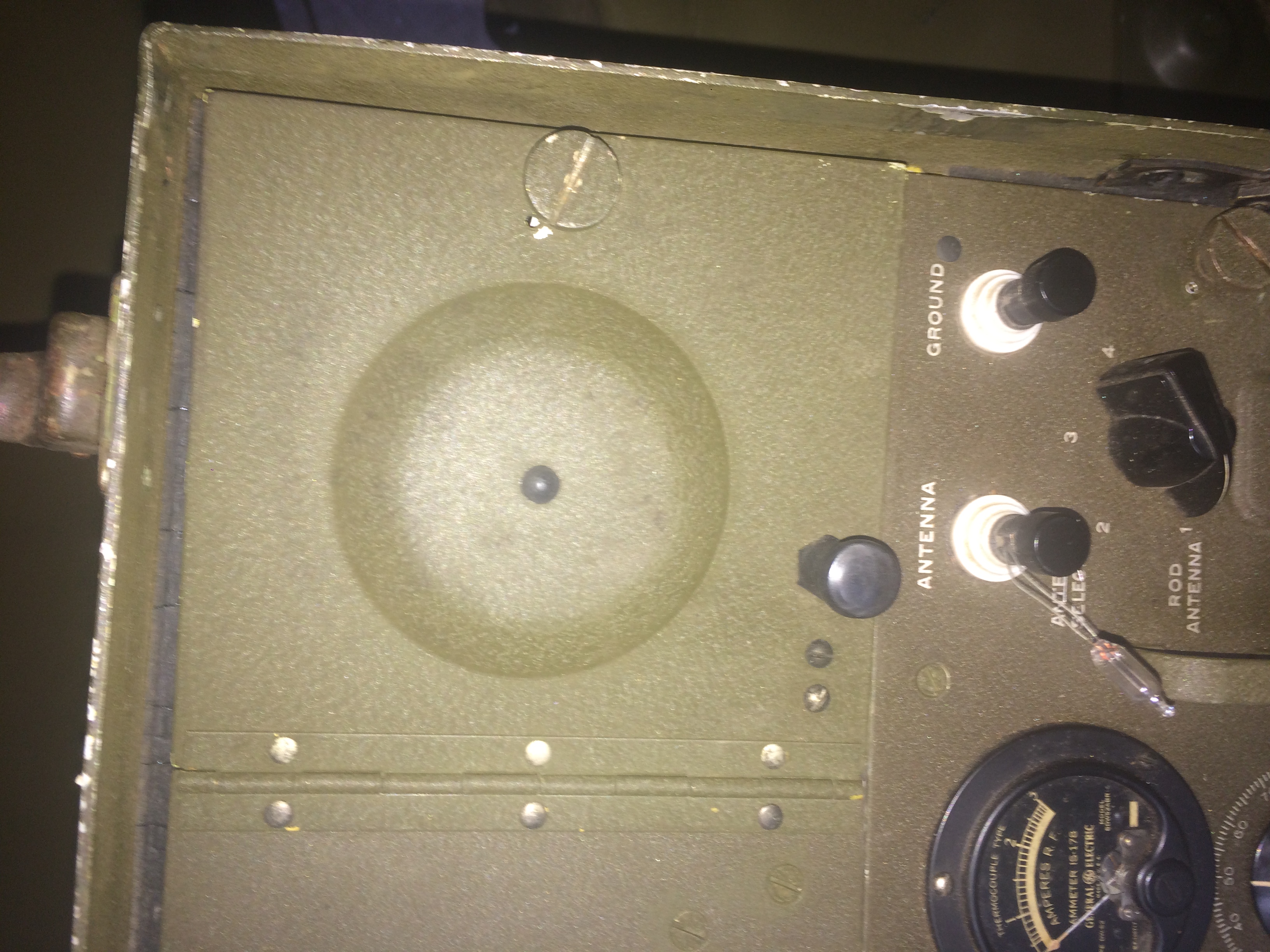

My BC-654 in it's natural habitat, my Dodge 3/4 ton WC-52 Weapons Carrier.  Pictures of the Knob on the outside of the door, and the mechanism on the inside of the door. Pictures in the Attached file.
73MarkWW2RDO

In a message dated 9/17/2018 6:05:57 PM Eastern Standard Time, mkdorney at aol.com writes:

I know I have the power interlock for the PE-104, but if I remember correctly, that switch is entirely internal. I seem to remember a door latch being located where your arrow is. I’ll look when I get home from work tonight.

Mark
WW2RDO

Sent from my iPhone

> On Sep 17, 2018, at 5:57 PM, B. Smith <smithab11 at comcast.net> wrote:
>
> Hi
> Mark
> We are referring to the push button switch that is activated by pushing on the knob indicated by the arrow. If your set is complete you should have a slide switch mounted near the front of the PE-104/Battery compartment but you may be missing it.
> Z
>
>
>> On 9/17/2018 4:06 PM, Mkdorney wrote:
>> The switch located underneath the PE-104/BA-43 is a power interlock that prevents the radio from operating unless the door to that compartment is closed
>>
>> 73
>> Mark
>> WW2RDO
>>
>> Sent from my iPhone
>>
>>> On Sep 17, 2018, at 2:24 PM, B. Smith <smithab11 at comcast.net> wrote:
>>>
>>> What is the purpose of the "Push Button" switch located on the PE-104/BA-43 Battery door of the BC-654.      I can read a schematic and see what actually voltages are disconnected  by  the 3 pole 1S7, normally closed switch  - - - but the questions is Why? What is its operational purpose. No mention in TM 11-275.
