Ray,

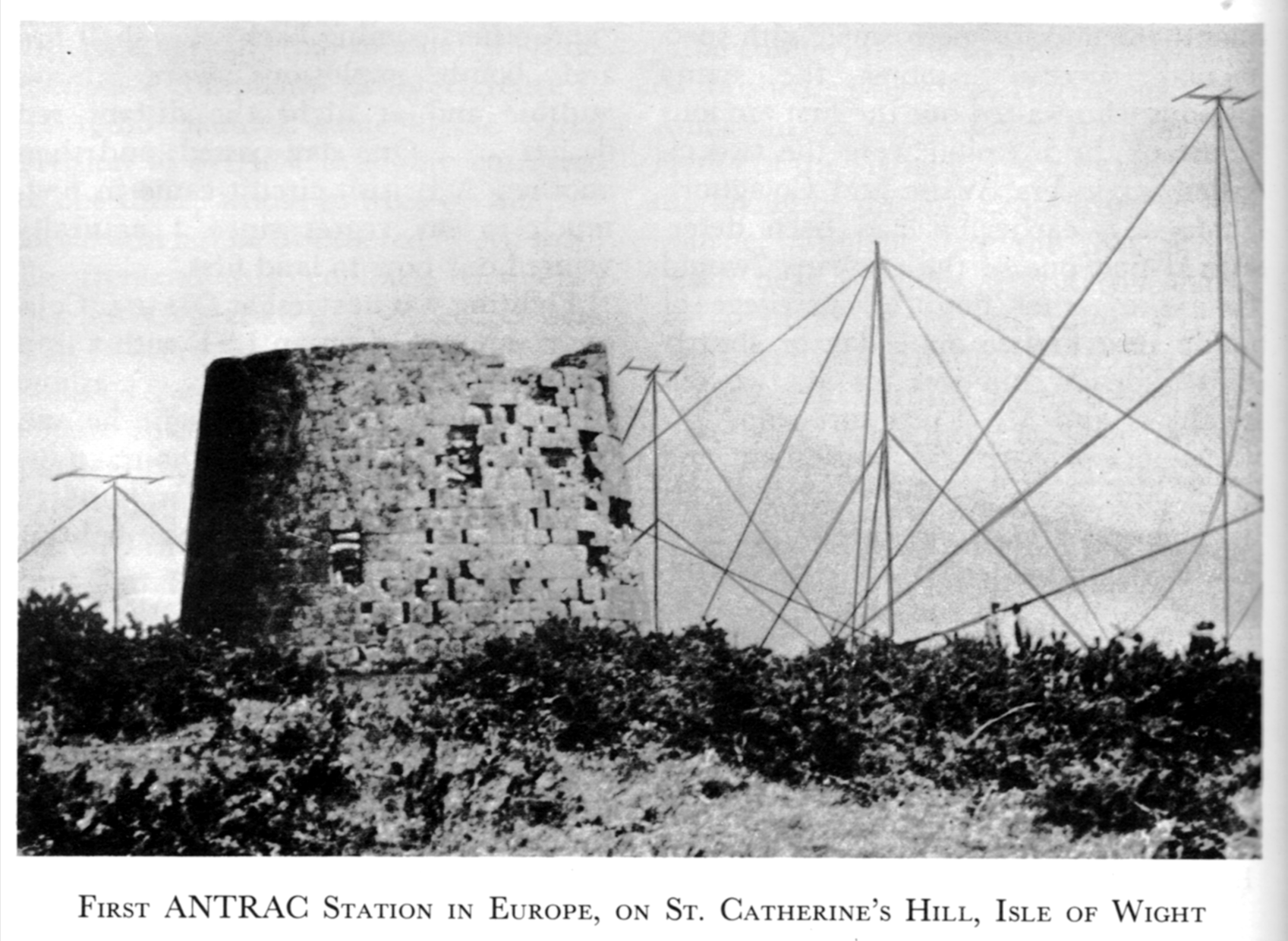

You mean like this?






That's quite an ambitious project.  How may truck you got?

73,
Al

On 5/25/2018 2:25 PM, Ray Fantini wrote:
>
> All of this talk about frequencies and licenses makes me want to rant
> about one of the stranger projects that I want to do. For no
> particular good reason I want to build up a AN/TRC -3 four channel
> carrier phone system for use somewhere, maybe at Gilbert or wherever.

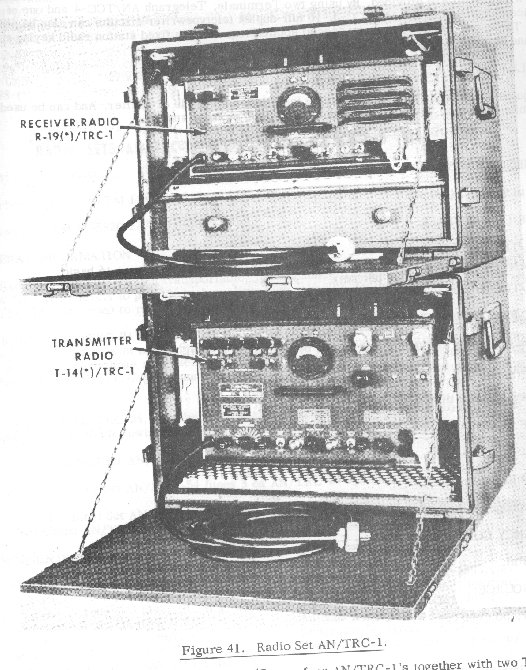

> For those of you uninitiated the TRC-3 is a pair of TRC-1 receivers

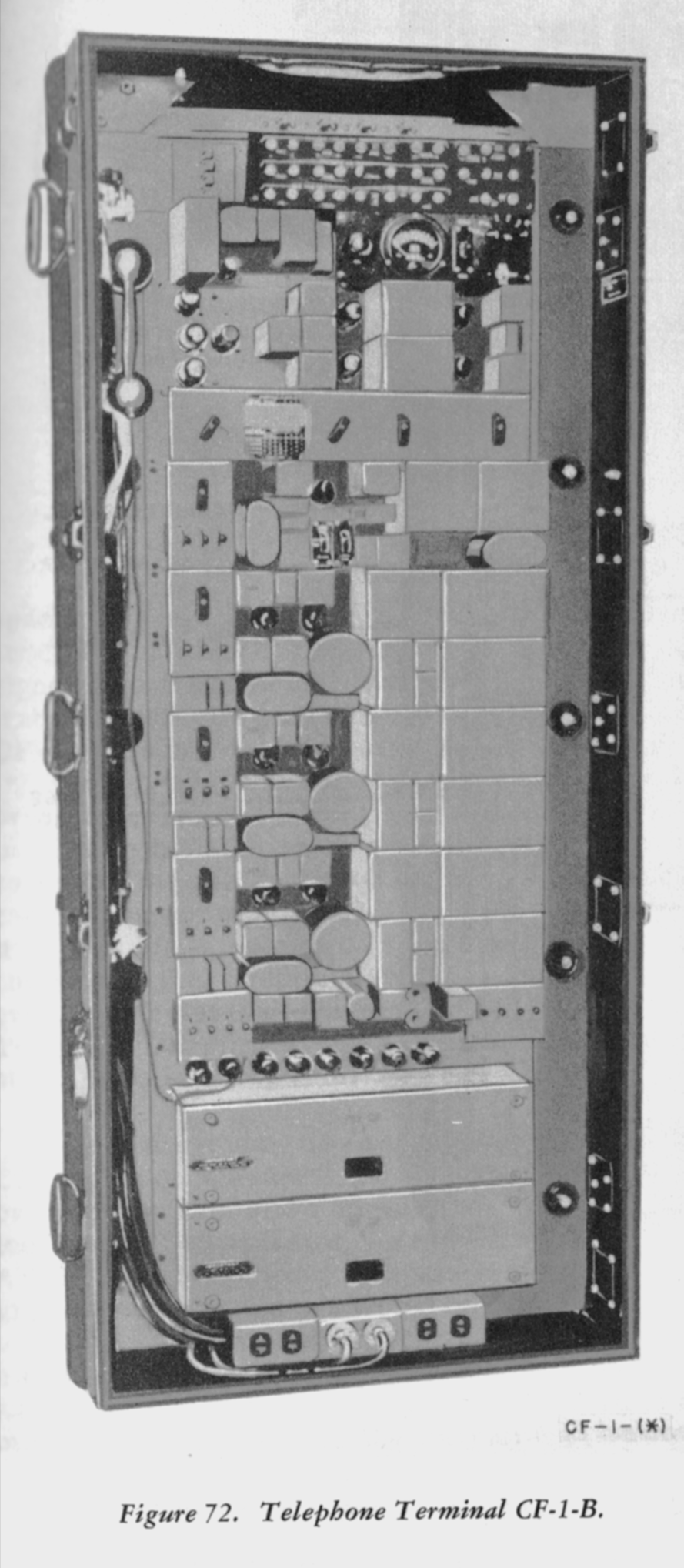

> and transmitters along with a CF-1 Carrier telephone terminal. Have
> seen lots of TRC-1 radios around for sale and no one ever appears to
> buy them considering that they are wide band audio and operate by
> crystal control in the 70 to 100 MHz range.
>
> For years now I have wanted to attempt the challenges of locating all
> the parts like the telephone multiplexer, spiral four cable and the
> very mysterious TRC-1 antenna kit that I have never seen yet alone saw
> one for sale. But the biggest issue is the operational range being
> above six and below two meters. Think there may be some sort of pager
> operations or something like that in the 70 MHz band but not certain.
>
> Also would be interested because this will be one of the rear
> occasions where I admit I don’t know it all but was there multiplex
> carrier equipment for use with the VRC-12? I have a log periodic kit
> that its label implies that it’s for a multiplex system in the 30 to
> 80 MHz band and maybe a Vietnam era system would be more appropriate
> to what I want to do.
>
> At Fort Miles when I do things there they have a couple people that
> are into the wire line communications way of life and thought this
> would be a great opportunity to integrate wire line with radio beyond
> just doing a simple signal pair remote control. And there does appear
> to be a lot of that TRC-1 stuff around. Was any of it ever modified
> for two meters? I have no issues running wide band FM across someone’s
> repeater input.
>
> Ray F/KA3EKH
>
>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
