Mark,

*Commo wire!!!*

NVIS antennas are generally what half-assed hams had been doing since
being banned to 200-meter and down.  A low half-wave wire will get you a
lot of high angle radiation.

The vertical antennas on WWII HF gear were really only appropriate for
"direct wave" communication, say 10-20 miles.  And, they were woefully
inefficient, being only a small fraction of a wavelength in height.
When you were sitting still, you threw some wire in a tree for better
results.

http://www.mrca.ar88.net/Old%20Pages/Net/Images/Dipole%20vs.%20Whip.png

So, What's Wrong with My Whip?
Your signal is shown in red.  (Low half-wave in blue.)

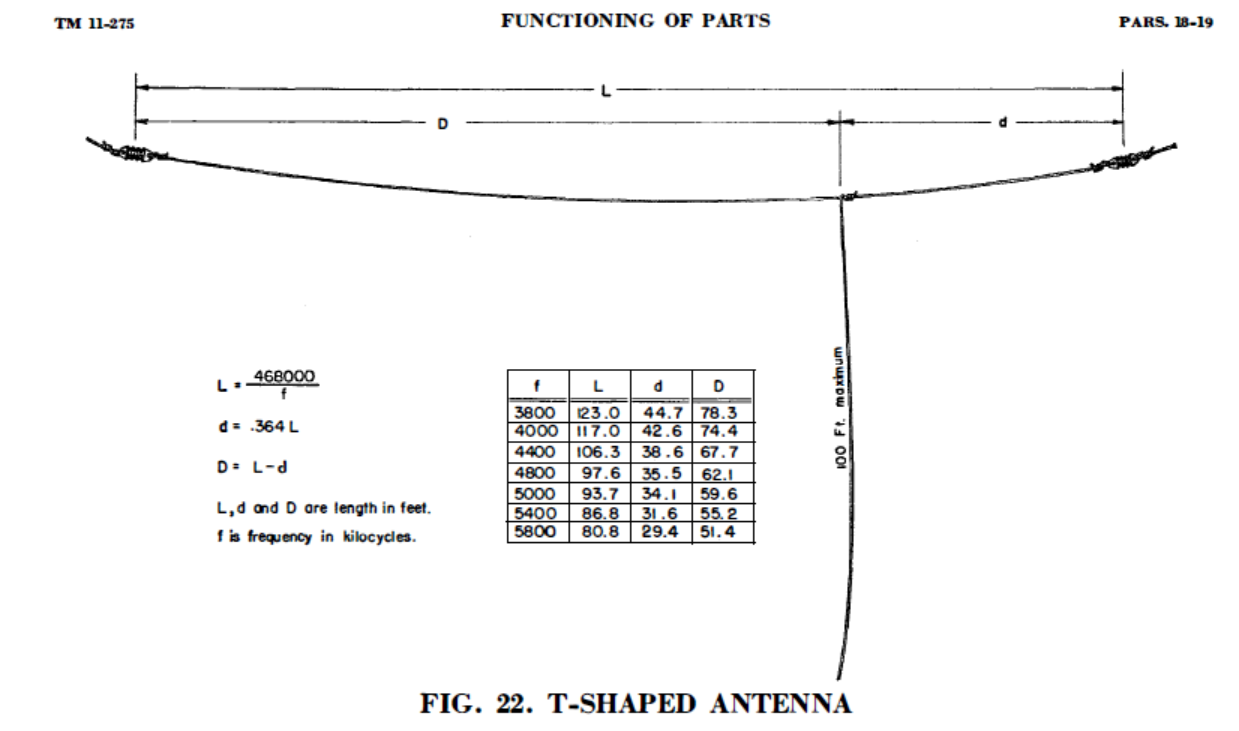

The SCR-284 TM shows a "T-Shaped Antenna." (That's a Windom)



Of course, one of the big problems for useful, 24-hour NVIS is that the
early portable sets were all stuck on one band around 5000KHz.  This
explains why the the SCR-694 / BC-1306 (3.8-6.5 MHz) was being replace
by the AN/GRC-9 (2-12 MHZ) as the war drew to a close.  Both radios came
with end-fed half wave antennas in addition to whips.

Enough from me!
Al

On 1/21/2018 11:35 AM, WW2RDO via MRCA wrote:
> I know that the American, British and German Army first started using
> NVIS antennas for some of their HF radios during World War Two.  So
> far, I'm having trouble finding much information about how far each
> military went as far as NVIS antenna use, or any photos of any WW2
> vintage antenna.
>
> So here's what I'm trying to build.  I'm looking to build an NVIS
> antenna for the BC-654 using only material available during WW2.  That
> would include any balun or any additional antenna tuner to be used
> with the radio, if they are needed.  I am unaware of any issue NVIS
> antenna issued for the BC-654.   Particularly concerning is the fact
> that the BC-654 did not use coaxial feed line for the antenna.  I know
> the AN/GRC106 had an NVIS antenna, the AS-2259GR ,  but I see that the
> AN/GRC106 used a coax antenna feed line.  I am not sure that the
> AS-2259GR  antenna, even if I could find one, would work with a BC-654.
>
>
> Mark D.
>
>
