Hello Everybody,
       Thank you for the very appreciated  help. I was able to find out
much about this set once it was  identified.  So I did a little digging,  Of
course, I share what I get  with the group.  Here's what I came up with

SCR-178

Components:


BC-186 -A             Receiver
BC-187- A             Transmitter
BC-188-A               Modulator
BX-4                     Battery  Box
GN-37                    Generator ( hand Cranked ) 8 volt and 500 volt
Ch-38                    chest
CH-39  -                 chest
CD-125                 Power cord
IN-85                    Antenna  Base
MS-49 -MS 56       Antenna Sections
J-44                       Morse code key
T-17                       Microphone
HB-7                      Headphones   ( varied by year of manufacturer )

Batteries ( Receiver)
BA-2      4 ea       22.5 volt
BA-23    4 ea      1.5  volt
BA-27    2 each   Multi-tap  4.5 volt, 3 volt  and 1.5 volt


Operating frequencies were 2.4 - 3.7 mHz

Replaced by the SCR-608, SCR-609 and SCR-628


Army Motors is putting this picture inside the front cover of their next
issue and was looking for some info on the radio.

Again, many thanks.

Mark
WW2RDO





In a message dated 10/16/2017 8:55:42 A.M. Eastern Daylight Time,
ark at ar88.net writes:



SCR-178 See:  http://people.csail.mit.edu/sw/html/NS1W/scr-178.html

73,
Al

On 10/16/2017 8:31 AM, WW2RDO via MRCA  wrote:

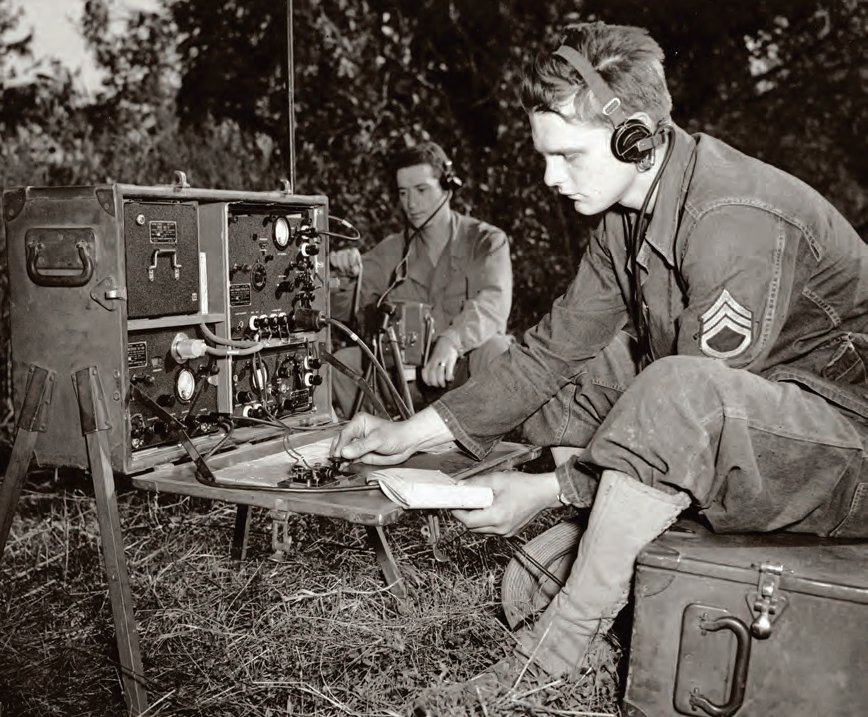

Anybody got any idea what this radios is?  Picture taken in   October,
1942, stateside.




73

Mark
WW2RDO
