[MRCA] AR-11 and PRC-5

[Al Klase]

Folks,

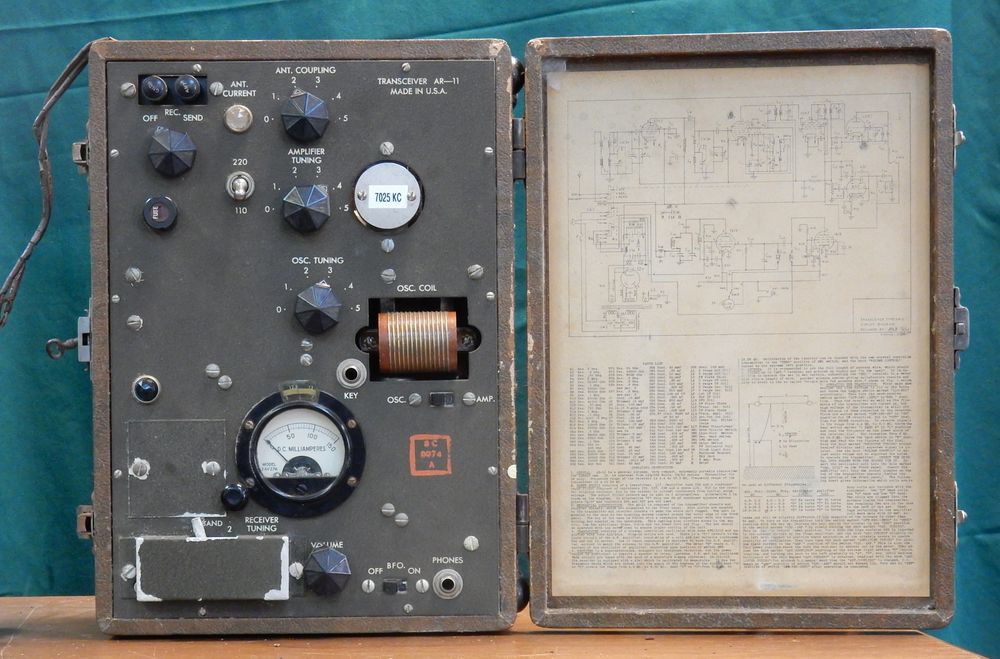

A discussion on another group caused me to photograph the Signal Corps
AR-11 in the Radio Technology Museum.  This radio is described as a
"Compact Transceiver for Covert Action."  The design morphed into the
AN/PRC-5 by widening the front panel, and bringing the plug-in antenna
coil out from inside the case.



See:  http://www.skywaves.ar88.net/SPY/AR-11/AR-11.html

Do we know anything about the application of these sets?  Seems to be
Army Intelligence rather than OSS.

 From reading the schematic, it looks like a poor excuse for a CW
receiver.  There is a BFO, but no RF gain control.  I'm sure the AVC
will desense the receiver when the BFO is turned on.

Page includes a reasonable scanned copy of the AN/PRC-5 TM.

Al


--
Al Klase -- N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
