[MRCA] T-91/VRC- 4 and R114/VRC-4 Radio Set For Sale

[Radio Station KW1I]

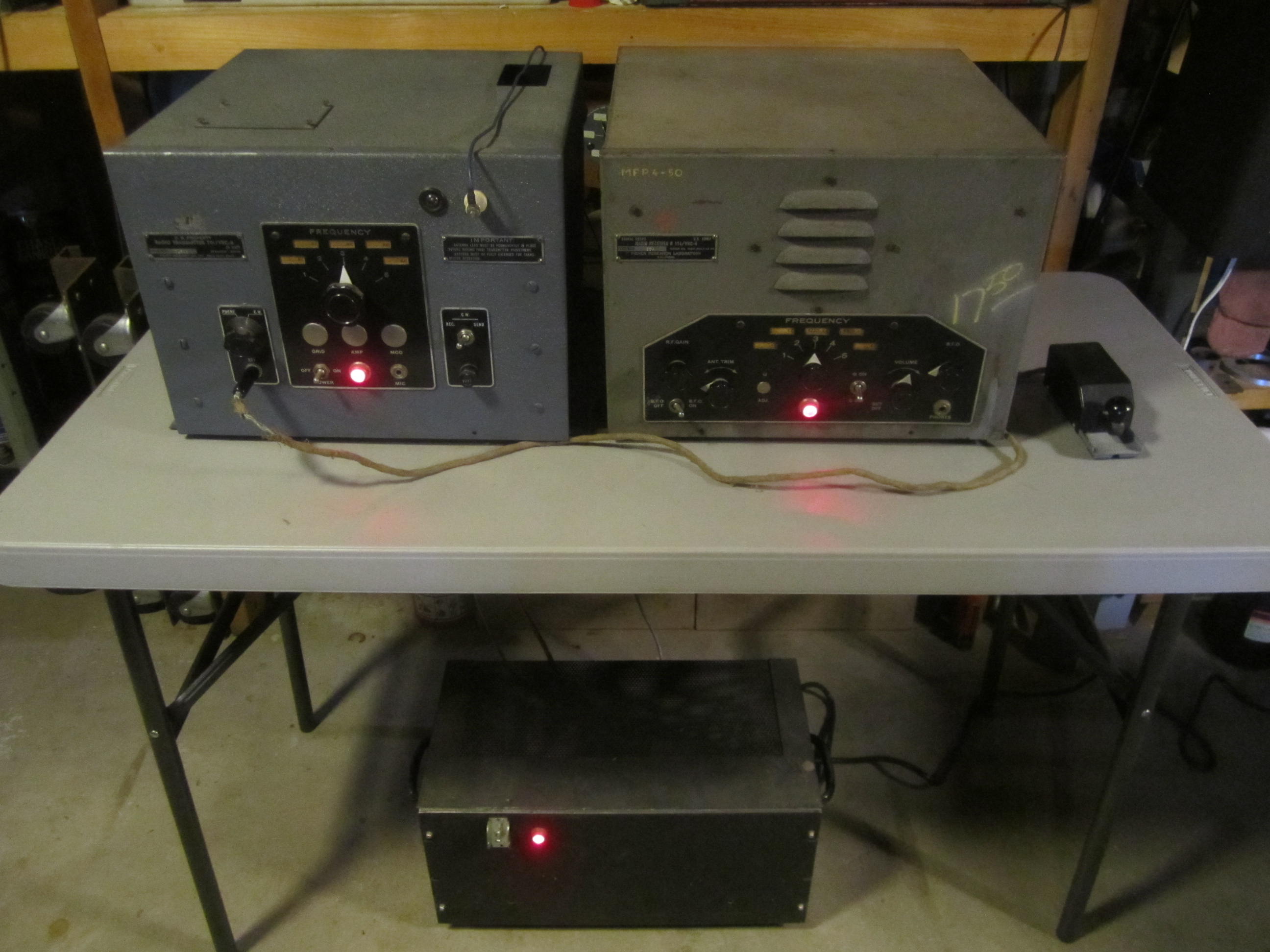

Late World War II era radio set with homebrew power supply and complete
VRC-4 Tech manual, TM - 11-829 for sale; $150

“The AN/VRC-4 is a 25 watt vehicular radio station, providing two-way voice
and c-w (continuous wave) communication from fixed or mobile positions...”

Transmitter:
Frequency Range:
        Four preset channels, xtal controlled  1.7 - 8.7  mHz
        One tunable channel                                4 - 8    mHz

Tubes:   6V6 Osc, 807 PA, 2-6L6 Modulator

Receiver:
Frequency Range:
       Four preset channels, xtal controlled   1.7- 8.7  mHz
       One tunable channel                           190-510   kHz

Tubes:   6SK7 (3), 6K6, 6K8, 6SQ7 (3)

The radio set is in good working condition.  The key in the picture is not
included in the sale.

Email requests for information or additional pictures.

The radio set can be delivered to the MRCA Meet or NEARfest.

kw1i at earthlink.net
