[MRCA] RS-6 GRC-109

[Al Klase]

Breck,

I have to believe that's the cable that goes with the GN-58 in the RB-47
kit.  As Robert points out, the RS-6 breaks down into four units.  The
RP-4 "Power Supply" contains the power transformer, vibrator, and
rectifier tube.  The RA-6 "Filter-Accessory Unit" incorporated the
filter caps and the transmit-receive switch.  It also terminates the AC
and DC power cords and and acts as the interface between the RP-6 and
the RT-6 TX and RR-6 RX.  It has a 6-pin male plug on its side that will
accept HV and LV DC from the GN-58 via your cable, rather than from the
RP-6.

Did you get the thing?

Al

On 3/18/2014 7:26 PM, B. Smith wrote:

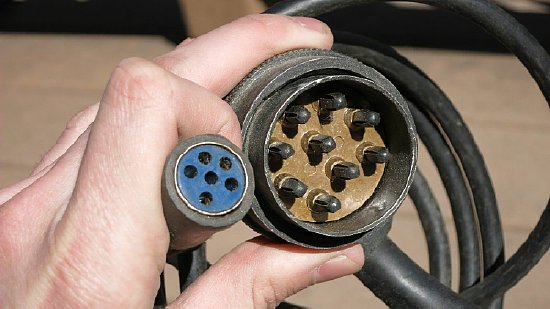

> Now my question is: Has anyone seen this cable before and if so what
> kit was it in?
>
> Obviously it is going to power the transmitter direct while the
> receiver runs off of batteries. Speaking of the BA-48 battery, photos
> of my rebuild can be found at:
> http://k4che.com/BA48/BA48pg1.htm
>
> Z
>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Al Klase -- N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
