[MRCA] Today's noise report

[Al Klase]

Hello Eugene,

While we're on the subject, it's a good idea if we're talking about
something like the same thing.

Wikipedia's S-meter article states that by International Amateur Radio

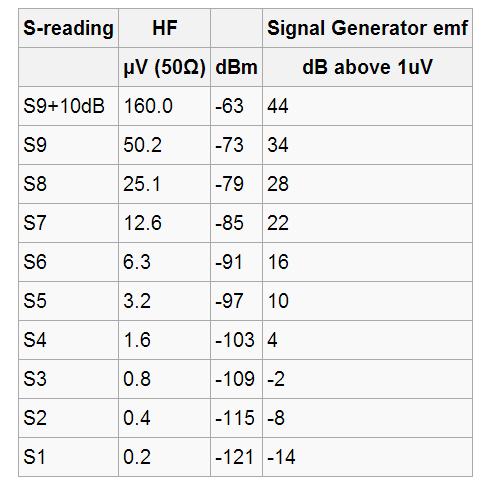

Standards S-9 = 50 uV in 50 ohms, and an S-unit is 6 dB. Here's their table:


And from a handy calculator:
http://www.giangrandi.ch/electronics/anttool/decibel.html

1 uV = 0 dBuV = -107 dBm

I've been unhappy with my noise level on 5357 KHz.  It's a constant S-5
on the pencil-drawn sticker around the S-meter on my Transworld TW-100,
that I had calibrated with my HP-8640 signal generator. This agrees with
the S-5 reading on my Icom R-9000 and the -96 dBm (11 dBuV) reading on
my HP 3586 Selective Level Meter.  I'm only able to do what it do here
on 60M because I use a Timewave DSP-59+ audio processor to beat back the
noise.  Noise here is mostly white noise, and I've been unable to reduce it.

Your 35 dBuV noise level (-72 dBm) is almost exactly S-9, which likely
leaves you pretty deaf.

You've like heard all the fixes.  Get started.


With apologies for the technoweenie freakout, 73,
Al




On 3/18/2014 12:25 PM, W2HX wrote:
>
> I did some calculation to quantify the noise at my qth.  Today the
> noise as shown on the receiver is a healthy 35 dBuV (receiver's meter
> is dBuV instead of an "S" meter) which equates roughly to 56 uVrms
> (microvolts RMS) at the antenna connector.  Better than usual which is
> a robust 40 dBuV or about 100 uVrms!  So needless to say, no M&S joy
> today L
>
> Time to work toward tracking down the source of the noise and getting
> it eliminated. And in the meantime, I will likely install a receiving
> H loop.  I've also read good things (believe it or not) about the
> MFJ-1025 noise canceller. Anyone ever try such a thing?
>
> 73 Eugene W2HX
>
>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

--
Al Klase -- N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
