[MRCA] MRCA Digest, Vol 119, Issue 13

[Al Klase]

Tom,

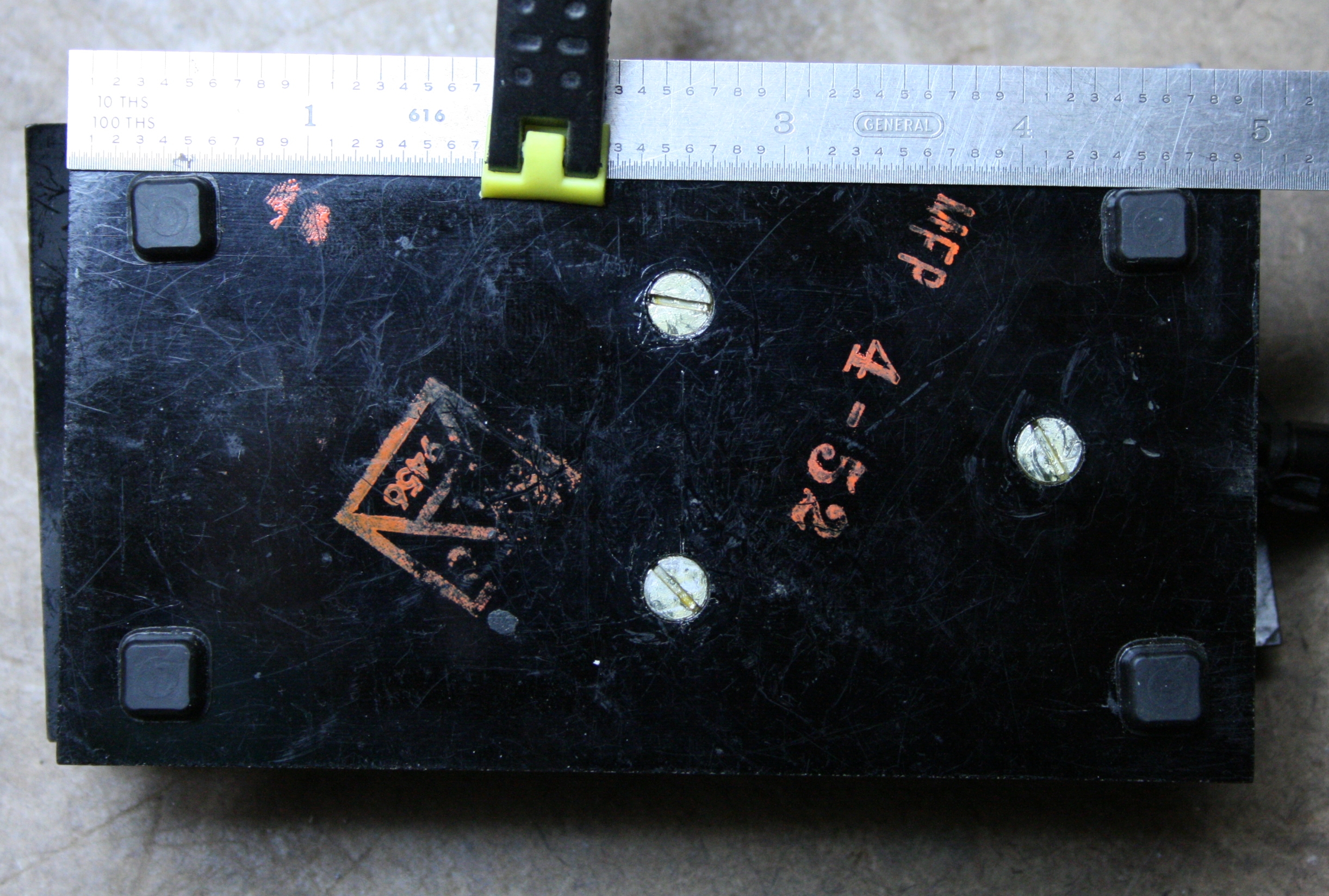

Here's the bottom of a J-47.  That's a J-37 on a base.  On the J-37 the
holes in it's frame are tapped 6-32.

Get out your dividers.



Regards,
Al

On 3/11/2014 10:52 PM, Thomas Cook wrote:
> Hello Al and "Z",
> I talked to another ham and he informed me mike has a J-37, not a J-38.
> I am sorry I wasted anyone's time.
> Dimensions Center to Center for J-37 Please?
>
> Thanks for putting up with me,
>
> Tom
>
>
>
