[MRCA] prc-74 help needed

[Al Klase]

Jeff,

Power enters the Power Supply from the rear, goes through a fuse, and
out to the switch on the front panel.  Then, back to the power supply.

You can disconnect these circuits via screw terminals on TB2 adjacent to
the PS to ring them out with your ohmmeter.

Schematics attached.  Sounds like a short in the switch circuit. Stuck
relay comes to mind, but work one step at a time.

Al

Al Klase – N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/

On 7/24/2014 3:39 PM, w1aea at myfairpoint.net wrote:
>
>    Hey Guys just got a PRC-74  seems to run all ok with only one glitch! power is on all the time  on/off/tune switch dosn't effect it?  wireing all wireing looks good and so Far I havn't been able to track down the reason for this anyone have any Ideas? or has anyone run into this before,?   Thanks   jeff W1AEA
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

-------------- next part --------------
A non-text attachment was scrubbed...

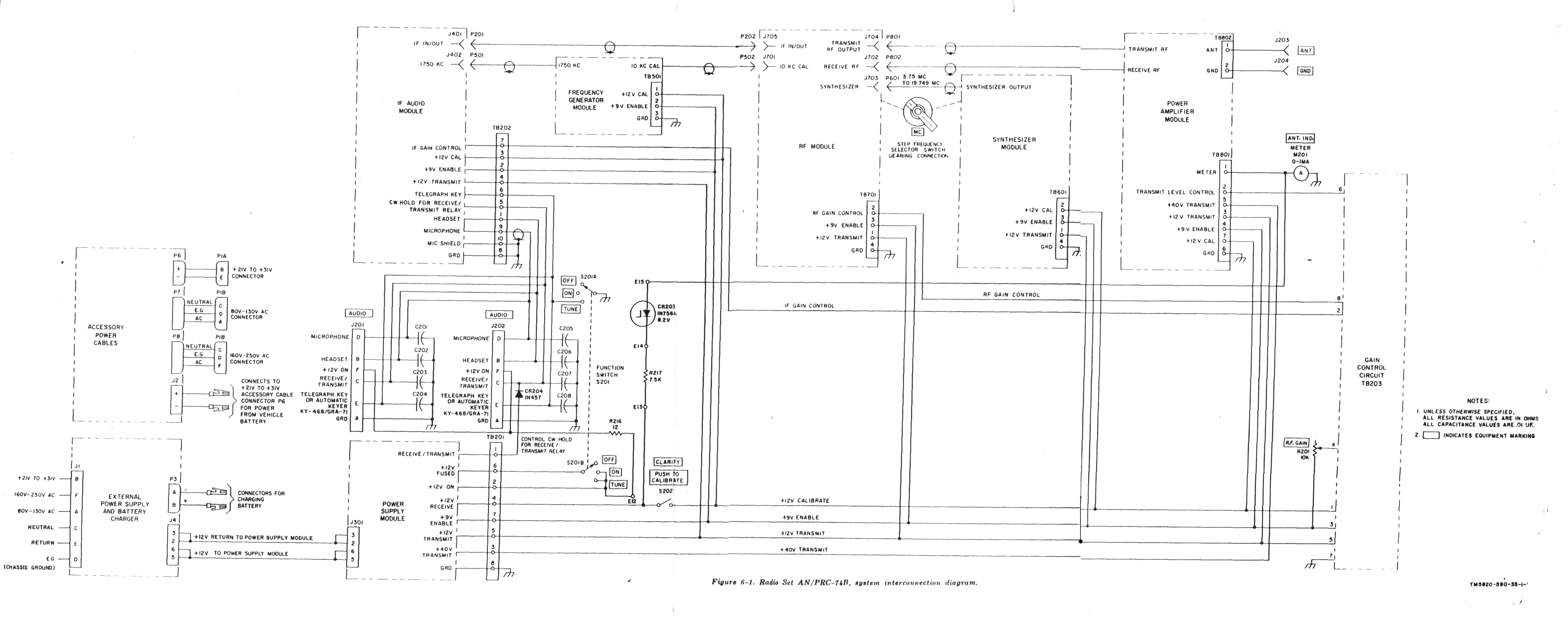

Name: Fig 6-1 Interconnect.png
Type: image/png
Size: 913354 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/mrca/attachments/20140724/796595db/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...

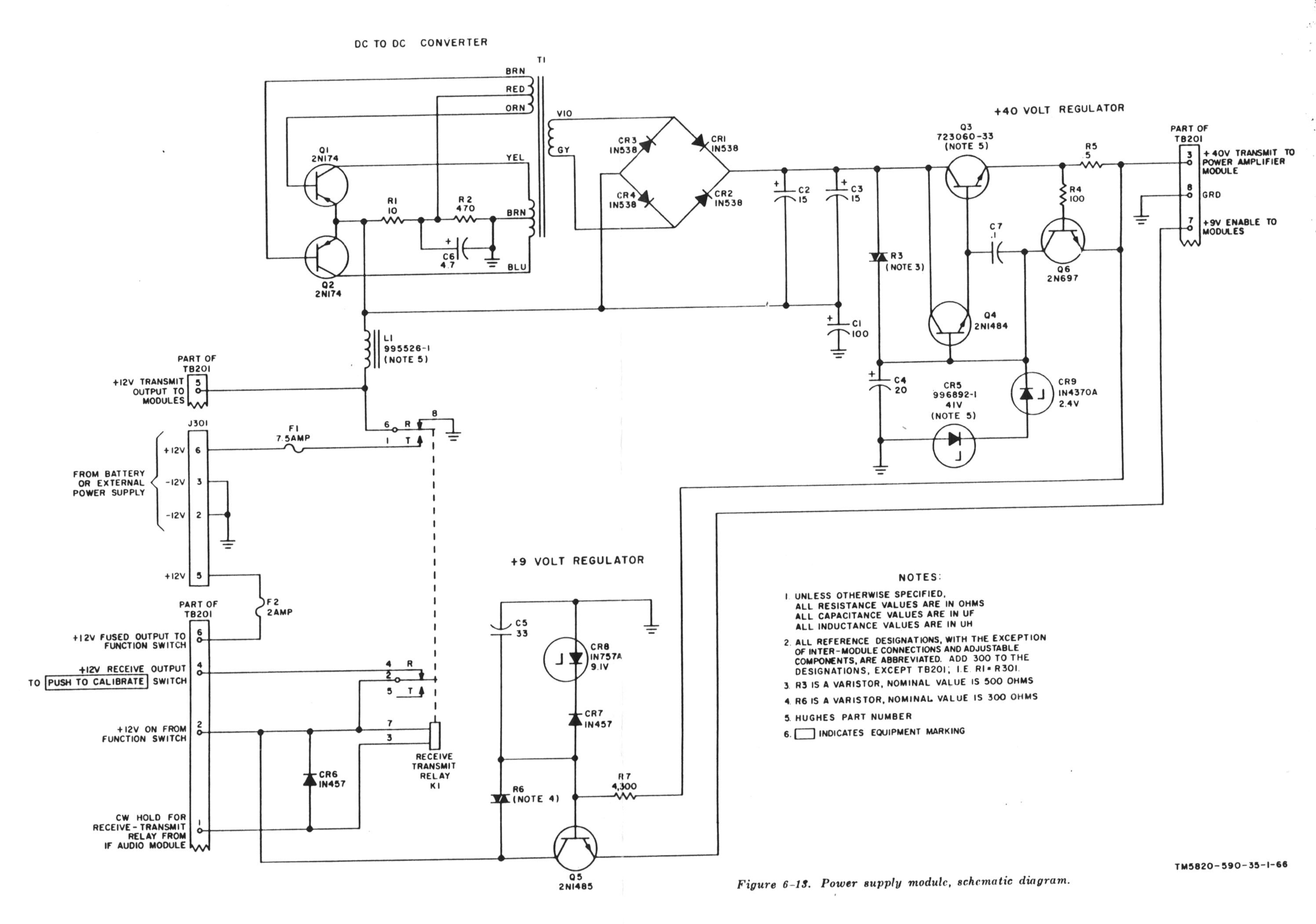

Name: Fig 6-13 Power Supply.png
