[MRCA] BC-375 / BC-348 liason setup

[mbdittmar at comcast.net]

Attached are some pics of the BC-375 / BC-348 liason setup with dynamotors, etc I've been working on recently. It is set up to run as original as possible. Tom KD0VBR and myself had a nice CW and then AM QSO on 1900 khz last sunday afternoon with both of us using nearly identical setups. Communication quality was excellent. Of course we are only about 15 miles apart. Headphones required to block out the noise of the dynamotors.

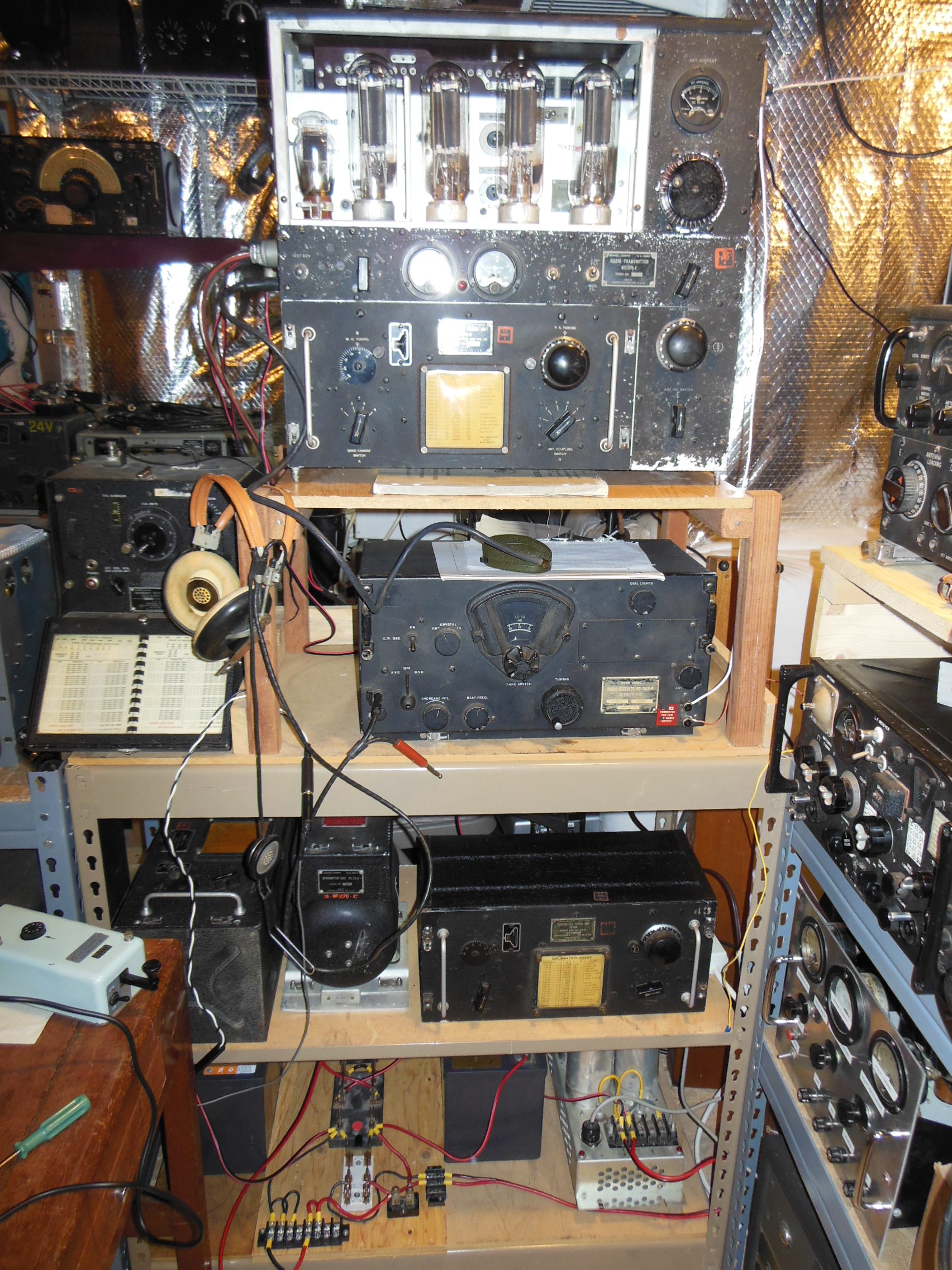

Batteries and 28V 30 A power supply on bottom shelf, dynamotor and spare TUs on second shelf, BC-348 receiver and BC-221 freq meter on 3rd shelf, and top shelf ( with the 4 exposed 211s ) is of course the BC-375. Getting about 2 A of antenna current into a directly fed inverted L about 65 feet total length....about 200 W input ( ~1000 V at 200 ma ) power.

73
Mark AB0CW
