Breck, very interesting idea. I hadn't thought of insulating using nylon. And excellent picture! How did you make that? Mast is aluminum. It is an 8m racal push-up mast.


73 Eugene W2HX


From: mrca-bounces at mailman.qth.net [mailto:mrca-bounces at mailman.qth.net] On Behalf Of B. Smith
Sent: Sunday, October 13, 2013 5:56 PM
To: mrca at mailman.qth.net
Subject: [MRCA] static discharge reel for antenna



Eugene
First I would not take a chance on having that lumped impedance secretly hiding inside the reel, too unpredictable. The tuner might even recognize that as the antenna and ignore the wire.  :-)

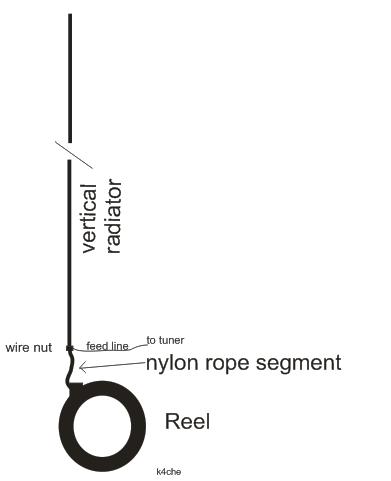

I would take a wire the length of the pole, cut off the rest and do a nautical splice with a couple of feet of nylon rope.  The nylon rope is now your insulator.  Use a standard wire nut to hook the feed line to the vertical wire.  The whole thing can wind up inside the reel. Remove the wire nut prior to winding up the wire.   :-)
 See attch.
You did not mention what material the mast is made of.

Z

[cid:image001.jpg at 01CEC83E.DC5998F0]

On QUESTION: The second type of reel (with insulated cable) seems to come in 50-foot lengths. This means that about 25 feet will remain on the reel in a loop about 3-4 inches in diameter. I am worried that this will create an RF choke and reduce the performance of the radiator. Or, it might make some kind of base loading, I really don't know. Of course an alternative would be to cut down the cable to 25-26 feet or so, but I was wondering if anyone had thoughts about the effect of having this 25' coiled before the vertical radiator. Thanks for the bandwidth of a very wide band email!   73 Eugene W2HX   ______________________________________________________________ MRCA mailing list Home: http://mailman.qth.net/mailman/listinfo/mrca Help: http://mailman.qth.net/mmfaq.htm Post: mailto:MRCA at mailman.qth.net This list hosted by: http://www.qsl.net Please help support this email list: http://www.qsl.net/donate.html
