I have constructed several power supplies for the T-195  that run off of
the AC mains  .   .   . In the event you can not find a "solid state"
supply, you could use the existing low voltage section and construct a
HV power supply.  But first you have to confirm that D601 the low
voltage dynamotor is installed. And you need 28VDC.
D601  supplies  +250 volts, -45 volts(bias) and the elusive 115VA 400
cycles for the tuning of the set.  -    -   -  IF, repeat IF D601  is
installed most of the work is done in order to get the set on the air.

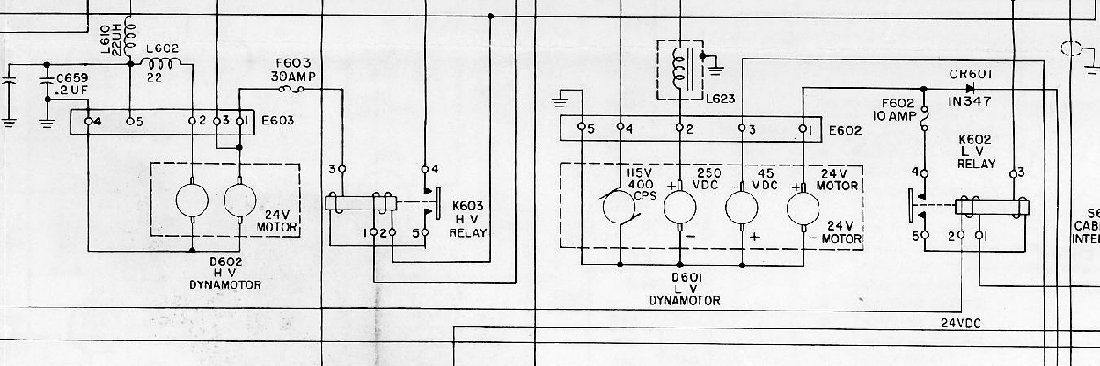

attch is a schematic of the power supply terminal section.

Z













On 5/17/2013 10:26 PM, Robert Newberry wrote:
> I picked up a t-195, I was told this person got it from someone who
> removed the high voltage and low voltage supply. They intended to do a
> a solid state supply but it was never completed. As I understand the
> low voltage supply is installed and the high voltage needs to be
> acquired and installed.
>
> 1. I need to find a manual.
> 2. How the heck do I identify what a solid state high voltage supply
> looks like and a dyno motor...I'm guessing the dyno has moving parts.
> 3. Same question a 2 but for low voltage.
> 4. Anyone know where SS supplies can be found?
>
> Everything else looks to be there and the guy said everything else is
> fine, my guess is the only way to find out is get the power supply
> work done to test it.
>
> The goal is to eventually connect this to my r-392 to make a grc-19,
> so I'll eventually need more cabling.
>
> Thank you
>
>
