Hello Ray,

It was good to hear you on the net the other day.

The fundamental mode of operation on M&S is NVIS.  So, you want a strong
vertical component to your radiated signal.  That means a horizontal
antenna.  An 85-foot dipole is probably the easiest place to start.
Even an inverted-V with the center up 15 feet and the ends almost on the
ground will get the job done.

As you discovered, a vertical can be heard, but is at a real
disadvantage especially for the first 100-150 miles.  As Alex pointed
out, the -6 dB from 100 watts to 25 watts is likely to put you down in
the grass.

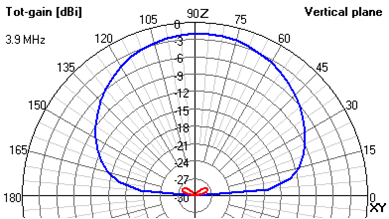

One of my favorite drawings:



This was a horizontal dipole versus a 10-ft whip, but even if it's a
1/4-wave and radials getting you another 20dB, it still sucks for NVIS.

Personally, I use a 100-ft doublet fed with 300-ohm twin lead.  This
requires a tuner, but it will go almost anywhere.  I don't have room for
extensive antennas here in Jersey City.

Al




On 1/29/2013 10:22 AM, Ray Fantini wrote:
>
> Wanted to get something up and working for the M&S Net, got lots of
> radios so that's not an issue but the problem appears to be antennas.
> Over the last couple weeks I have discovered a couple things. First,
> of all the low frequency antennas I have installed at the QTH the only
> good antenna I have right now is a half wave inverted V cut for 160.
> My other two dipoles cut for 40 and 20 meters both have coax full of
> water. Who would have thought that if you have the ends open where
> they connect to the center sections that water would get in and
> eventually come out the end of the cable in the shack, I was
> surprised! Second, nothing I have appears to resonate at 5.3 Mc and
> antenna tuners are harder to just throw together than first thought.
> Third, I know nothing about antennas and propagation.  can tell you
> all about VHF and microwave path analysis but this HF stuff is all
> voodoo, when everyone starts all the arguments about NVIS and the like
> my eyes just glaze over.  So with all this in mind this last weekend I
> strung up a vertical wire insulated  one foot out from the top of the
> tower down to an insulated support about thirty feet to a box with a
> taped coil and capacitor in it tuned for minimum reflected power back
> at the radio. I think this would be a vertical antenna, although do
> not know if it's affected by being that close to the face of the
> tower. The problem is general consensus was that just about everyone
> who was able to copy me says my signal sucks, so now it's time for
> some improvements on my end. First question: is a vertical antenna
> worth using? Can the poor performance be an issue on not having enough
> radials? Would there be an advantage to shunt feeding the antenna to
> the top of the tower? Or am I just wasting time working with a
> vertical in the first place? And that leads to the second question:
> would it be better to just throw together a dipole cut for that
> frequency and put that up? Or maybe the same antenna as a sloper or
> inverted V?
>
> RF
>
>
>
> ______________________________________________________________
> MRCA mailing list
> Home: http://mailman.qth.net/mailman/listinfo/mrca
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:MRCA at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
>
>
> No virus found in this message.
> Checked by AVG - www.avg.com <http://www.avg.com>
> Version: 10.0.1430 / Virus Database: 2639/5565 - Release Date: 01/29/13
>

--
Al Klase - N3FRQ
Jersey City, NJ
http://www.skywaves.ar88.net/
