[MRCA] PRC-71/PRC-72

Scott Johnson scottjohnson1 at cox.net
Wed Dec 4 22:55:18 EST 2013

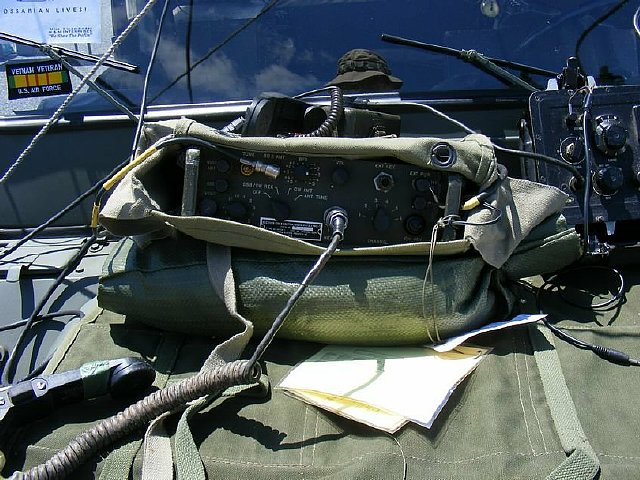

My PRC-72 is complete, and seems to be a more compact and lighter
implementation than the PRC-71.  I have not crystalled up the FM or VHF AM
set, but the UHF set works (has crystals for 6 freqs., including 243.0), and
the HF set works well.  I rebuilt the battery packs with new Nicad cells,
which the charger charges fine.  Mine also has a vehicular adapter and audio
interface.



Scott W7SVj



From: mrca-bounces at mailman.qth.net [mailto:mrca-bounces at mailman.qth.net] On
Behalf Of Alan Tasker
Sent: Wednesday, December 04, 2013 8:32 PM
To: mrca at mailman.qth.net
Subject: Re: [MRCA] PRC-71/PRC-72



Both the PRC-71 (Sylvania) and the PRC-72 (Bendix) were mid 60's attempts by
the Service to make a 4 band communication device (via 4 independent radios
strapped together or separated) to cover the 4 widely spaced bands needed by
an FAC (forward air controller). Bands were roughly 4-20 (2-12) MHZ SSB/CW,
30-50 FM, 110-140 AM, and 240-350 AM. 7 of the 8 radios developed were
channelized, while only the Bendix HF set was synthesized (2-12 MHz in 1 kHz
steps). Set was bulky and heavy. I do not think many were made.



_ _ _
Alan WA1NYR

On 12/4/2013 8:11 PM, B. Smith wrote:

Just curious  does  anyone other than myself have an operational PRC-71?
Z
