[Milsurplus] Milsurplus Digest, Vol 268, Issue 11

[Michael Harmon]

You probably have a TS-164 aircraft unit designed to be rack mounted next to the  BC-348 in the radio space of a B-29.  I’ve had several of these housings, and I prefer them, because I always add a 117V power supply.
Just slap some rubber feet on the bottom rails, and you have a very simple and accurate meter.  They are built to be dropped into a combat zone and are indestructible!  All frequency-determining components are either fixed (like the beeswax-coated coils) or machined from a big chunk of brass.
As long as you have the calibration book with the matching serial number (an absolute necessity, BTW), they will work indefinitely!
73,Mike, WB0LDJ

Sent from AT&T Yahoo Mail for iPhone


On Thursday, August 6, 2026, 23:06, milsurplus-request at mailman.qth.net wrote:

Send Milsurplus mailing list submissions to
    milsurplus at mailman.qth.net

To subscribe or unsubscribe via the World Wide Web, visit
    http://mailman.qth.net/mailman/listinfo/milsurplus
or, via email, send a message with subject or body 'help' to
    milsurplus-request at mailman.qth.net

You can reach the person managing the list at
    milsurplus-owner at mailman.qth.net

When replying, please edit your Subject line so it is more specific
than "Re: Contents of Milsurplus digest..."


Today's Topics:

  1. BC-221 on Shock Mount (Mark K3MSB)


----------------------------------------------------------------------

Message: 1
Date: Fri, 7 Aug 2026 00:05:13 -0400
From: Mark K3MSB <mark.k3msb at gmail.com>
To: ARC5 <arc5 at mailman.qth.net>, List Milsurplus
    <milsurplus at mailman.qth.net>,     "Military Radio Collectors Association
    (mrca at mailman.qth.net)"    <mrca at mailman.qth.net>
Subject: [Milsurplus] BC-221 on Shock Mount
Message-ID:
    <CABdVoaC8PejG8XgQfK1oN6krHdQj1VbL8n4ftH19PbNG6Dg8yA at mail.gmail.com>
Content-Type: text/plain; charset="utf-8"

Hi Everyone

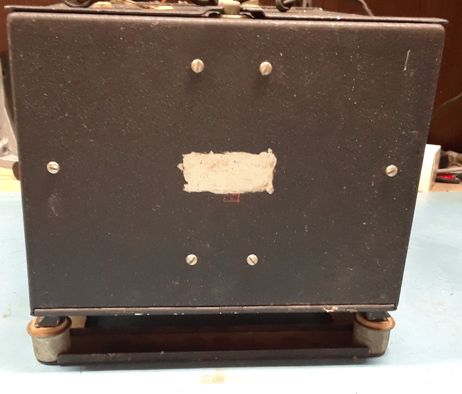

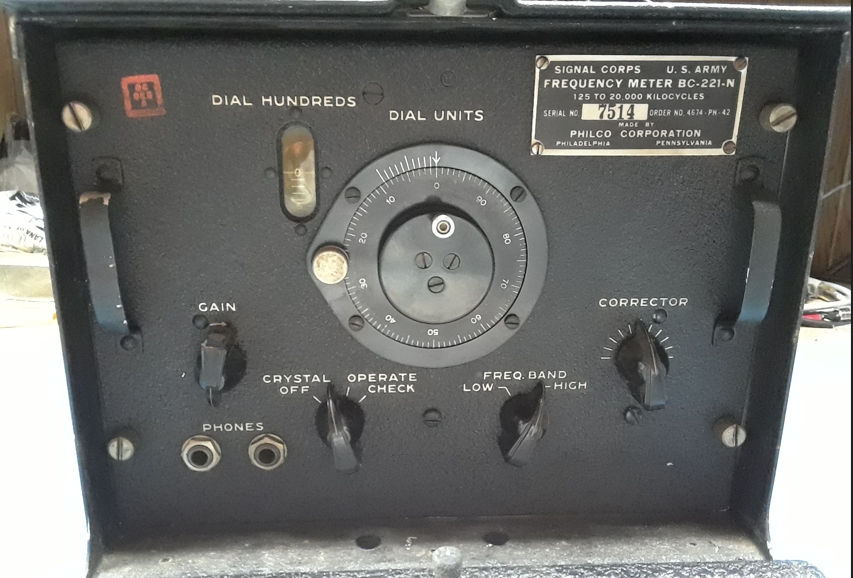

I have a BC-221N that is not in the typical metal case for portable use.

Rather, it's on a shock mount.


[image: image.png]
[image: image.png]

I've not encountered one like this before.

I know various bomber aircraft had a BC-221 (portable unit) stored on
board,  and I'm interested in learning when this type of mounted unit was
used instead.

I didn't see anything in TM11-300.

73 Mark K3MSB
