[Milsurplus] [spam] Behlman AC power source?

[Michael Hanz]

Behlman has been the Lexus of variable frequency power sources ever
since the 1960s.  The 25-C has a power rating of 250 V-A but are *very*
conservatively rated, able to put out 150% of rated load continuously if
you can tolerate more harmonic distortion in your load.  The C models
are were made in the 1970s and 80's IIRC, eventually replaced by
basically the same thing but with more modern power transistors and a
digital meter.  I still have a 100-C that has a single 400Hz frequency
plug-in, and a 50-C with a 45-2000Hz variable oscillator.  I've used
them for twenty years working on my equipment at aafradio.org.   I
bought both of them on ebay for parts but found that they were easy to

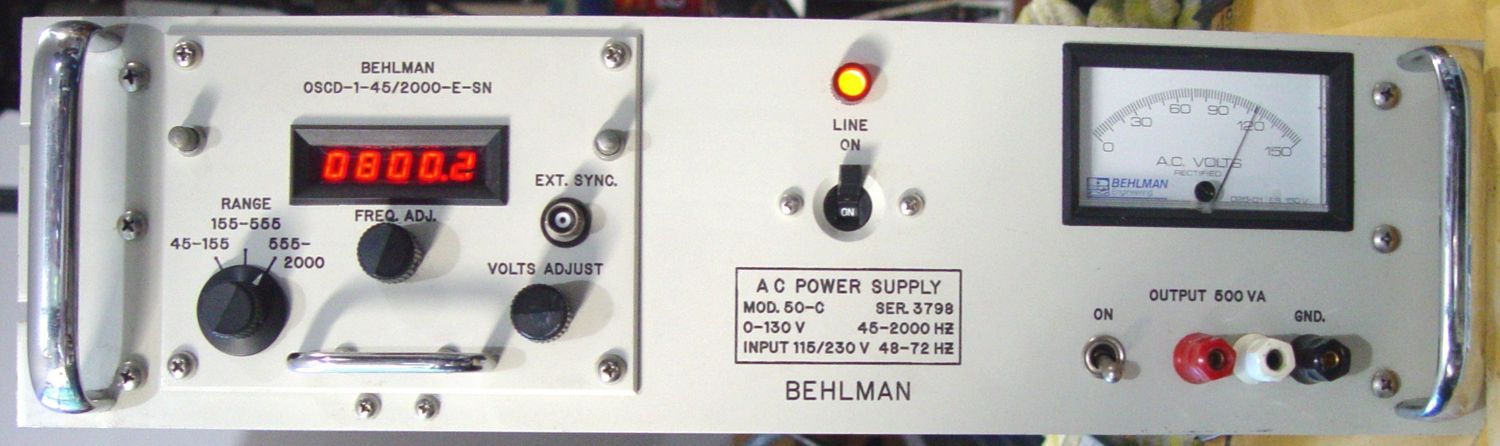

repair.  The 50-C "parts unit" is pictured below, and I primarily use it
for the WW2 Navy 800Hz equipment.  I'm partial to the C models because
they use an analog voltmeter.  They are modular in design so that with
additional power transistor banks they can get up to quite high current
outputs.  I have a some spare parts for the C model if you need any.

Mike  KC4TOS

On 4/9/2026 6:18 PM, Gary Hitchner via Milsurplus wrote:
>
> Is anyone familiar with Behlman AC power sources?   There is a Behlman
> Model 25-C on Facebook marketplace.
>
> I don’t see a manual available for this. Would this be a good 400 Hz
> power source for WWII avionics?  Looks like the AC output voltage is
> adjustable.
>
> Gary
>
> WA2OMY
>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20260409/36427ccf/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 50C Inverter 1a.jpg
Type: image/jpeg
Size: 106619 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20260409/36427ccf/attachment-0001.jpg>
