[Milsurplus] MC-4F1

[JOHN MCCARTY]

 Dennis;
   Working from memory. The common connector that Charlie pictured is the one you'll find in ham junk boxes. The TBYconnector is almost the same except the "sex" is backwards. On the TBY the male pins are on the chassis and the femalepins are on the cord. I have had some luck swapping the internal parts to make it work with the TBY. You may have to drilla new set screw hole in the cord connector, which is the one you want. Some filling maybe involved.
Again, working from memory.
73

John n9hrt
    On Wednesday, August 27, 2025 at 08:17:06 AM CDT, Charlie L. <mjcal79 at gmail.com> wrote:

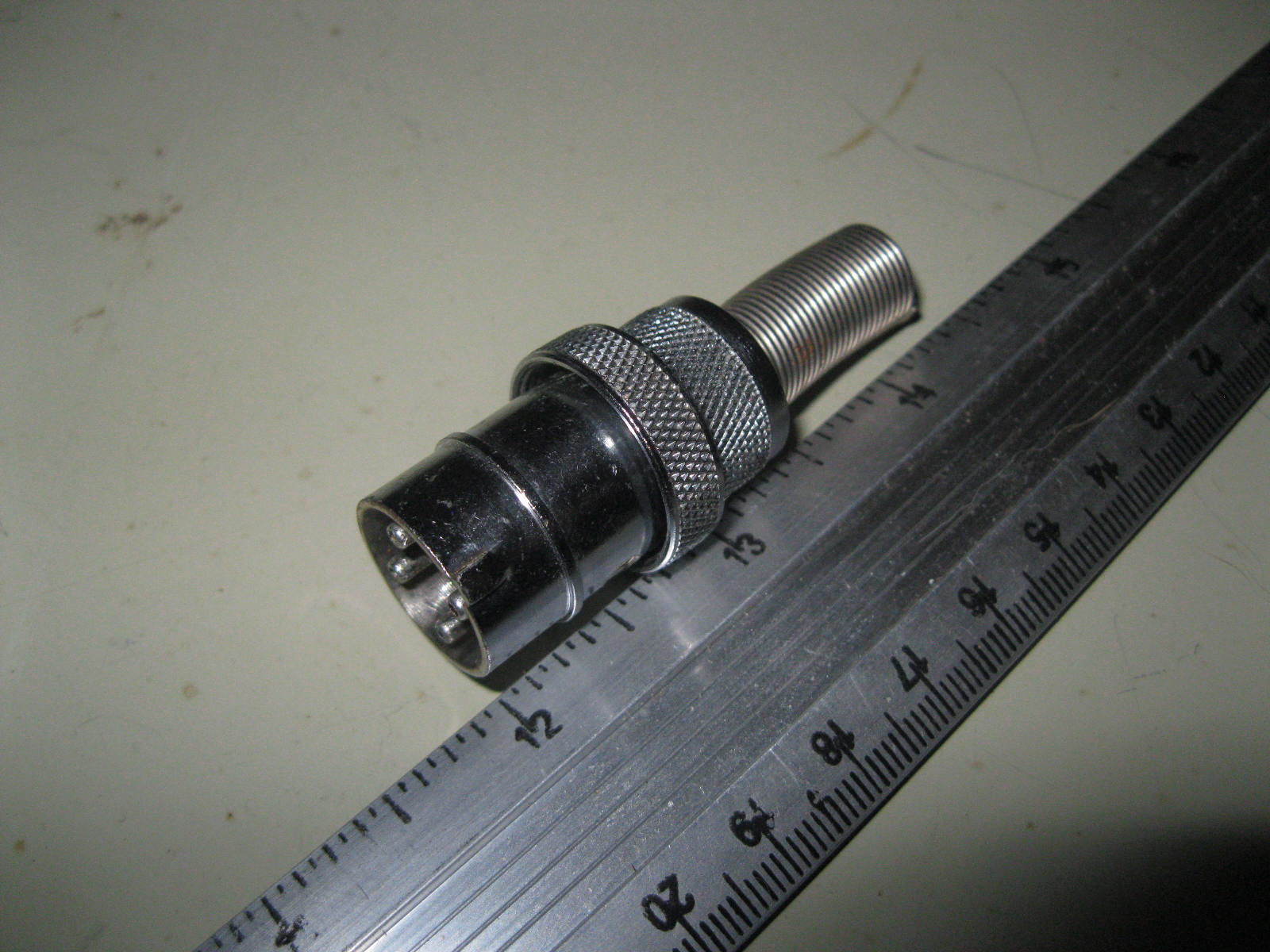

 From the drawing that looks very much like the standard Amphenol mic connector.  Any chance it is the same one?  Pic attached.
Charlie in NC
