The AN/APA-38 was more associated with the APR-1 and earlier APR-4
series, Ray - thought they all worked with the 30MHz output of the

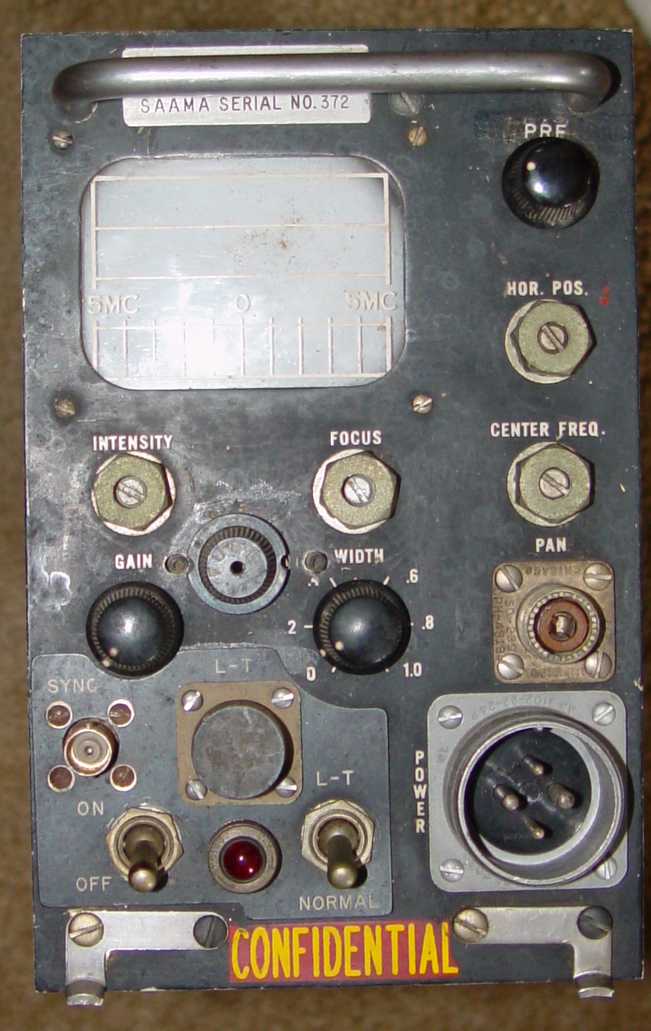

receivers.  The mate to the APR-4Y was also the AN/ALA-2 (and AN/ALA-10,
like the one below).  These last two were identical except for the
addition of a small "look-through" module that allowed seeing through
momentary gaps in the associated jamming transmitter to see if the enemy
radar was still pinging.  They all used 400Hz power.

- Mike


On 9/27/2023 3:50 PM, Ray Fantini wrote:
>
> Is doing something completely pointless sane? I was recently so
> impressed by some of the aircraft radio dioramas at Gilbert that I
> have decided that I would like to try to attempt one myself. First let
> me start by saying that one of the tools I use at work almost all the
> time is a spectrum analyzer, everyone knows that much has been rolled
> out in the past years from companies like Rigol with a line of
> spectrum analyzers with internal tracking generators for under one
> thousand dollars or the little Nano VNA vector network analyzers so
> today anyone can have a spectrum analyzer or VNA that would have
> easily cost five or ten grand ten years ago, and brand name analyzers
> like the HP ESA family and not out of the range of most people, but I
> want to take a giant leap backwards and build up my EW/ECM warfare
> “primitive” analyzer by kitting out my APR-4Y with a AN/APA-38
> panadaptor. The old APR-1 and 4 all worked with a larger display, the
> APA-10 but never warmed to those old receivers being the 4Y had just
> one head for covering all four bands and had enough sensitivity to
> almost be called a receiver along with an added FM demodulator.I have
> a APR-4Y with head and rack but lack the AN/APA-38 scope and think if
> I can come up with one that would be the good basis for a complete
> search receiver from the old days, a primitive spectrum analyzer.
>
> So if anyone has one that can be talked out of please let me know.
>
> Have already seen where a ARC-21 has shown up so there must still be
> more unicorns out there.
>
> Ray F/KA3EKH
>
