[Milsurplus] R-45/ARR-7 Power Supply?

[W2HX]

Hello friends.

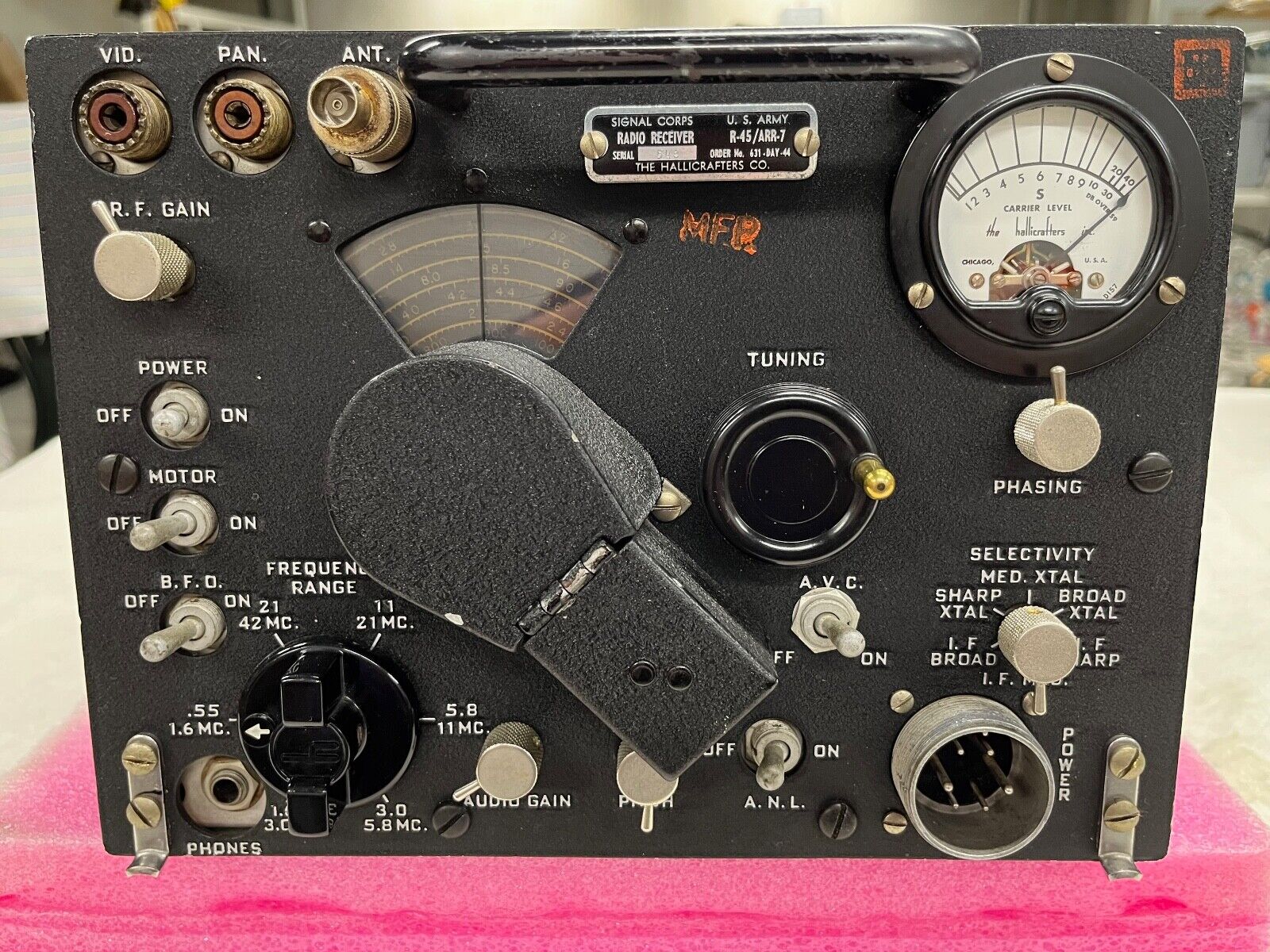

I just acquired a nice ARR-7 that was electrically restored and aligned by a very competent fellow (pic attached). He made a 60 Hz AC-DC power supply for it, but it was crazy expensive. So here goes. The specs I need are:
2,700 VDC @ 135 mA
25 VDC @ 350 mA (for scanning motor, which is half the fun!)
6.3 VDC @ 4.0 A

Does anyone know if there is some existing power supply from some other piece of equipment that might have similar specs that I could begin hunting for? I know there is the PP-32/AR but my understanding is that this is a 400 Hz unit (380 Hz to 1,000 Hz).

If there isn't another commonly available PS that would supply these, I may have to resort to building one. On ebay there are transformers with multiple secondaries but searching for such a beast is very difficult. Any advice on searching for a multiple secondary transformer? And of course, should all else fail, I could make a PS with 3 transformers if necessary.

Any suggestions welcome.


73 Eugene W2HX
Subscribe to my Youtube Channel: https://www.youtube.com/@w2hx/videos
