[Milsurplus] Hallicrafters TR-9 power connector ?

[Tom B]

My TR9 has a 2 pin connector.  Looks like the same power connector used
on other Hallicrafters village radios.  I don't know what the part
number is but it is fairly common.

I don't know if my first message went through.  Photo attached.


Tom
N3AJA

On 3/1/2023 11:33 AM, Robert Nickels wrote:
> On 2/28/2023 11:27 PM, Hubert Miller wrote:
>> does anyone here know a name and or part number for a female match to
>> this power
>>
>> connector on the front of the Hallicrafters TR-9 ?
>>
> Hue, I see 3 pins in that image, correct?    If so, I'd say it's not
> original, as the photo in the manual shows a 2 pin connector of the
> Amphenol 80 series that were commonly used as mic connectors by
> Heathkit and others.   However to avoid having power on exposed pins,
> the male is on the radio, meaning the cable needs to have the female
> version, which is less common.
>
> On my TR-9 someone resolved this by substituting the one-pin version
> of the 80 series with the outer ring providing the ground contact.
> Not a problem given the low current requirement.    I didn't get the
> cable with it, nor the metal top cover (if anyone has a spare lying
> around),  so I don't know what the original cable looked like.   Neat
> little rig!
>
> 73, Bob W9RAN
>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20230301/6a7600b9/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

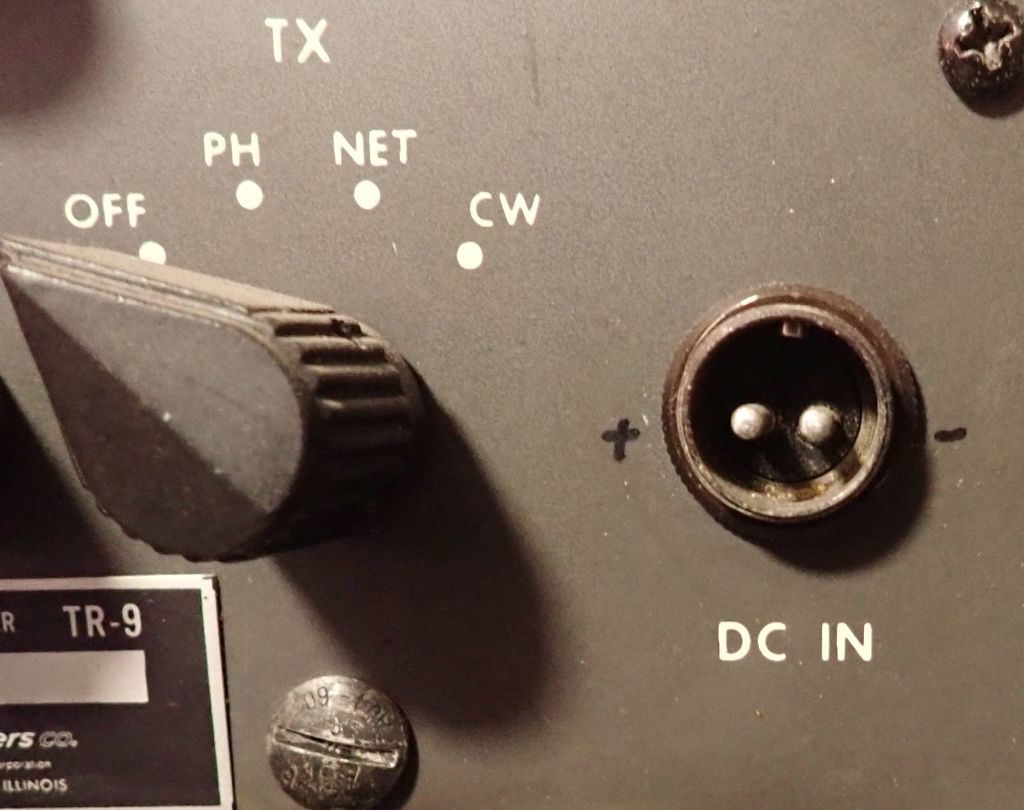

Name: TR9 power connector.jpg
