[Milsurplus] Ideas on Japanese circuit ?

[Tom B]

Hi Ray,

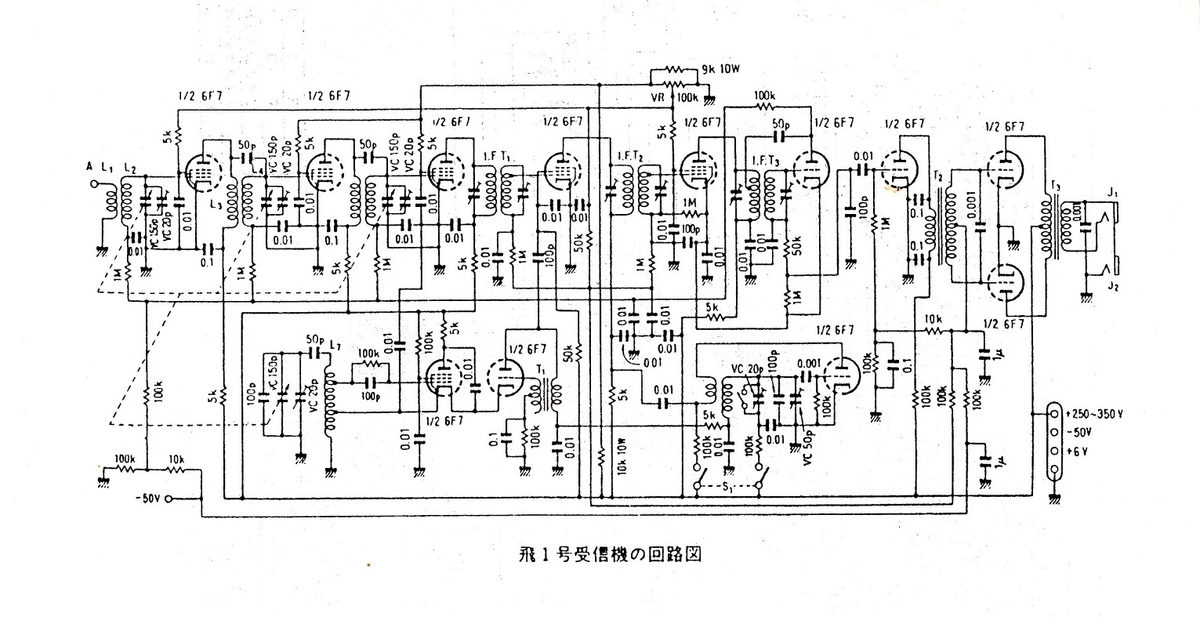

Here is a simplified version of the schematic.


Tom



On 7/10/2023 9:49 PM, Ray Fantini wrote:
>
> Looked at that schematic for a bit and it can drive you up the wall
> beyond a point, correct me if I am wrong but it looks like there are
> two RF stages followed by a mixer and separate HFO then two stages of
> IF and what I would suspect a grid leak detector in the final IF tube.
> The mind blowing part is the mixer tube also has a triode used as a
> audio driver that feeds a push pull audio output pair of triodes with
> one in each RF amplifier all transformer couppled, cannot explain the
> two remaining triodes in the first IF and HFO, one has to be a BFO
> oscillator but no clue witch and what the other is doing?
>
> Ray F/KA3EKH
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20230710/d75ef742/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 99-1 simplified schematic.jpg
Type: image/jpeg
Size: 372495 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20230710/d75ef742/attachment-0001.jpg>
