[Milsurplus] T-17 Rebuild

[B. Smith]

        Several have asked about replacing the carbon microphone
element  in the T-17. I usually use a standard telephone button and trim
it to fit inside the T-17 housing by removing the outer frame. The
button then fits inside the T-17 housing and the outer cover with the
small center holes can be fitted. (Drill additional center holes if
necessary to improve voice response) Other have taken a T-17 housing and
machined the interior  to  enlarge it to accommodate the larger button
but removing the outer frame  with a small file is faster and easier.
There is no compassion between the audio output level between the
original T-17 cartridge which has aged and the telephone button, the

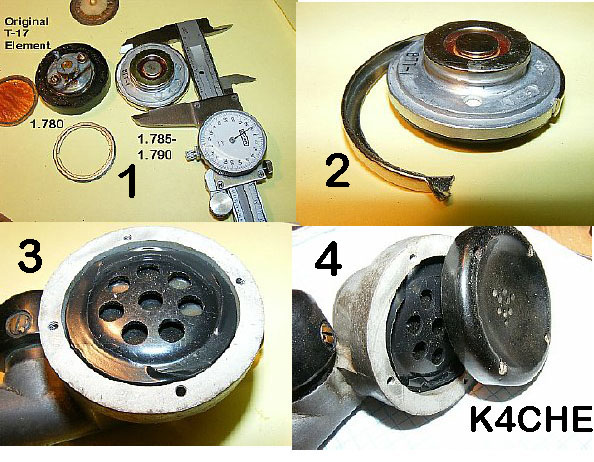

button  is loud and very crisp. See attached photo.
          Info on the T-17 including the button mod,capacitor info,
rewiring etc can be found at  the link below. In addition there is a
chart supplied by WA5CAB on the different  contract dates and
manufacturers  of which  I've added a couple of entries. I will add
additional info to the chart if I receive the information.
k4che
http://k4che.com/T-17/T-17.htm
