[Milsurplus] BC-348 Power Supply/Biasing

Sat Jan 1 20:31:27 EST 2022

AlYour schematic is from AN_08-10-209 which covers the E, M, O, P and S versions,  The question was about a BC-348Q which is covered by AN_08-10-112.  Two different radios, one uses double ended and the other single ended tubes IIRC.Best wishes for the new year,Jim

Too much agreement kills a chat.  E. Cleaver

-----Original Message-----
From: Al Klase <ark at ar88.net>
To: milsurplus at mailman.qth.net
Sent: Sat, Jan 1, 2022 7:09 pm
Subject: Re: [Milsurplus] BC-348 Power Supply/Biasing

 Jim

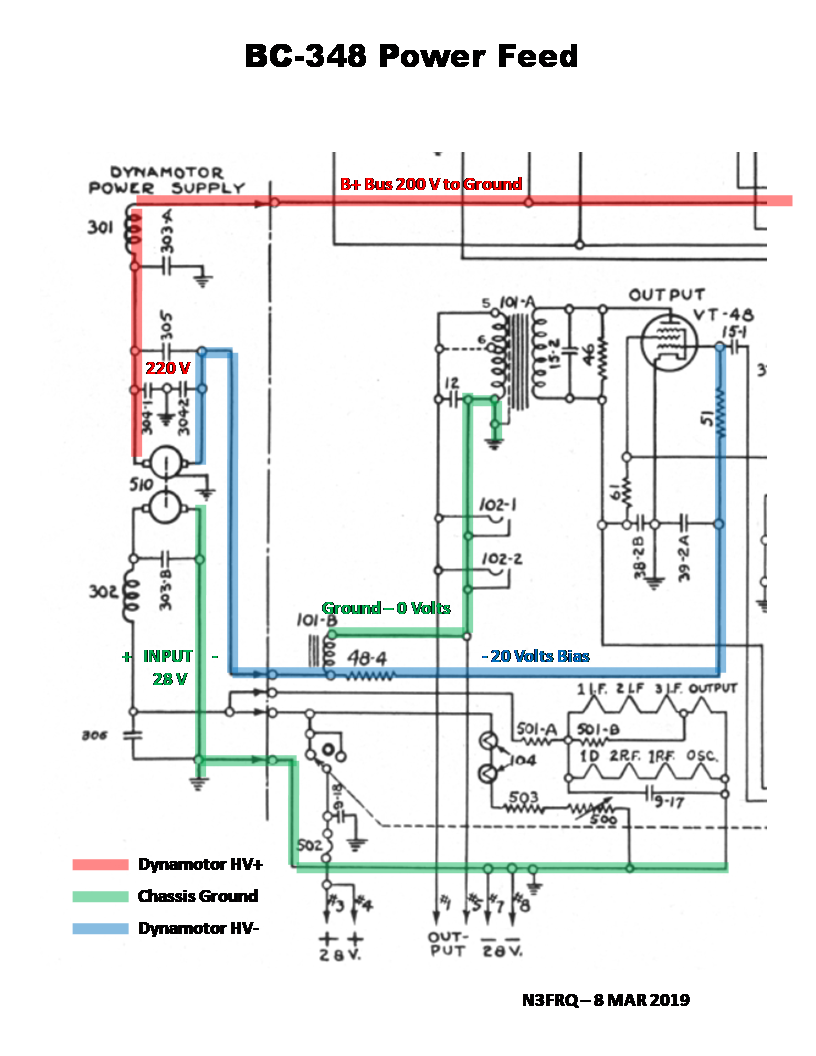

 I'm not so sure about that.  B- "comes up to chassis ground" through inductor 101-B which is part of the output transformer assembly.

 I hope this diagram comes through.  Some of these lists are living in the 20th century re: attachments.

 73,
 Al

 On 1/1/2022 7:16 PM, Jim Whartenby via Milsurplus wrote:

   Mike Agreed, B- current flows through line item 108-2, a 50 ohm resistor to chassis ground.  It can be found on the schematic just to the right and a little above the dynamotor.  This resistor develops about 50 ohms X .06 amp = 3 volts bias for the audio PA.  245 volts is the rating of the hallicrafters power supply.  AN08-10-112 calls for 224 volts @ 0.7 amp from the dynamotor but that current has to be a misprint, should be 70 mA .
  245 volts is about 9% high and should not be a problem, IMHO.  Most voltage readings will appear high anyway since most VOMs of that period were 1kohm/volt and loaded the circuit which resulted in a lower then actual reading.  If you meter reading is in the ballpark, good enough!  Just about all of the resistors are +/- 10% so if you are within that tolerance, all is good.
  Have fun with the radio, Jim

    Too much agreement kills a chat.  E. Cleaver

 -----Original Message-----
 From: hwhall at compuserve.com
 To: mharmon at att.net <mharmon at att.net>; milsurplus at mailman.qth.net <milsurplus at mailman.qth.net>
 Sent: Sat, Jan 1, 2022 5:00 pm
 Subject: Re: [Milsurplus] BC-348 Power Supply/Biasing

     The separated plus & minus HV is correct.  A "chassis ground" is established between resistances in the radio's circuits.  Something similar is often seen in solidstate gear that requires plus & minus DC rails & a ground.
  I'm working on a very pretty BC-348-Q right now. Has a DIY HV supply in place of the dyno. Making sure all is okay before I try to light it up. 245 VDC may be a little too high.  I'm wanting to see about running this one at a lower voltage so maybe it can play without a recapping. It's too near pristine for me to want to do that right now.  I've seen online talk of running as low as 150 VDC & working okay.

 Wayne WB4OGM

  -----Original Message-----
 From: Michael D. Harmon <mharmon at att.net>
 To: milsurplus at mailman.qth.net
 Sent: Sat, Jan 1, 2022 3:46 pm
 Subject: [Milsurplus] BC-348 Power Supply/Biasing

  I recently picked up a BC-348Q which I would like to get working.  It
  had no dynamotor or power supply, but everything else was there.
  Actually, it's in pretty good shape for an 80-year old radio!  All the
  tubes (except for one 6SK7) even tested OK on my TV-7.  There were a lot
  of loose wires, but I believe that I have them all identified now.  The
  filaments had already been rewired for 6.3V operation.

  I scrounged up a surplus transformer and built a power supply and
  mounted it on a piece of heavy-gauge aluminum cut to fit the original
  dynamotor opening.  With a 4000-ohm 20-watt resistor (245V @ 60 mA) on
  the output, the supply puts out 245V.  I have used the drawing for the
  EP-298 Hallicrafters supply as a design model, and the plate supply is
  isolated from chassis ground - no chassis connections at all.

  I'm obviously missing something here!  Where is the ground return?  If
  both the B+ and B- output connections on the power supply are isolated
  from ground, How is a voltage developed between either one and chassis
  ground???

  I've been dealing with this issue so long my brain is fried!  Please
  somebody help!

  Thanks!

  Mike Harmon, WB0LDJ

  mharmon at att dot net
