[Milsurplus] Module identification

[Jim Whartenby]

Good job, Mike!Jim

Too much agreement kills a chat.  E. Cleaver

-----Original Message-----
From: Michael Hanz <aaf-radio-1 at aafradio.org>
To: Glenn Little WB4UIV <glennmaillist at bellsouth.net>; milsurplus at mailman.qth.net <milsurplus at mailman.qth.net>
Sent: Wed, Nov 24, 2021 8:38 am
Subject: Re: [Milsurplus] Module identification

 Okay, finally got it - it's a BC-348-H model.  Note the skinny 90 coil and three terminal strip below:



 On 11/24/2021 8:25 AM, Michael Hanz wrote:


 Sure looks like BC-348 to me.  Manual photo is from the BC-348 - E, M, P manual.
 - Mike  KC4TOS




 On 11/23/2021 10:26 PM, Glenn Little WB4UIV wrote:

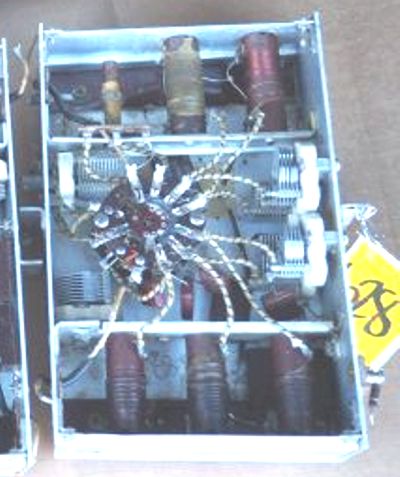

Can anyone tell me what radio these RF modules are from?
 Pictures are attached.


  ______________________________________________________________
Milsurplus mailing list
Home: http://mailman.qth.net/mailman/listinfo/milsurplus
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:Milsurplus at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
 --
Michael Hanz - KC4TOS ______________________________________________________________
Milsurplus mailing list
Home: http://mailman.qth.net/mailman/listinfo/milsurplus
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:Milsurplus at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20211124/fa0f074c/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Antenna%20unit%203.jpg
Type: image/jpeg
Size: 64581 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20211124/fa0f074c/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Antenna%20unit%201a.jpg
Type: image/jpeg
Size: 78241 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20211124/fa0f074c/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Antenna%20unit%202.jpg
Type: image/jpeg
Size: 62588 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/milsurplus/attachments/20211124/fa0f074c/attachment-0005.jpg>
