Hi Hue,
The RBM, not sure what’s above it. Interesting the RBM on the left, but an RBS on the right side. The box to the left of the mill is (probably, based on my recollection of the USS Ling) a LF/VLF coupler for the RAK. I only see one power supply for the RAK or RAL (on the video it’s on the right side between the RBS and the RAK , should have been two. And no power supplies for the RBM and RBS visible. Maybe below the desk.  Highly doubtful the Halli is part of the radio room complement. I wouldn’t be surprised if there was originally a shelf above the RAK/RAL just for the LM and it’s power supply and maybe an RBS or RAL supply, and yes they would have been bolted down. Don’t see the antenna patch panel either.

Howie WB2AWQ

Sent from Mail<https://go.microsoft.com/fwlink/?LinkId=550986> for Windows 10

From: Hubert Miller<mailto:Kargo_cult at msn.com>
Sent: Wednesday, February 17, 2021 4:07 PM
To: milsurplus at mailman.qth.net<mailto:milsurplus at mailman.qth.net>
Subject: [Milsurplus] Silversides SS-236 Radio Room

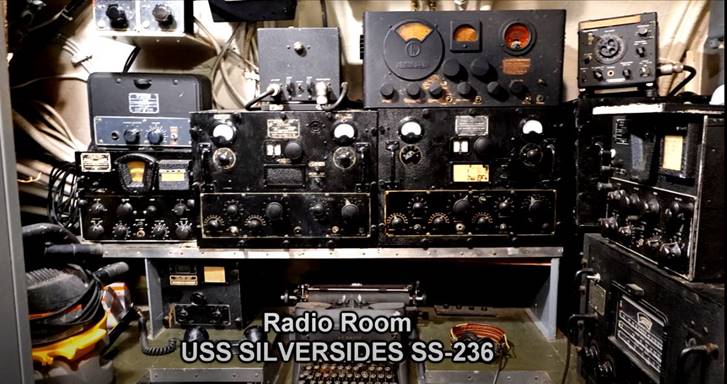

Here's a photo from youtube of radio room of USS Silversides SS-236.
https://www.youtube.com/watch?v=jcLfPaWap7U<https://na01.safelinks.protection.outlook.com/?url=https%3A%2F%2Fwww.youtube.com%2Fwatch%3Fv%3DjcLfPaWap7U&data=04%7C01%7C%7C77bf47b767684256943f08d8d3a13622%7C84df9e7fe9f640afb435aaaaaaaaaaaa%7C1%7C0%7C637492036635456910%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=Pp3XgKidvH7pUAG6DtayrJbB16cBxVs7kfTxDJp2%2FaM%3D&reserved=0>

What's above the left-hand RBM ?
What's to left of typewriter?
What model Hallicrafters and why was it there; is that realistic?
Were the on top items screw – fastened to the unit they're stacked on
to? They would have to be, right?
tnx, Hue Miller

[A picture containing cluttered, control panel  Description automatically generated]
